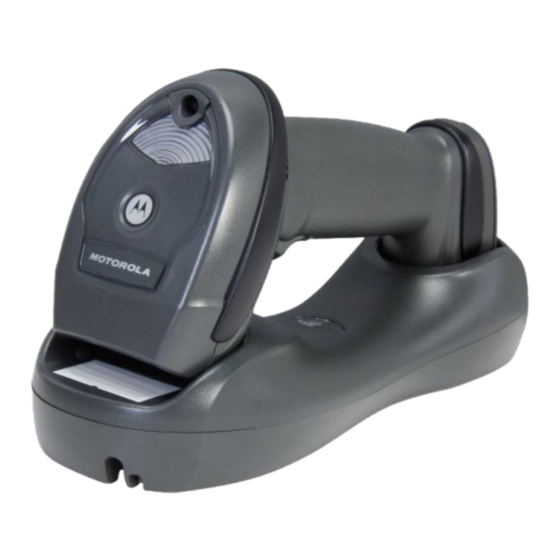

LI4278 LINEAR IMAGER
QUICK START GUIDE
See Product Reference Guide
http://www.motorola.com/li4278
for detailed information
STEP 1 - CRADLE CABLE CONNECTION
Power Port
Power
Alternate
Host Groove
Host Port
Alternate
Power Groove
Host Port
STEP 2 - CONNECT HOST INTERFACE
HOST INTERFACE
NOTE: Cables may vary depending on configuration
Cables may vary depending on configuration
Cables may vary depending on configuration
RS-232
OR
OR
USB
OR
IBM 46XX
OR
Keyboard Wedge
OR
Power supply
optional
STEP 4 - SCAN RADIO COMMUNICATIONS HOST TYPES
Radio Communications Host Types
Scan a bar code below to choose how the scanner connects to a remote device. Scan CRADLE HOST if connecting to the CR0078 cradle.
Refer to the Product Reference Guide for detailed information.
CRADLE HOST
HID PROFILE (SLAVE)
1
3
4
2
1
Scan Window
2
Scan Trigger
3
LED
4
Beeper
Power
Power
Connect to
Connect to
Connect to
appropriate host
appropriate host
appropriate host
Host
Power Port
Power Port
Power Port
Power
Important: Charge the linear imager scanner for 24 hours before the first full day of use.
STEP 3 - SET UP INTERFACE (
Scan Host Bar Codes
RS-232
Scan
ONE
of the bar codes below
STANDARD RS-232
NIXDORF RS-232 MODE B
ICL RS-232
FUJITSU RS-232
OPOS/JPOS
NIXDORF RS-232 MODE A
USB
Scan
of the bar codes below
ONE
HID KEYBOARD EMULATION
IBM HAND-HELD USB
SNAPI WITHOUT IMAGING
(For use with hands-free base only)
IBM 46XX
Scan
ONE
of the bar codes below
PORT 5B
PORT 9B
PORT 17
Keyboard Wedge
Scan bar code below
IBM PC/AT and IBM PC COMPATIBLE
SERIAL PORT PROFILE (SLAVE)
SERIAL PORT PROFILE (MASTER)
Cradles
Refer to the LI4278 Product Reference Guide, or the cradle
Refer to the LI4278 Product Reference Guide, or the cradle
Refer to the LI4278 Product Reference Guide, or the cradle
Quick Reference Guides for detailed information about cradle setup.
Quick Reference Guides for detailed information about cradle setup.
Quick Reference Guides for detailed information about cradle setup.
When charging, use the cradle power supply for faster charge time.
When charging, use the cradle power supply for faster charge time.
When charging, use the cradle power supply for faster charge time.
Host
Power
(if required)
Connect to
Appropriate Host
HELPFUL BAR CODES
)
SET DEFAULTS
RETURN TO FACTORY DEFAULTS
BATTERY OFF
BATTERY OFF FOR LONG TERM STORAGE/SHIPPING
ADD AN ENTER KEY
(Carriage Return/Line Feed)
To add an Enter key after scanned data, scan all
THREE
bar codes in numerical order.
1
SCAN OPTIONS
2
<DATA><SUFFIX 1>
3
ENTER
ADD A TAB KEY
To add a Tab key after scanned data, scan all
THREE
Enter key bar codes above in numerical order then
scan all
FIVE
bar codes below in numerical order.
1
SCAN SUFFIX
2
7
3
0
4
0
5
9
123SCAN
2
123Scan2 is an easy-to-use , PC-based
software tool that enables rapid and
easy customized setup via a bar code or
USB cable. For more information, visit:
http://www.motorola.com/123Scan2.
Unpairing/Disconnection
UNPAIR/DISCONNECT
