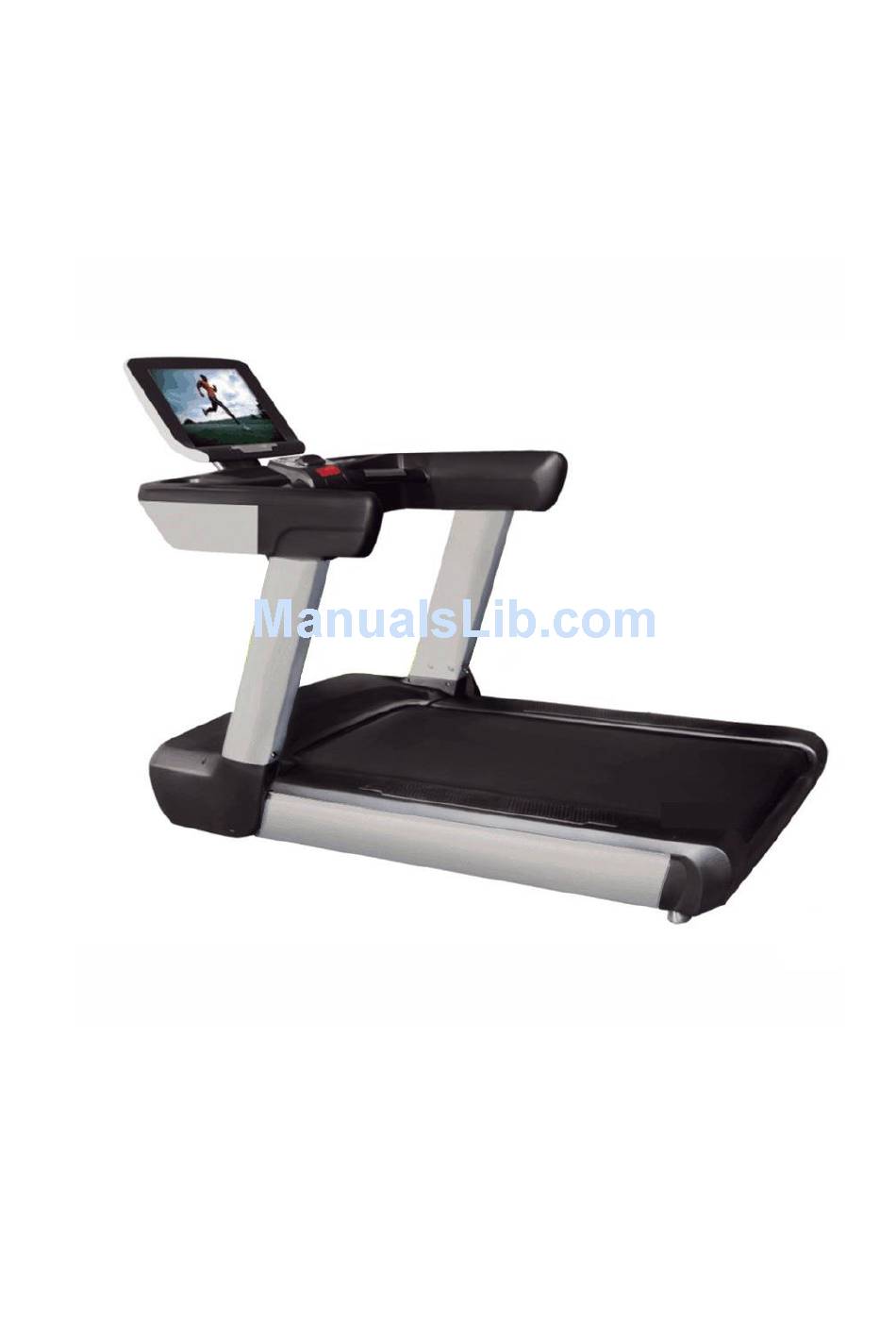

- Page 1 Owner’s Manual T-302 Series Treadmill By Haswell Fitness...
-
Page 2: Table Of Contents
Menu Caution ....................................1 1.1. Electrical Safety ..............................1 1.2. Machine Check ..............................1 1.3. Sport Attention ..............................1 1.4. Children and Pets: .............................. 1 Introduction ..................................2 2.1. Overall View ..............................2 Specifications ..................................3 Assembly and Installation ..............................4 4.1. -
Page 3: Caution
Commercial Treadmill 1. Caution (Safety Precautions) Note: Please read this instruction carefully before using this treadmill, and pay attention to the following safety matters. 1.1. Electrical Safety Always turn off and unplug the power after the use of the treadmill or before cleaning or maintenance to avoid electric shock. -
Page 4: Introduction
2. Introduction 2.1. Overall View Parts Name Remarks 1 Display/Console Set T-302A: LED T-302T: Touch Screen T-302Pad: Android Pad 2 Safe Key 3 Heart Rate Hand Sensor These three together component the docking station 4 Handle bar 5 Console Mast / Support... -
Page 5: Specifications
Commercial Treadmill 3. Specifications Models T-302A T-302T T-302PAD 15 Inch Touch Screen Android TV / Console LED digital tube 15 Inch Touch Screen Pad within Wi-Fi to surface (1) LED shows speed, slope, heart USB input port to read internet... -
Page 6: Assembly And Installation
www.haswell-fitness.com 4. Assembly and Installation 4.1. Before Assemble Please check if the ground surface is level and solid, otherwise it may cause noise, vibration, and tripping over. Please keep the location in door with low humidity and dust level, otherwise will let machine break-down. Please check if any solvent or inflammable substance is nearby, in case electric spark occurs within the machine due to electric leakage or static, it may lead to an explosion or fire. -
Page 7: Installation
Commercial Treadmill 4.2. Installation STEP 1 Installing the left upright post- connect the two electrical connectors NOTE Ensure the two electrical connectors at the bottom of the left upright post are well-connected before moving to the next step STEP 2 Installing the left upright post- secure the left upright post TOOL 5 Flat washer, white 6 Washer, star... - Page 8 www.haswell-fitness.com STEP 4 Installing the right upright post- secure the right upright post TOOL 5 Flat washer, white 6 Washer, star 8 Dome screw, M8*15L Hex wrench-6mm STEP 5 Installing the console bridge- connect the two electrical connectors NOTE Ensure you push any excess wires inside the left upright post.
- Page 9 Commercial Treadmill STEP 7 Installing the console bridge- fix the TV wire connector NOTE When connecting the TV wire, ensure to twist lock the connector, then push the jacket to cover the connector STEP 8 Installing the console bridge- position the bridge on the top of the upright post NOTE Ensure to push any excess wires inside the right and left upright post.
- Page 10 www.haswell-fitness.com STEP 10 Installing the console bridge- secure the right side of the console bridge TOOL 5 Flat washer, white 6 Washer, star 8 Dome screw, M8*15L Hex wrench-6mm STEP 11 Installing the 550Te Entertainment console- connect the electrical connectors NOTE 1.
-
Page 11: Operation
Commercial Treadmill 5. Operation 5.1. Main Interface When the treadmill boot, or the treadmill stops and back to the main interface. Main interface can enter the system under any sub- interface. 5.2. Manual Operation Interface You will see manual operation interface if press Start button in the main interface, Under the manual operation interface users could changes parameters according to their own health, Slope on the left, Speed on the right,... -
Page 12: Multimedia Interface
www.haswell-fitness.com When users finish exercise, user can press the STOP button, and then you will get below interface Press the CONFIRM will go back the main interface 5.3. Multimedia Interface You will see below interface if press Multimedia button in the main interface, How to see TV or use video input? Connect data input cables from data supplier like digital set top box;... -
Page 13: Target Interface
Commercial Treadmill 5.4. Target Interface You will see below interface if press Target button in the main interface, Press key jump to next parameter after input the weight value; Press CONFIRM button to enter next interface to setting time, and "distance" and "calories" like below image shows. Press Start button to lauch target mode running.. -
Page 14: Programs Interface
www.haswell-fitness.com 5.5. Programs Interface. You will see below interface if press Program button in the main interface, There are 24 programs for customers to select. One movement cycle time is 30 minutes as default; user can add and reduce the time by press + or - button. After press "START"... -
Page 15: Shortcut Panel
Commercial Treadmill 5.7. Shortcut Panel Quick Start: Initiate the motor to begin at 0.1 km/h and 0% elevation. Incline Button: Use the incline arrow button to change the elevation. Each press of the button represents 0.5% Increment. Decline Button: Use the decline arrow button to change the elevation. Each press of the button represents 0.5% decrease in elevation. -
Page 16: Maintenance
www.haswell-fitness.com 6. Maintenance Keep clean will prolong service life treadmill, therefore clean the running belt and running deck regularly is encouraged, soft cloth with soapy water could be adopt to clean the belt but do not pour water to flushing or the motor and other electronics parts properly be damaged. -
Page 17: Error Code
Commercial Treadmill 7. Error code Error Code Means Remarks ERROR 00 trouble-free ERROR 01 Non-meaning ERROR 02 Accelerate the over current 01-08 are parameters related with frequency converter and motor, ERROR 03 Slow down over current Only two reasons will cause those code ERROR 04 Constant speed over current The input power is not suitable or frequency converter got problem.
