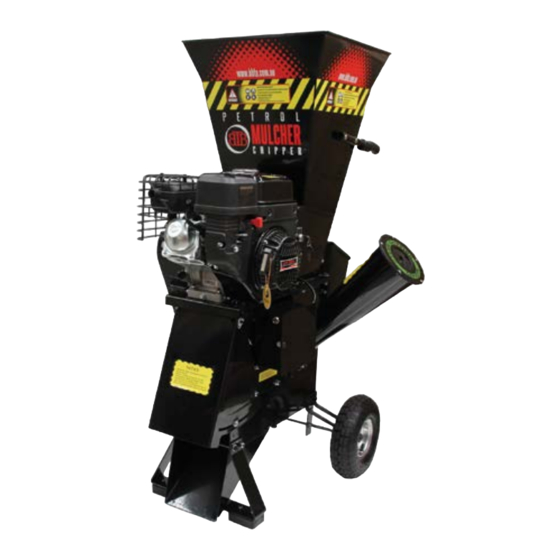

- Page 1 OWNER’S MANUAL Assembly & Operating Instructions GARDEN MULCHER / CHIPPER MODEL NO. BBT-MUL-7HPES 7HP Electric Key Start Garden Mulcher / Chipper...
-
Page 2: To The Owner
Please do NOT return the Mulcher without first contacting the Customer Support Department at bbt@bbta.com.au. If you have difficulty assembling this product or have any questions regarding the controls, operation, or maintenance of this Mulcher, please contact our Customer Support Department. SAVE THESE INSTRUCTIONS WWW.BBTA.COM.AU BBT-MUL-7HPES... -
Page 3: Table Of Contents
Removing and Sharpening the Blade .........................11 Changing or Tightening the Belt ........................11 Cleaning the Chipper/Shredder...........................12 Storing the Chipper/Shredder ..........................12 SPECIFICATIONS ............................12 TROUBLESHOOTING ..........................13 WARRANTY & SERVICE ........................14 EXPLODED DIAGRAM & PARTS LIST....................15 Component Parts Diagram ..........................15 YOU MAY ALSO LIKE ...........................16 BBT-MUL-7HPES WWW.BBTA.COM.AU... -
Page 4: Important Safety Information
Equipment described within this manual may be optional. Some illustrations may not be applicable to your machine. WARNING! Your Responsibility—Restrict the use of this power machine to persons who have read, understood and will follow the warnings and instructions in this manual and on the machine. SAVE THESE INSTRUCTIONS! WWW.BBTA.COM.AU BBT-MUL-7HPES... -
Page 5: Key To Symbols
DO NOT attempt to deposit branches larger than the side chute into the opening. DO NOT deposit branches larger than 10mm into the top chute. DO NOT force the branches into this machine; allow the machine to automatically feed through. BBT-MUL-7HPES WWW.BBTA.COM.AU... -
Page 6: Safety Information
Allow machine to cool at least 5 minutes before storing. 8. NEVER attempt to make any adjustments while the engine (motor) is running (except where specifically recommended by the manufacturer). WWW.BBTA.COM.AU BBT-MUL-7HPES... -
Page 7: Safety Label Locations
Re-insert the front support tube and pin with the bolts to secure the support leg. Tighten. 7. Attach the Side Chipper Chute Line up the side chute with the studs in the side of the machine. Tighten nuts using 13mm spanner provided. BBT-MUL-7HPES WWW.BBTA.COM.AU... -
Page 8: Operating Guidelines
17. DO NOT touch the muffler and engine as they become hot and can cause a burn. 18. NEVER pick up or carry machine while the engine is running. 19. DO NOT leave the machine running while unattended. 20. Keep children, bystanders, and pets 25m away. 21. Use only manufacturer approved accessories/attachments. WWW.BBTA.COM.AU BBT-MUL-7HPES... -
Page 9: Operating Instructions
IMPORTANT: The hammer screen is located inside the housing in the discharge area. If the screen becomes clogged, remove and clean as instructed. For best performance, it is also important to keep the chipper blade sharp. BBT-MUL-7HPES WWW.BBTA.COM.AU... -
Page 10: Maintenance & Storage
Stop the engine. Disconnect spark plug wire from spark plug and ground against the engine. • Remove the mulcher screen. Reach in and clear the debris causing the blockage. Reinstall the mulcher screen. • Connect the spark plug wire and restart. WWW.BBTA.COM.AU BBT-MUL-7HPES... -
Page 11: Removing And Sharpening The Blade
Tighten the engine mounting bolts securely. • Re-install the belt and verify the tension. If the belt is still too loose, move the engine back another 3mm by repeating the above steps. • Reinstall guards, chutes, and screens. BBT-MUL-7HPES WWW.BBTA.COM.AU... -
Page 12: Cleaning The Chipper/Shredder
NEVER store the machine or fuel container inside where there is an open flame, spark or pilot light such as a water heater, furnace, clothes dryer, etc. SPECIFICATIONS MODEL BBT-MUL-6.5HPBS BBT-MUL-7HPES BBT-MUL-15HPES Maximum RPM 3600 RPM 3600 RPM 3600 RPM Horsepower 6.5 HP... -
Page 13: Troubleshooting
3. Low engine RPM. 3. Always run engine at full throttle. Rate of discharge slows 1. Low engine RPM. 1. Always run engine at full throttle. 2. Chipper blade dull. 2. Replace chipper blade or see your authorised service dealer. BBT-MUL-7HPES WWW.BBTA.COM.AU... -
Page 14: Warranty & Service
Parts purchases, consumable components and accessories such as chains, carry bags, batteries, hoses, grinding discs, covers, belts, cable, wheels and blades are not covered by standard warranty. Spare Parts Spare parts are available. Please see our website (www.bbta.com.au) or contact us at bbt@bbta.com.au for more details. WWW.BBTA.COM.AU... -
Page 15: Exploded Diagram & Parts List
SP-MUL-7HPES-044 Clutch SP-MUL-7HPES-045 Vbelt SP-MUL-7HPES-046 Belt cover SP-MUL-7HPES-047 Steel wire ring 2 SP-MUL-7HPES-048 Steel belt ring SP-MUL-7HPES-049 Belt pulley SP-MUL-7HPES-050 Gasket(left) NOTE: Due to continuous product improvement, we reserve the right to change the product without prior notice BBT-MUL-7HPES WWW.BBTA.COM.AU... -
Page 16: You May Also Like
YOU MAY ALSO LIKE Chainsaws Blowers Lawn Mowers Chainsaw Sharpeners COPYRIGHT © BIGGER BOYZ TOYZ AUSTRALIA PTY Unit 2/3 Delta Place Albion Park Rail NSW 2527 BBT-MUL-Master-MNL1804...
