LifeSafety Power ADC-ACC1-17-PSE Quick Manual

Description
The ADC-ACC1-17-PSE is a single door access control unit
featuring dual voltage power, an ADC-ACC1-17 controller,
and a preinstalled adapter plate for an ADC-ACX1 single
door reader board, housed in a 12"x14"x4.5" metal enclo-
sure with battery space.

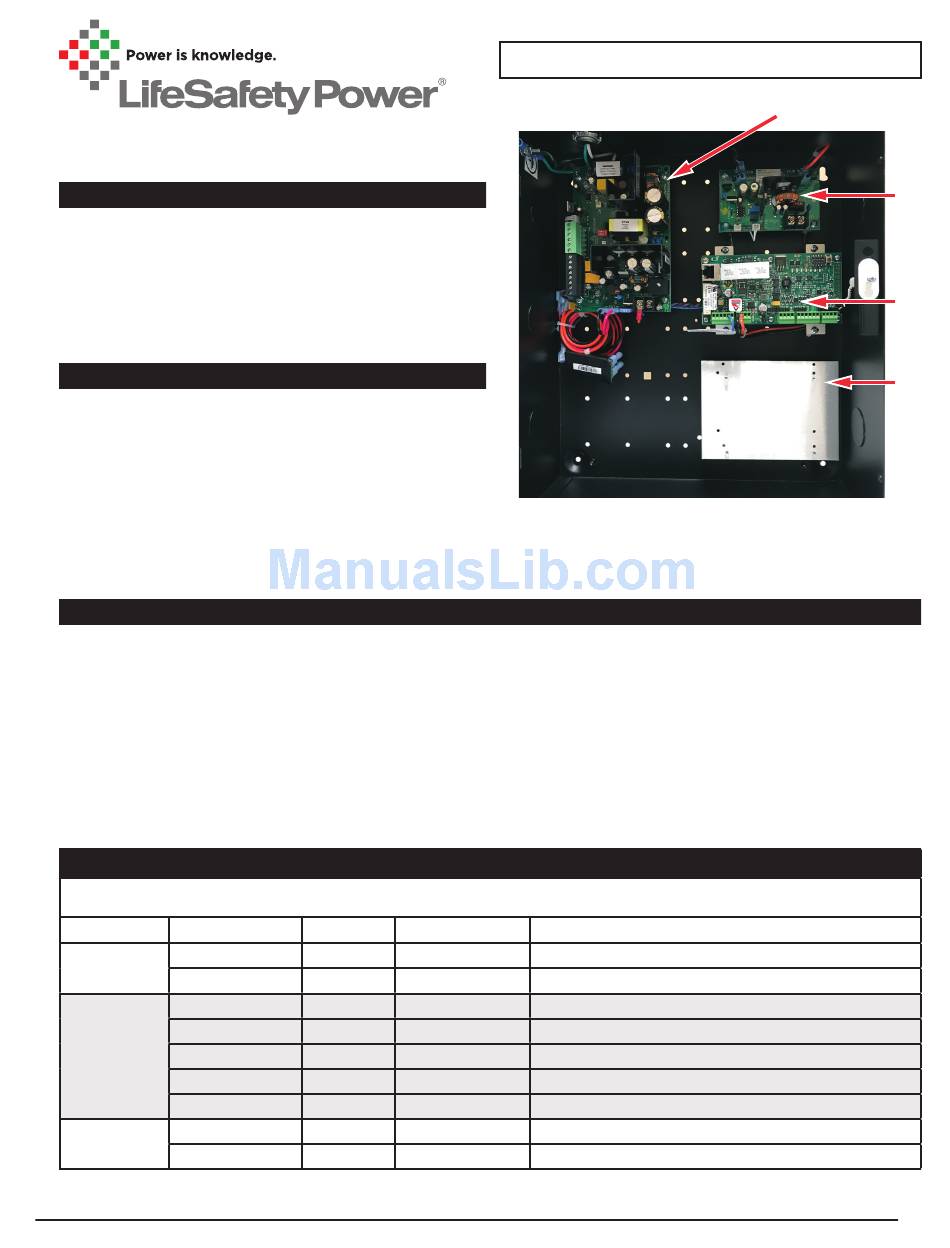

Equipment List
1. Power Supply 24VDC / 3A (model: FPV4)
2. Secondary 12V supply (model: B100)
3. ADC-ACC1-17 controller
4. Mounted ADC-ACX1 expansion back plate
5. ADC-ACX1 mounting hardware
6. AC power cord
System Operation
The FPV4 power supply converts AC primary power to 24VDC for charging the battery set and powering the B100, locking
device(s), and 24V auxiliary devices. The B100 is powered from the FPV4 Auxiliary terminals and steps the 24V down to
12V to power the ADC-ACC1-17 controller, reader(s), and any 12V auxiliary devices.
The battery set is charged by the red/black harness on the bottom edge of the FPV4. The battery set MUST be two 12V
batteries in series for a 24V battery set. Observe polarity or damage to the system will occur.
Positive lock power is prewired to the ADC-ACC1-17 lock relay terminal 1C. The lock positive should be wired to the NC
(Fail Safe) or NO (Fail Secure) terminal as appropriate. The lock negative should be wired directly to the FPV4 DC OUT (-)
terminal to minimize noise and surges in the system.
Terminal Output Ratings
**Max currents listed are for individual terminals - total current at 12V and 24V not to exceed max rating of supply
Board Terminal
DC OUT
FPV4
AUX OUT
DC OUT
J2 (DC OUT)
B100 J5 (DC OUT)
J1 (DC IN)
J4 (DC IN)
VO
ADC-ACC1-17
1-C (NO or NC)
October 2017
Voltage Max Current**
24V 1.5A
24V 0.75A
12V 1.5A
12V 1.5A
12V 1.5A
24V 0.75A
24V 0.75A
12V 0.65A
24V 1.5A
1/2
ADC-ACC1-17-PSE
QUICK GUIDE
ADC-ACX1 or
ADC-ACC1-17
Accessories included
• AC power cord
• Battery harness
• Bracket mounting hardware
Notes
Output can be switched by FAI Input on FPV4
Max Current includes current drawn by B100
For additional 12V devices
For additional 12V devices
For additional 12V devices
For additional 24V devices
For additional 24V devices
Max Current includes reader current draw
Switched Lock Output - Ground at FPV4 DC OUT (-) Terminal
101317_rev1




Bracket for
www.lifesafetypower.com
