Summary of Contents for Patio Glow 99300

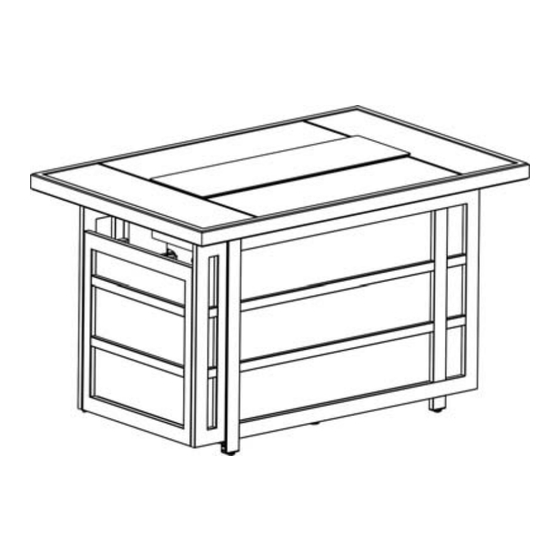

- Page 4 ASSEMBLY INSTRUCTIONS CSA Model 99300 BRX02400 Installer: Leave these instructions with consumer. Consumer: Keep these instructions for future reference DANGER WARNING: If you smell gas: Improper installation, adjustment alteration, 1. Shut off gas to the appliance. service or maintenance can cause injury or 2.
-
Page 5: Table Of Contents
TABLE OF CONTENTS Important Safety Information ............3 Important Information about Propane..........4 Specifications ................. 4 Parts Identification List ..............5-6 Installation ................. 7-10 Natural Gas Conversion ............11-12 Lighting Instructions ..............12-13 Batteries ..................13 Maintenance ................. 13 Troubleshooting Guide ..............14 Warranty .................. -
Page 6: Important Safety Information
IMPORTANT SAFETY INFORMATION The installation must conform with local codes or, in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA 54; International Fuel Gas Code. ; Natural Gas and Propane Installation Code, CSA B149.1; or Propane Storage and Handling Code, B149.2, as applicable. The appliance must be isolated from the gas supply piping system by closing its equipment shutoff valve during any pressure testing of the gas supply system at test pressure equal to or less than 1/2 psi (3.5kPa). -
Page 7: Important Information About Propane
IMPORTANT SAFETY INFORMATION ABOUT PROPANE (LP) GAS A self contained LP-gas cylinder for use with this appliance must have a capacity of 20 lbs. and must be equipped with a Type 1 connector and an OPD (overfill protection device). See Figure 1. The LP-gas supply cylinder to be used must be constructed and marked in accordance with the specification for LP-gas cylinders of the U.S. -
Page 8: Parts Identification List
PARTS IDENTIFICATION LIST PART DESCRIPTION PART# CONTROL KNOB FP0245 GAS VALVE FP0307 THERMOCOUPLE FP0004 LP REGULATOR HOSE FP1369 ELECTRODE FP1330 ORIFICE ELBOW FP1385 IGNITION MODULE FP1666 PROPANE ORIFICE FP1299 NATURAL GAS ORIFICE FP1300 FOOTCAP FC0559 FIRE ICES FP2006 “AAA” BATTERY(1.5V) HW0705 1/4"... - Page 9 MIDDLE SUPPORT FP2196 FIREPIT TABLE RIM FP2197 BACK PANEL FP2198 DOOR PANEL FP2199 SIDE PANEL-1 FP2200 SIDE PANEL-2 FP2201 LP SUPPORT FP1174 TILE-1 FP2202 TILE-2 FP2203 TABLE BUMPER G0199 BURNER COVER FP1229...
-
Page 10: Installation
INSTALLATION 1. Identify the parts packed in the carton against the parts list. Remove all protective materials and set parts on a flat, non-abrasive surface. 2. Attach the back panel to the side panels by using four 1/4"x40 mm bolts and washers as shown in Figure 2. - Page 11 4. Attach a connector to side panel-1 by using a 1/4"x15 mm bolt and washer as shown in Figure 4a. Guide the bolt through the hole in the connector, into the pre-drilled hole in the side panel-1. Do not over tighten. Place the door onto the connector by guiding the pin in the connector into the hole under the door.
- Page 12 6. Attach the LP support to the door panel by using four 1/4"x15 mm bolts and washers as shown in Figure 6a. Do not over tighten. Place propane tank onto the LP support as shown in Figure 6b. Figure 6a Figure 6b 7.
- Page 13 Repeat until all bolts are tight. Do not over tighten. Over tightening may strip bolts. Cover all bolts with covers. 9. Note the clear bumpers spaced evenly throughout the inside of the table rim. Carefully place tiles inside table rim, resting on the clear bumpers as shown in Figure 8 Figure 8 10.
-
Page 14: Natural Gas Conversion
NATURAL GAS CONVERSION Natural gas conversion must be performed only by your natural gas provider or service company. Step 1- At the control panel, disconnect the rubber gas hose from the gas valve. Step 2- Below the burner, disconnect the aluminum gas tube from the orifice elbow. -
Page 15: Lighting Instructions
Step 5- Stick the conversion label on the rating plate as shown in Figure 11. Serial Number _________________ Model Number: 99300 CAUTION: The gas pressure regulator provided with this appliance must be used. This regulator is set for an outlet pressure of This appliance has been converted to use Natural Gas. -
Page 16: Batteries
4. To shut down the fire pit, turn the control knob to the “OFF” position and turn off the tank valve. BATTERIES Make sure the control knob is in the "OFF" position. Unscrew the push button cap on the ignition module located on the control panel to access the battery compartment. -
Page 17: Troubleshooting Guide
TROUBLESHOOTING GUIDE PROBLEM CAUSE REMEDY Check that gas tank valve is open. Turn control knob to “ON” Burner won’t light No Propane Gas at Burner and push control knob in. Make sure tank has propane gas. Check that battery installed with negative (-) end first and has a charge. -
Page 18: Warranty
1 YEAR LIMITED WARRANTY What is Covered Under This Warranty? The item you have purchased is warranted against defects in materials and workmanship for the following parts as outlined below only when unit is installed and operated in accordance with the instructions in this Owner’s Manual and in compliance with local building and fire codes: ...
