- Page 1 KERN & Sohn GmbH Ziegelei 1 Tel: +49-[0]7433-9933-0 D-72336 Balingen, Germany Fax: +49 (0)7433-9933-149 E-mail: info@kern-sohn.com Internet: www.kern-sohn.com Operating manual Digital refractometer KERN ORD 45BM, 92BM, 85BM, 92HM, 1SM, 3SM, 2WM, 1PM, 2UM, 5UM, 6 US, 1RS, Version 1.0 01/2015...
-
Page 2: Table Of Contents
KERN ORD Version 1.0 01/2015 Operating instructions Digital refractometer Contents Introduction ....................3 Specifications ....................3 Models ............................4 Description ..................... 5 General information ..................6 Intended use ..........................6 Warranty ............................ 6 Basic safety information ................7 Follow the instructions in the operating manual ..............7 Warning ............................. -
Page 3: Introduction
1 Introduction This refractometer is an easy-to-use measuring instrument. Please read the operating instructions before use to achieve an optimal measurement result. The refractometer is designed for fast and precise determination of concentrations in liquids. Automatic temperature compensation is also included. The measuring in- strument will work reliably for many years if handled correctly. -
Page 4: Models
2.1 Models Calibration Model Scales Measuring range Accuracy Division solution KERN ORD 45BM Brix 0 – 45 % ± 0.2% 0.1 % 0% (distilled Refractive index 1.3330 – 1.4098 nD ± 0.0003 nD 0.0001 nD water) ORD 92BM Brix 58 – 92% ±... -
Page 5: Description

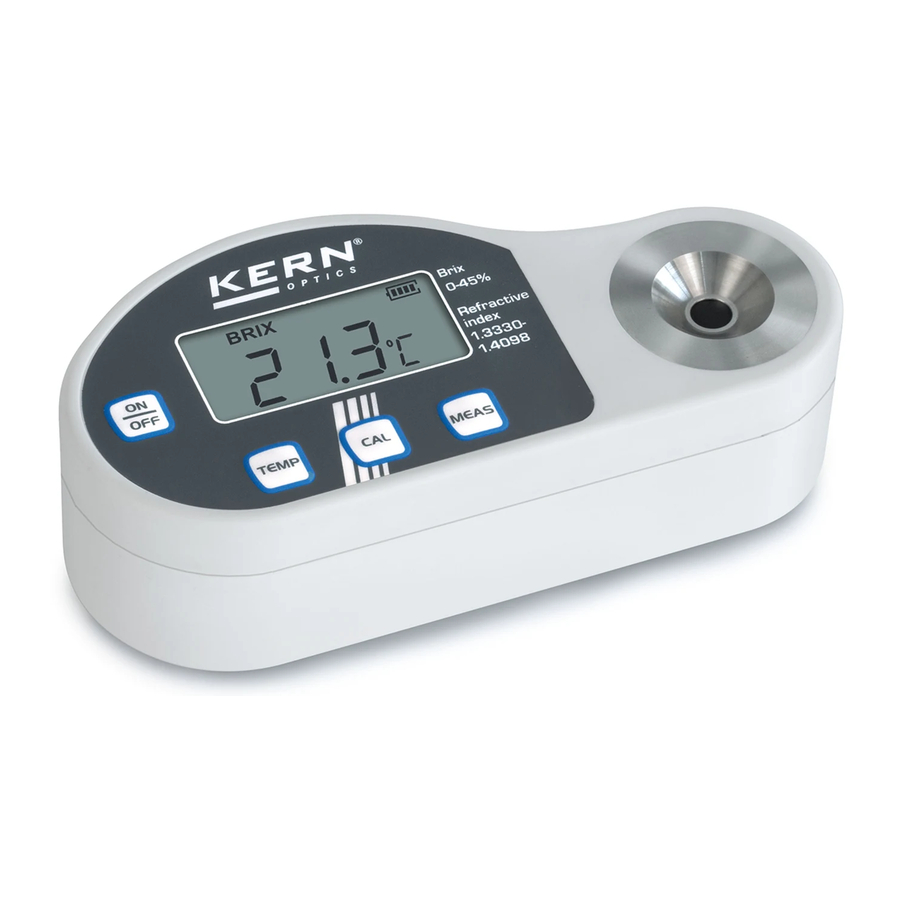

3 Description Similar to illustrati- 1. LCD 2. Prism 3. Prism window 4. On/Off 5. Temperature display and switchover (°C/°F) 6. Calibrate 7. Measure Battery compartment and battery compartment cover at the rear ORD-BA-e-1510... -
Page 6: General Information
4 General information 4.1 Intended use The refractometer is a measuring instrument for determining the refractive index of transparent substances in liquid or in some cases also in the solid state. It is used to observe the behaviour of light as it passes from a prism with known properties to the substance being tested. -
Page 7: Basic Safety Information
5 Basic safety information 5.1 Follow the instructions in the operating manual Carefully read through the operating manual even if you have prior experience with KERN refractometers. Every language version includes a non-authoritative translation. The original German document is the definitive version. -
Page 8: Supplied Items
6 Supplied items After unpacking and before using the device for the first time, check that all listed parts have been supplied. Replace damaged or faulty parts immediately and do not put them into operation. Refractometer Storage box Pipette Adjustment tool Cleaning cloth Calibration liquid 7 Automatic temperature compensation... -
Page 9: Calibration/Zero Point Calibration
8 Calibration/zero point calibration The refractometer's zero position must be inspected prior to initial use and periodical- ly thereafter. A zero point calibration should be performed at least once daily and pri- or to any measurement where the highest possible accuracy is required, or when moving to a different environment with a different ambient temperature. -
Page 10: Battery Replacement
2. Apply a few drops of the liquid being examined onto the prism window. 3. Press the 'Meas' button; the instrument begins to measure. 4. You may press the 'Meas' button again and then release it; a second meas- urement is then performed. Remember to clean and dry the prism after measuring. -
Page 11: Troubleshooting
mode: 2. Simultaneously press the 'Cal' [6] and the 'Meas' [7] buttons. The measuring instrument will change the measuring scale: 3. When the required measuring scale appears release the buttons again. Adjustment is complete 13 Troubleshooting If you suspect that the measuring instrument is not working correctly or displays in- correct results, perform a zero point calibration. -
Page 12: Error Messages
13.1 Error messages Adjustment outside of measuring range (zero point). Battery discharged. Temperature too low for measuring instrument (0 °C) Temperature too high for measuring instrument (40 °C) Temperature too low for measuring instrument (32 °F) Temperature too high for measuring instrument (104 °F) Measurement outside of measuring range at bottom of scale. - Page 13 Measurement outside of measuring range at top of scale. Measurement outside of measuring range at bottom of scale. Measurement outside of measuring range at top of scale. Calibration liquid outside of measuring range ORD-BA-e-1510...
-
Page 14: Cleaning And Maintenance
The device housing may only be opened by trained service technicians au- thorised by KERN. 17 Disposal The packaging consists of environmentally friendly materials which can be disposed of via local recycling facilities. - Page 15 index index index 1.33299 1.38115 1.44193 1.33442 1.38296 1.44420 1.33586 1.38478 1.44650 1.33732 1.38661 1.44881 1.33879 1.38846 1.45113 1.34026 1.39032 1.45348 1.34175 1.39220 1.45584 1.34325 1.39409 1.45822 1.34476 1.39600 1.46061 1.34629 1.39792 1.46303 1.34782 1.39986 1.46546 1.34937 1.40181 1.46792 1.35093 1.40378 1.47037 1.35250...
