INSTALLATION GUIDE
FRONT LOADING CLOTHES WASHER
WHI260P, WH1260F & WH1060P models
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this document may not be available in all markets and are subject to change at any time. For current details about model
and specification availability in your country, please go to our website www.fisherpaykel.com or contact your local Fisher & Paykel dealer.
1 BEFORE YOU BEGIN
IMPORTANT!
INSTALL PRODUCT CORRECTLY
The washer must be properly installed and located in accordance with the installation instructions before it is used.
Refer to the User guide for full details.
2 UNPACKING
Remove the packaging, polystyrene packer and lift the product off the base.
1
Remove the hose(s) and accessories.
2
3 REMOVING TRANSIT SAFETY BOLTS
Removing transit safety bolts
The clothes washer is fitted with transit safety bolts at the rear to avoid possible damage to the interior during transportation.
IMPORTANT!
The transit bolts MUST be removed prior to operation of the machine. Failure to remove these will result in damage to the
machine.
Note: the transit bolts MUST be removed in order to use the power cord.
To remove the bolts
Use a spanner or socket to unscrew and remove all
1
4 transit bolts at the back of the washer (refer to A).
Pull the black rubber grommets to remove the bolt,
2
grommet and white plastic spacers from the machine
(refer to B). Retain these for future use.
Move the drain hose from the from the plastic clasp and
3
clasps on the side of the transit braces.
Removing the transit safety bolts
Removing the drain hose
NZ AU
A
B
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Fisher & Paykel WHI260P
Summary of Contents for Fisher & Paykel WHI260P
-
Page 1: Save These Instructions

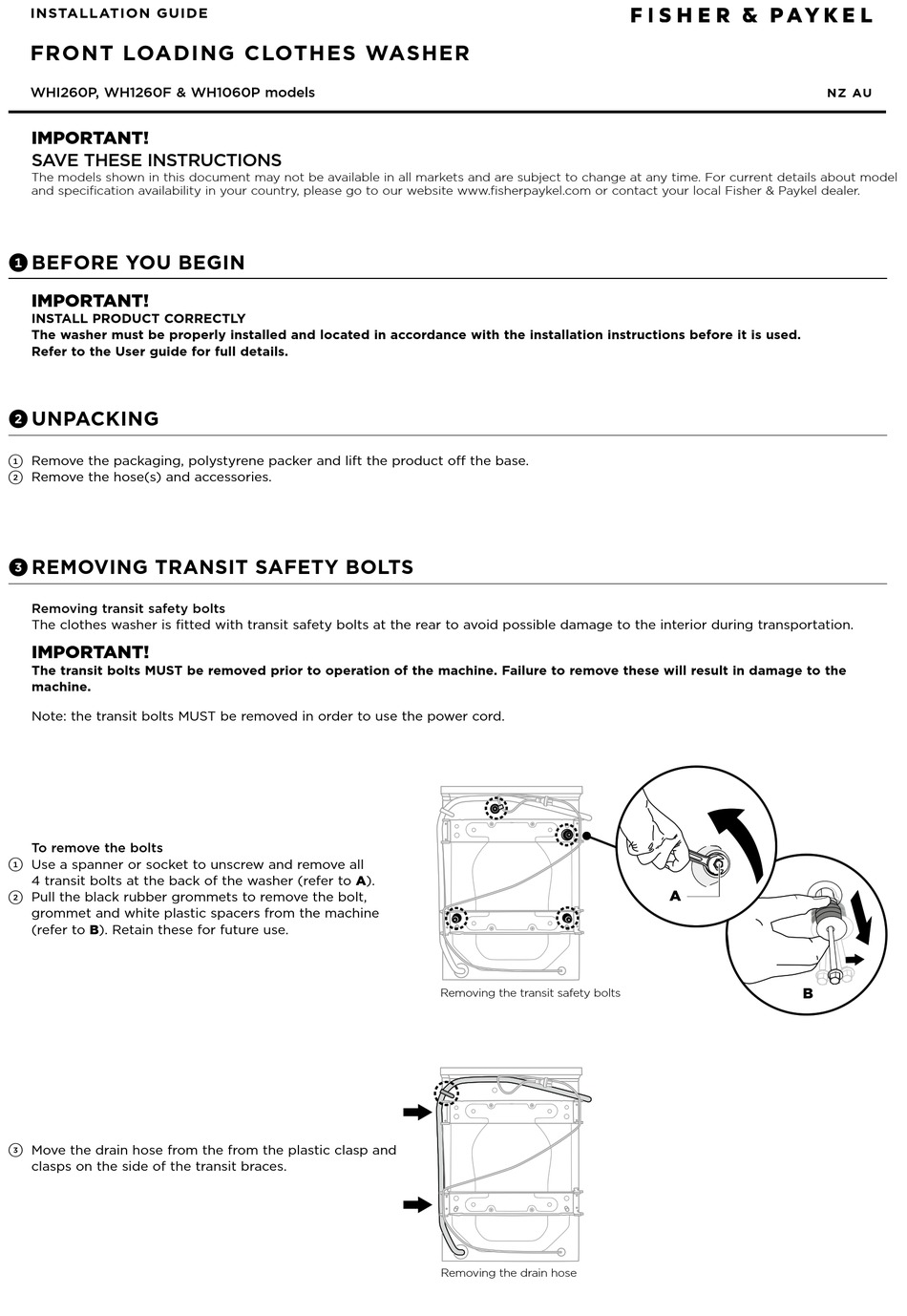

INSTALLATION GUIDE FRONT LOADING CLOTHES WASHER WHI260P, WH1260F & WH1060P models NZ AU IMPORTANT! SAVE THESE INSTRUCTIONS The models shown in this document may not be available in all markets and are subject to change at any time. For current details about model and specification availability in your country, please go to our website www.fisherpaykel.com or contact your local Fisher &... -
