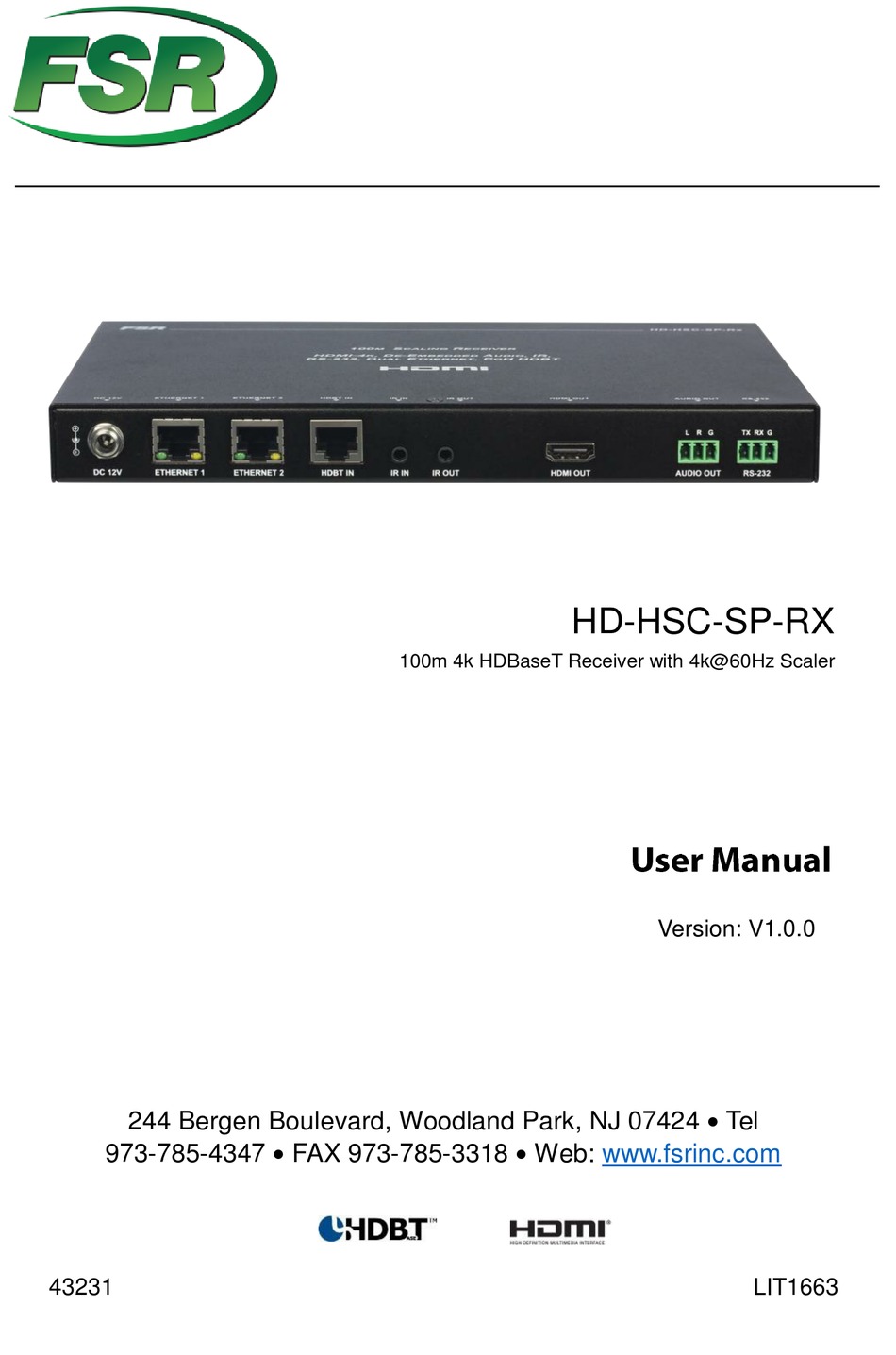

- Page 1 HD-HSC-SP-RX 100m 4k HDBaseT Receiver with 4k@60Hz Scaler Version: V1.0.0 244 Bergen Boulevard, Woodland Park, NJ 07424 Tel 973-785-4347 FAX 973-785-3318 Web: www.fsrinc.com 43231 LIT1663...
- Page 2 Important Safety Instructions...
- Page 3 FCC Warnings This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 4: Table Of Contents
Table of Contents Overview Features Package Contents Specifications Panel Description Control the Display Control the Source Using RS232 Port for Serial Communication Warranty Terms and Conditions... -
Page 5: Overview
Introduction Overview The HD-HSC-SP-RX is a 100m 4k HDBaseT Receiver with an integral 4k@60Hz Scaler. The unit is capable of the distribution of uncompressed 4k@60Hz 4:2:0 UHD video, Digital Coax and Analog Stereo audio, Ethernet, RS232 and Bi-directional IR together up to 100m/330ft over a single CATx cable. - Page 6 Features HDBaseT receiver with 4k@60Hz (4:4:4) scaler built in and HDCP 2.2 compliance Supports 1080P@60Hz up to 100m, 4k@60Hz 4:2:0 / 4k@30Hz 4:4:4 up to 70m over Cat5e/Cat6. HDMI audio de-embedded output with unbalanced stereo option. Built in 2-port Ethernet switch with Telnet control ...
-
Page 7: Package Contents
Package Contents 1 x HD-HSC-SP-RX Receiver 1 x Power Supply (DC 12V 3A) 1 x AC Cord 2 x Pluggable Screw Terminal Connectors (3.81mm 3 Pin) 1 x IR Emitter 1 x IR Receiver ... -
Page 8: Specifications
Specifications Technical Input HDBT Input Signal Type HDBT VESA: 800x600 , 1024x768 , 1280x768 1280x800 , 1280x960 , 1280x1024 1360x768 , 1366x768 , 1440x900 1600x900 , 1600x1200 , 1680x1050 1920x1200 Input Resolution SMPTE: 720x480P , 720x576P 6,7,8 6,7,8 1280x720P , 1920x1080P 2,3,5,6,8* 2,3,5,6,8* 3840x2160P... - Page 9 1360x768 , 1366x768 , 1440x900 1600x900 , 1600x1200 , 1680x1050 1920x1200 SMPTE: 1280x720P , 1920x1080P 3840x2160P 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = 60 Hz;...
- Page 10 Cable Specifications Note: FSR recommends use of straight-through Category cables wired to T568B standard and use HD-HSC-SP-RX with a Transmitter which also supports 100m. Cable Type Range Supported Video 100m/328ft 1080p@60Hz 36bit 1080p@60Hz 3D Cat5e/6 70m/230ft 4k@30Hz YUV4:4:4, 4k@60Hz YUV4:2:0...
-
Page 11: Panel Description
Panel Description Front Panel Name Description ON: The receiver is powered on Power LED OFF: The receiver is powered off Blinking Slowly: Scaler LED The scaler module is working properly OFF: The scaler module is not working properly Blinking Slowly: Status LED The receiver is working properly OFF: The receiver is not working properly... - Page 12 Back Panel Name Description DC 12V DC 12V power input Connects to Ethernet device ETHERNET1 Connects to Ethernet device ETHERNET2 HDBT In Connects to HDBT Output port of HDBT transmitter Connects to IR receiver to enable control of display IR In from source location Connects to IR emitter to enable control of source IR Out...
- Page 13 TV, media server etc.) to the HDMI IN of an FSR 100m Transmitter. Connect a high quality, well-terminal Cat5e/6/6a/7 cable between the HDBT OUT of the Transmitter and the HDBT IN of the HD-HSC-SP-RX Receiver. Connect the HDMI display device (LED/LCD display or projector) to the HDMI OUT of the Receiver.
-
Page 14: Control The Display
You can control the display from the source location with the display remote. Control the Source In this case, IR IN port in HD-HSC-SP-RX is connected to a IR receiver cable and IR OUT port in your transmitter is connected to an IR emitter cable. You... - Page 15 The following figure shows the RS232 pinout. Control System...
- Page 16 The RS232 port allows you to connect an RS232 device at each end of the HDBaseT system for serial communication. See LIT1663 API Manual for the API command set...
-
Page 17: Using Rs232 Port For Serial Communication
The bi-directional RS232 pass through function allows you to interface two RS232 devices for serial communication by connecting to an FSR Transmitter and HD-HSC-SP-RX receiver via RS232 cables in order to control the source device or the display. Ensure the source device and the display device are connected separately to the transmitter and the receiver as shown;... -
Page 19: Warranty Terms And Conditions
FSR factory or Authorized Repair Stations. This warranty shall be cancelable by FSR at its sole discretion if the unit has been subjected to physical abuse or has been modified in any way without written authorization from FSR.
