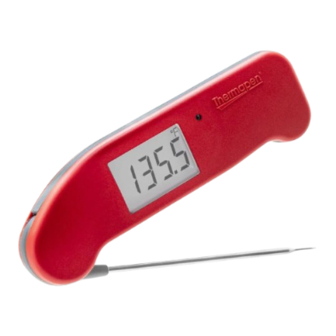

ThermoWorks Reference Thermapen Operating Instructions

Download this manual

Enlarged version

SPECIFICATIONS

Range: -94.00 to 392.00°F (-69.99 to 199.99°C)

Resolution: 0.01° or 0.1° - user selectable

Accuracy: ±0.04°C (-29.99 to 149.99°C) otherwise ±0.2°C /

±0.07°F (-22 to 302°F) otherwise ±0.36°F

Sensor Type: 1/3 DIN Thin Film PT100 to BS EN 60751 (4 wire)

Probe: 4.25 L x 0.125 inches dia. (108 L x 3.3mm dia.)

Battery: 2 x 3 volt CR2032 lithium coin cell

Battery Life: 1000 hours

Display: 0.83 H x 1.89 W inches (21 H x 48 W mm) LCD

Dimensions: 6.1 H x 1.85 W x 0.75 D inches (153 H x 47 W x 19 D mm)

Weight: 0.22lb. (100g)

Reference Thermapen

Operating Instructions

Made in the UK

1762 W. 20 S. #100, Lindon, UT 84042

Ph: 801-756-7705 Fax: 801-756-8948

P-12-001-02-c

Ref: 547-145 19.03.15

www.thermoworks.com

Page 1: Operating Instructions
Display: 0.83 H x 1.89 W inches (21 H x 48 W mm) LCD Dimensions: 6.1 H x 1.85 W x 0.75 D inches (153 H x 47 W x 19 D mm) Weight: 0.22lb. (100g) Reference Thermapen ® Operating Instructions Made in the UK 1762 W.
Page 2 During this period, products that prove to be and °C. To change to °C push the switch toward the batteries. defective will, at the discretion of ThermoWorks, be either repaired or replaced Switch 2 - Resolution - To change the resolution from 0.01°F (factory default) without charge.
