Onkyo UWF-1 Setup

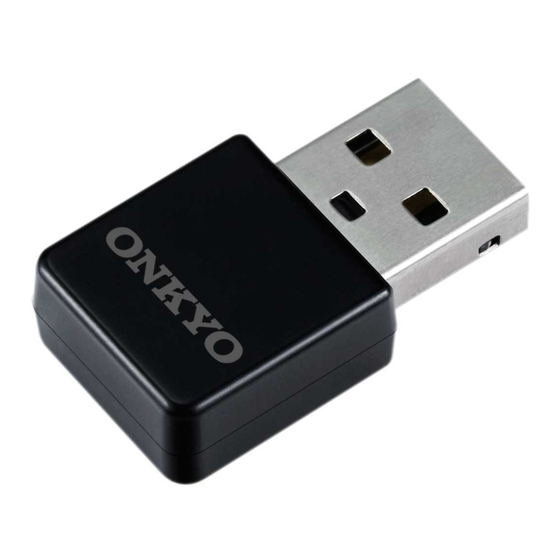

Onkyo UWF-1 Wireless USB Network Adapter Setup
1. Connect the UWF-1 to the USB port on your network-capable AV receiver.
2. Press USB to select the USB input
a. The "Wireless Setup" menu is displayed on screen
3. Use / to select "Manual Setup" and then press ENTER
a. A list of available Access Points is displayed
4. Use / to select the Access Point you wish to connect to, and then press ENTER.
a. Depending on your encryption settings, the security of your Access Point will
provide one of the following patterns:
i. WEP Method
ii. WPA/WPA2 Method
iii. No Encryption
5. Select "OK" and press ENTER
a. After the connection to your Access Point is completed, the connection status is
displayed on screen. This completes the wireless LAN setup. You can review
your setup with the "Status" option on the "Wireless Setup" menu.
1. Use / to select "Default KeyID" and then press ENTER
2. Use / to choose an ID between 1 and 4, and then press ENTER
3. Use / to select "Key" and then press ENTER
4. Use the keyboard on screen to enter the secret key and confirm
with "OK"
1. Use / to select "Key" and then press ENTER
2. Use the keyboard on screen to enter the secret key and confirm
with "OK"
1. If your Access Point device is not secured by encryption, there is
no need to input any secret key
