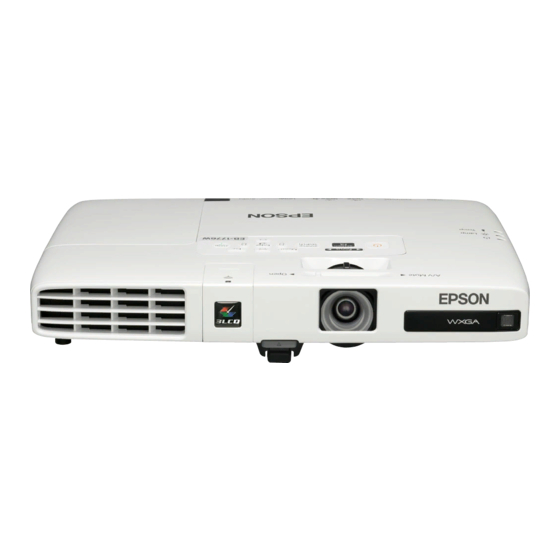

Epson EB-1776W User Manual

/ / /

SPECIFICATIONS

Specification of LCD Size 0.59-inch x 3
Main Parts Pixel Number 1,024,000 dots (1280x800) x 3
Native Resolution WXGA
Projection Lens Powerd Focus & 1.2 × Optical zoom
F-number =1.58 - 1.7 / Focal Length =13.52 - 16.22mm
Lamp Type 230 W UHE
Life 4000 hours (Power Consumption: Normal) / 4000 hours (Power Consumption: ECO)
Screen Size 30" to 300" [0.67 to 6.81 m]
Offset 10:1
Light Output* Brightness Control Normal / Eco 3000 lm / 1700 lm
Color Light Output* 3000 lm
Contrast 2000:1
Sound Output 1W Monaural
Keystone Correction Vertical Yes (Auto / Manual)
Horizontal Yes (Auto / Manual)
Screen Fit Yes
Quick Corner Yes
Auto Focus Function Yes
Analog RGB Input Terminal Video D-sub 15pin x 1
Audio Stereo mini jack x 1
Video Input Terminal Video Composite Video: RCA (Yellow) x 1
Component Video: D-sub 15pin Blue molding (in common with Analog RGB connector)
RGB Video: D-sub 15pin Blue molding (in common with Analog RGB connector)
Audio Stereo mini jack x 1 (in common with Analog RGB connector)
Digital Input Terminal HDMI x 1
Control USB I/O Terminal USB Type B x 1 (for USB Display, Mouse, K/B, Control)
Speed USB Ver. 2.0
Memory Terminal USB Type A x 1 (for USB Memory, Document Camera)
Speed USB Ver. 2.0
Network for Projection Wired LAN N/A
Wireless Terminal USB Type A x 1
Support Speeds for IEEE 802.11b: 11 Mbps**
each mode IEEE 802.11g: 54 Mbps**
IEEE 802.11n: 130 Mbps**
PC Applications EasyMP Monitor (for Windows)***
EasyMP Network Projection (for Windows,Mac OS X)***
USB Display (for Windows,Mac OS X)
QuickWireless Connection
(for Windows)
Epson iProjection
EasyMP Slide Converter (for Windows)***
Operating Temperature 5 °C to 35 °C <41 °F to 95 °F>
Operating Altitude 0 m to 2286 m<0 ft to 7500 ft>( over 1500 m / 4,921 ft :with High altitude mode)
Start-Up period less than7.2 seconds
Direct Power On Yes
Direct Power Off Yes
Cool-Down Period Instant off
Power Supply Voltage 100 - 240 V AC +/- 10%, 50/60 Hz
Power Consumption 100-120V Lamp on 322 W
Stand by 0.38 W(Network Off)
220-240V Lamp on 304 W
Stand by 0.44 W(Network Off)
Dimensions Exclude Feet (D x W x H) 210 x 292 x 44 mm
Weight Approx. 3.77 lbs. / 1.71kg
Fan Noise Brightness Control : Normal / Eco 40dB / 30dB
*Light Output / Color Light Output / Contrast --- Color mode: Dynamic, Zoom: Wide
**Maximum speed and range is achievable when used with same enhanced mode technology. Actual data rates, features and performance may vary depending on your computer system, and environment.
***Supplied on included CD-ROM
****Supplied as an option

SUPPLIED ACCESSORIES

OPTIONAL ACCESSORIES
Power Cable 3.0m ELPLP65
Remote Control With AA type alkaline batteries x2pcs ELPAF31
Computer Cable 1.8m <6 ft>, D-Sub 15 pin (Male/Male) ELPAP09
USB Cable 3.0m (1776W/1771W/1761W), 1.8m (1751) ELPAP07
Soft Carrying Case ELPDC06
Password Protect Sticker
Bold, Bright, Beautiful...3LCD Technology
User's Manual
EPSON Projector Software (CD-Rom)
3LCD technology achieves bright,
Quick Wireless Connection USB Key ELPAP09 (1776W)
natural images and smooth, sharp
Wireless LAN Unit ELPAP07 (1776W)
video playback. No color break-up
makes images gentle on the eyes.
PROJECTION DISTANCE / EB-1751 PROJECTION DISTANCE / EB-1776W/1771W/1761W
Epson Hong Kong Limited
Unit 715-723, Trade Square,
681 Cheung Sha Wan Road,
Cheung Sha Wan, Kowloon, Hong Kong
0.55-inch x 3
786,432 dots (1024 x 768) x 3
XGA
Manual Focus & 1.2 × Optical zoom
205 W UHE 230 W UHE
30" to 300" [0.72 to 7.30 m]
7.9:1
2600 lm / 1700 lm 2600 lm / 1400 lm
2600 lm
Yes (Manual)
N/A
N/A
N/A
N/A
N/A
N/A
QuickWireless Connection N/A
(for Windows)****
N/A
293 W 322 W
278 W 304 W
Approx. 3.7 lbs. / 1.68kg Approx. 3.7 lbs. / 1.68kg Approx. 3.66 lbs. / 1.66kg
37dB / 30dB 40dB / 30dB
WARRANTY SERVICE
Spare Lamp
2 Years Onsite Warranty Service to be provided for
Air Filter Set local purchase only.
Quick Wireless Connection USB Key
Wireless LAN Unit
USB Document Camera
# The warranty service can be extended by purchasing
Epson Coverplus Extended Warranty.
For more information, please contact Epson
customer support.
Optical unit with high light-use efficiency

CONNECTOR PANEL

EB-1776W/1771W/1761W/1751
Video Input
Computer Input
USB (Type B)
Epson Customer Service Centre (Repair Service)
Room 1006, Block B, Sea View Estate, Enquiry hotline
4-6 Watson Road, North Point, Hong Kong Technical hotline
Epson Authorized Customer Service Centre (Collection Point)
URL: www.epson.com.hk
Room 1006-1008, Park-in Commercial Centre,
56 Dundas Street, Mon Kok, Kowloon, Hong Kong
USB (Type A)
HDMI
Audio Input
