Interlogix 60-597 Installation Instructions

Hi Tech Handheld Wireless Touchpad Installation
Instructions
Product summary
This lightweight, portable touchpad allows you to
™
control Concord , Concord Express
®
Advent panels. You can arm and disarm your
security system, bypass sensors, control lights,
activate emergency alarms, and check system
status. Features include:
• Automated low-battery reports to the panel.
• Police, Fire, and Auxiliary panic buttons.
• Automated supervisory reports to the control
panel every 64 minutes.
• Long life (5 to 8 year) 3 V DC lithium battery.
• Wall-mount option.
Installation
Observe the following guidelines:
• Avoid mounting the touchpad near excessive
metal or electrical wiring, including furnace
and utility rooms.
• Avoid mounting in areas with excessive
moisture.
• Avoid mounting the touchpad where
temperatures exceed operating limits of 10°
to 120°F (-12° to 49°C).
• Refer to appropriate control panel
documentation for information about RF
ranges for the wireless touchpad.
To install the battery:
1. Remove cover and install battery (see
Figure 1 below).

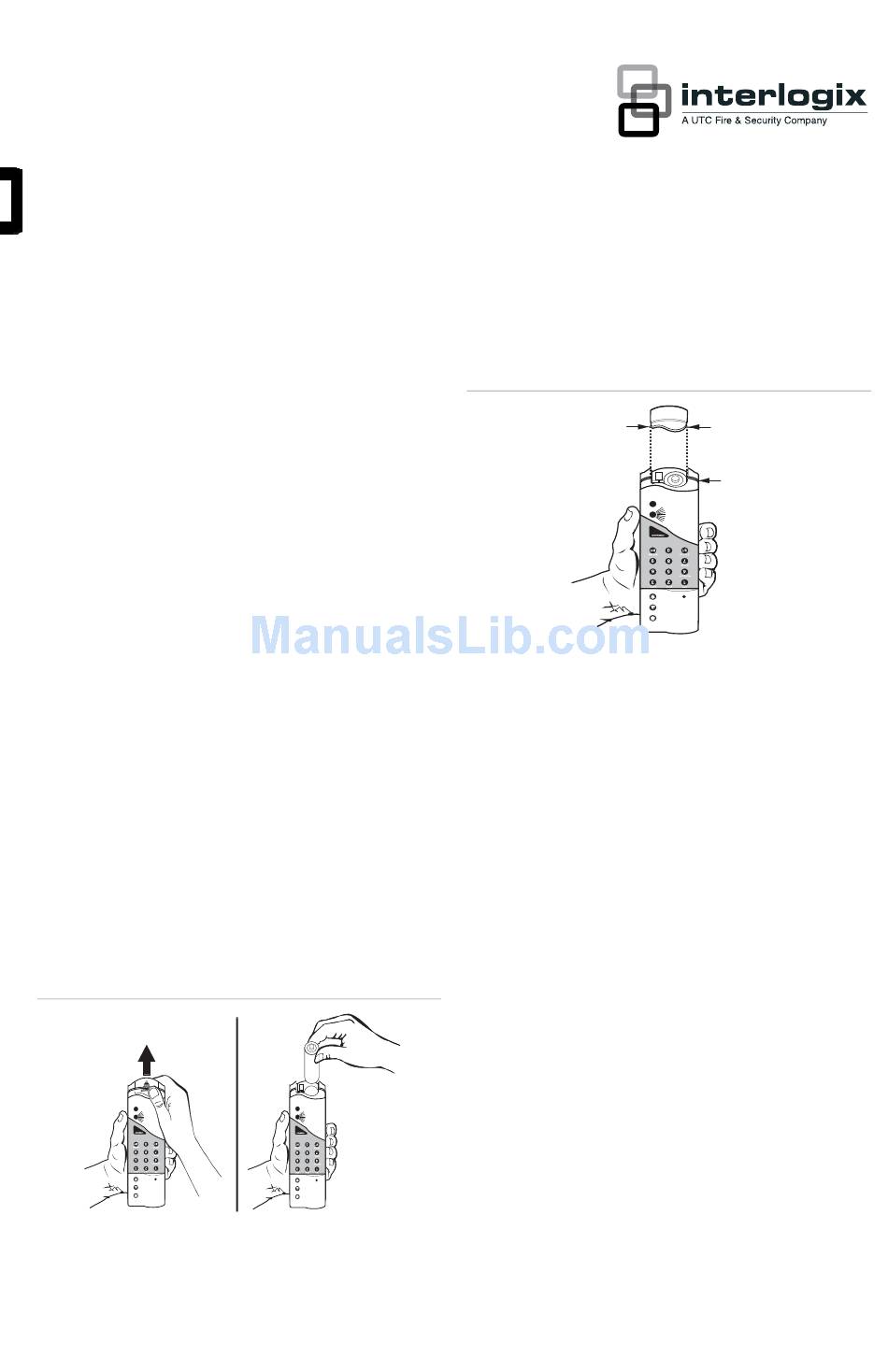

Figure 1: Install battery
8341G02A.DS4
P/N 466-1012 • REV E • Model No. 60-597 • January 2011
2.
™
, and
3.
Figure 2: Replacing the battery cover
Programming
Note: For SX-V Special systems, if the touchpad
is mounted on a wall or remains at the installation
site, set upper sensor number 89 to ON. If the
touchpad is to be removed from the site (i.e.
placed in an automobile), set upper sensor
number 89 to OFF.
The following steps provide a general guideline
for programming (learning) the wireless touchpad
into panel memory. Refer to specific panel
documentation for complete programming details.
1.
2.
3.
4.
5.
Testing
Remind your customer to test their security
system and wireless touchpad weekly. Refer to
the control panel documentation for complete
8341G03A DS4
instructions on testing and operating the security
system.
To replace the battery cover, align the two
exposed tabs with the touchpad's front and
back cover seam (see Figure 2 below).
Press down on the battery cover and slide
into place.
EXPOSED
TAB
Set your control panel to PROGRAM mode.
Proceed to LEARN TOUCHPAD menu.
Enter the ADD/PROGRAM menu to program
your wireless touchpad into panel memory.
Press BYPASS on the touchpad when
prompted for touchpad activation.
At the panel, exit the PROGRAM mode.
EXPOSED
TAB
TOUCHPAD
SEAM
