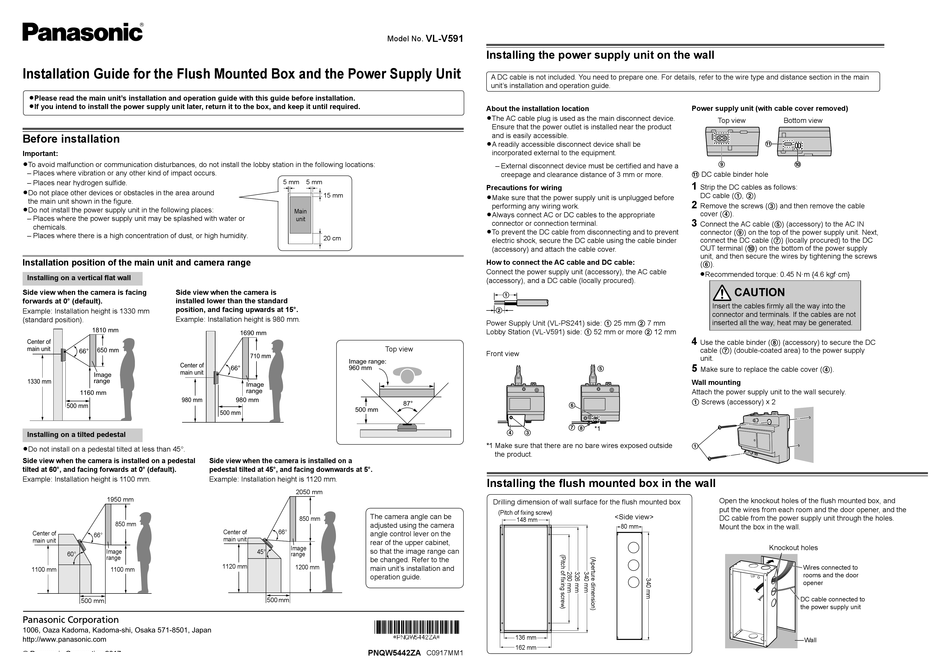

Panasonic VL-V591 Installation Manual

Installation Guide for the Flush Mounted Box and the Power Supply Unit
LPlease read the main unit's installation and operation guide with this guide before installation.
LIf you intend to install the power supply unit later, return it to the box, and keep it until required.

Before installation

Important:
LTo avoid malfunction or communication disturbances, do not install the lobby station in the following locations:
– Places where vibration or any other kind of impact occurs.
– Places near hydrogen sulfide.
L D o not place other devices or obstacles in the area around
the main unit shown in the figure.
L D o not install the power supply unit in the following places:
– Places where the power supply unit may be splashed with water or
chemicals.
– Places where there is a high concentration of dust, or high humidity.
Installation position of the main unit and camera range

Installing on a vertical flat wall

Side view when the camera is facing Side view when the camera is
forwards at 0° (default). installed lower than the standard
position, and facing upwards at 15°.
Example: Installation height is 1330 mm
(standard position). Example: Installation height is 980 mm.
1810 mm
Center of
main unit
650 mm
66°
Center of
main unit
range
1330 mm
1160 mm
980 mm
500 mm

Installing on a tilted pedestal

L D o not install on a pedestal tilted at less than 45°.
Side view when the camera is installed on a pedestal
tilted at 60°, and facing forwards at 0° (default).
Example: Installation height is 1100 mm.
1006, Oaza Kadoma, Kadoma-shi, Osaka 571-8501, Japan
http://www.panasonic.com
© Panasonic Corporation 2017
Model No.
5 mm 5 mm
15 mm
Main
unit
20 cm
1690 mm
Top view
710 mm
Image range:
66° 960 mm
range
980 mm
500 mm
500 mm
Side view when the camera is installed on a
pedestal tilted at 45°, and facing downwards at 5°.
Example: Installation height is 1120 mm.
The camera angle can be
adjusted using the camera
angle control lever on the
rear of the upper cabinet,
so that the image range can
be changed. Refer to the
main unit's installation and
operation guide.
PNQW5442ZA
VL-V591
Installing the power supply unit on the wall
A DC cable is not included. You need to prepare one. For details, refer to the wire type and distance section in the main
unit's installation and operation guide.

About the installation location

L T he AC cable plug is used as the main disconnect device.
Ensure that the power outlet is installed near the product
and is easily accessible.
L A readily accessible disconnect device shall be
incorporated external to the equipment.
– External disconnect device must be certified and have a
creepage and clearance distance of 3 mm or more.

Precautions for wiring

L M ake sure that the power supply unit is unplugged before
performing any wiring work.
L A lways connect AC or DC cables to the appropriate
connector or connection terminal.
L T o prevent the DC cable from disconnecting and to prevent
electric shock, secure the DC cable using the cable binder
(accessory) and attach the cable cover.

How to connect the AC cable and DC cable:

Connect the power supply unit (accessory), the AC cable
(accessory), and a DC cable (locally procured).
A
B
Power Supply Unit (VL-PS241) side: 1 25 mm 2 7 mm
Lobby Station (VL-V591) side: 1 52 mm or more 2 12 mm
Front view
87°
F
G H
D C
*1 Make sure that there are no bare wires exposed outside
the product.

Installing the flush mounted box in the wall

Drilling dimension of wall surface for the flush mounted box
(Pitch of fixing screw)
148 mm
136 mm
162 mm
C0917MM1
Power supply unit (with cable cover removed)
Top view
K
I
k DC cable binder hole
1
S trip the DC cables as follows:

DC cable (1, 2)
2
R emove the screws (3) and then remove the cable

cover (4).
3
C onnect the AC cable (5) (accessory) to the AC IN

connector (9) on the top of the power supply unit. Next,
connect the DC cable (7) (locally procured) to the DC
OUT terminal (j) on the bottom of the power supply
unit, and then secure the wires by tightening the screws
(6).
L R ecommended torque: 0.45 N·m {4.6 kgf·cm}
CAUTION
Insert the cables firmly all the way into the
connector and terminals. If the cables are not
inserted all the way, heat may be generated.
4
U se the cable binder (8) (accessory) to secure the DC

cable (7) (double-coated area) to the power supply
unit.
5
E M ake sure to replace the cable cover (4).

Wall mounting
Attach the power supply unit to the wall securely.
1 Screws (accessory) x 2
*1
A
Open the knockout holes of the flush mounted box, and
put the wires from each room and the door opener, and the
<Side view>
DC cable from the power supply unit through the holes.
Mount the box in the wall.
80 mm
Knockout holes
Bottom view
J
Wires connected to
rooms and the door
opener
DC cable connected to
the power supply unit
Wall
