LK Systems 241 84 64 Assembly Instructions

LK Electric Portable Boiler
6 5
8
Structure
The LK Electric Portable Boiler is a complete
portable electrically-heated boiler. It is primarily
meant to be used as a temporary heater, e.g. for
drying concrete slabs installed with under floor
heating and for heating buildings under construc-
tion installed with a under floor heating system.
The boiler has a total output capacity of 9 kW and
it works in two steps of 4.5 kW.
The boiler is supplied complete with a circulation
pump, an expansion tank, and auxiliary devices
including a safety valve and air-bleed valve.
Connection to the under floor heating manifold/
heating system is simple, using steel-reinforced
flexible hoses.
The boiler is factory wired and complete with a
3-phase 400 V electric plug.
Temperature regulation is controlled by the
boiler's operating thermostat.
4
1
3
7
Assembly instructions | LK Electric Portable Boiler
2
10
9
11

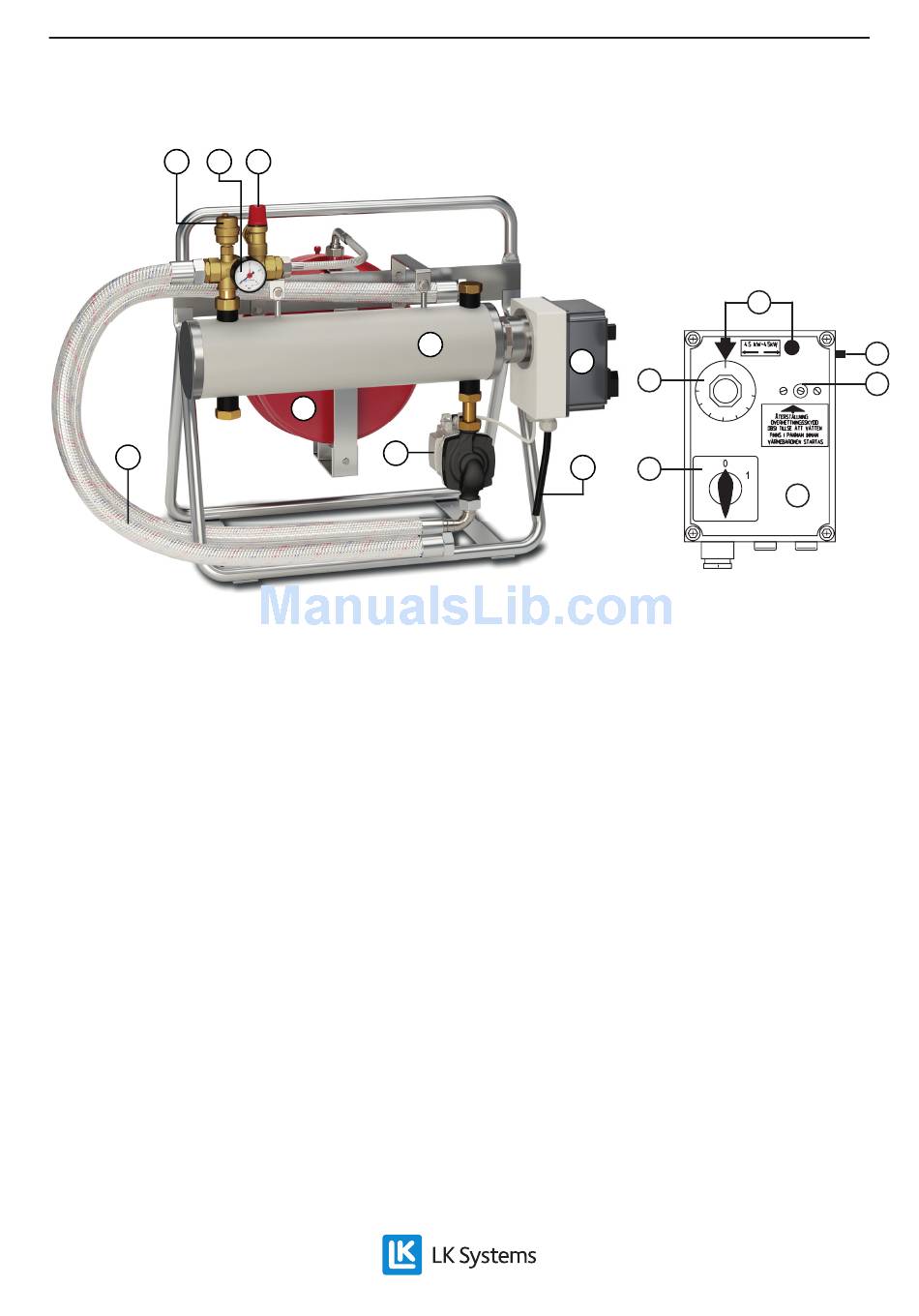

LK Electric Portable Boiler comprises of:
1. Electrically-heated boiler, 9 kW
2. Control box
3. Expansion tank, 12 litres
4. Safety valve, 1.5 bar
5. Pressure gauge
6. Automatic air-bleed valve
7. Circulation pump, Grundfos Alpha 2L 15/60
8. Steel-reinforced connection hose 1", length
1.0 m
9. Cable with 3-phase coupling connector,
length 1.0 m
10. Operating thermostat, 0-60 ºC
11. Multipolar main switch
12. Trip switch, overheating protection
13. Trip switch (automatic fuse (10 A)), circula-
tion pump
14. Power amplification indication
14
13
12
2
EN.33.C.39.1707
