SPATIAL REQUIREMENTS

CopyCam components use space above the board and to the left of
the board.
W AR NIN G

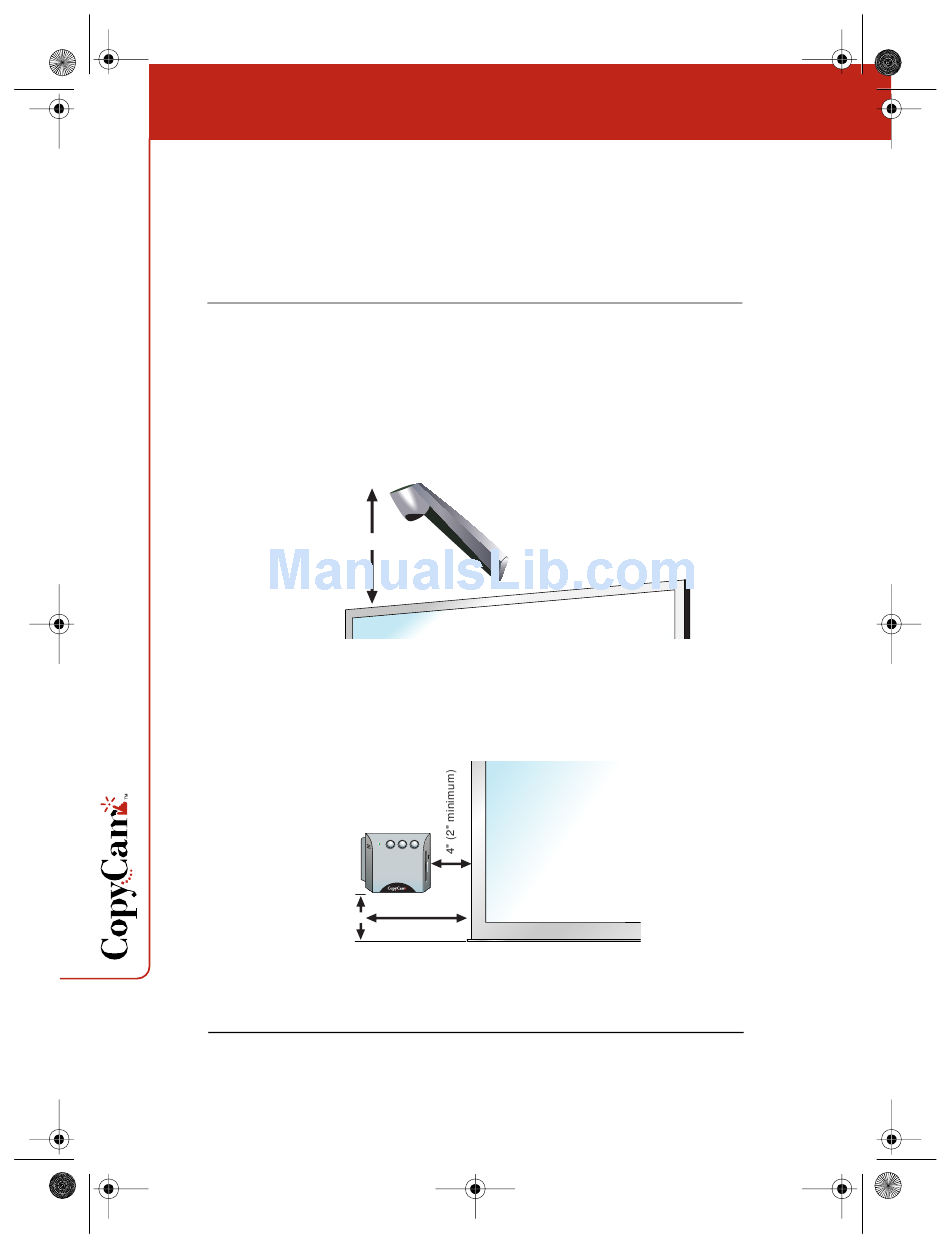

A minimum of 14.1 inches above the board is required for installation
of the camera arm, as shown below. If you do not have at least
14.1 inches of clearance, do not attempt to install CopyCam. Consider
the possibility of moving your board down, or, with a false ceiling, of
raising the ceiling.
Remove projection screens, maps or other devices above the board
that can interfere with the camera arm position.
The control pad includes a floppy diskette drive that the user
accesses from the right. The preferred location for the control pad is
four inches to the left of the board, and about five inches above the
bottom of the board, as shown below.
6
14.1"
1"
13.5"
5"
