QUICK SETUP GUIDE
Dual Hard Drive

Docking Station

NS-PCHDEDS19

PACKAGE CONTENTS

• Dual Hard Drive Docking Station
• Power adapter (12V/3A)
• USB 3.0 cable (USB 3.0 Type B to USB 3.0 Type A)
• Quick Setup Guide
Note: The USB 3.0 OUT port cannot be used to
connect a computer.

SYSTEM REQUIREMENTS

• Windows OS:
Windows® 10, Windows® 8.1, Windows® 8,
Windows®7
• Linux Kernal:
Linux 2.4.1 and later versions
• Mac OS:
Mac OS X 10.6 and later versions
Before using your new product, please read these instructions to prevent any damage.
FEATURES
• Fashionable design provides remarkable performance
• Supports all 2.5" & 3.5" SATA I/II/III hard drives
• Maximum capacity of each bay is up to 8 TB
• Plug and play, no drivers needed
• Supports SATA and USB 3.0 transfer speed up to 5 Gbps
• LED indicator lets you check working status
• Supports MTT (Multiple Transaction Translator)
• Reads two discs (SSD and HDD) simultaneously.

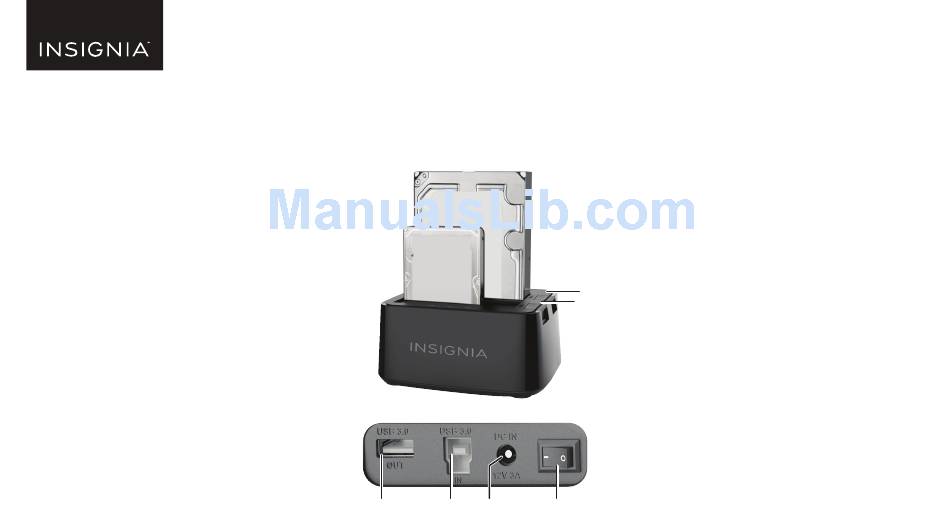

Front view
Back panel view
USB 3.0 OUT USB 3.0 IN
Power adapter
jack
HARD DRIVE DOCKING STATION
Hard Disk:
1 Insert an SSD or HDD into a slot on your docking
station. You can use both slots at the same time.
CAUTION: To avoid damaging the equipment,
make sure that the SSD/HDD is inserted in the
correct direction.
2 Connect the USB cable to the USB 3.0 IN jack on the
docking station and to an available USB port on
your computer.
3 Connect the power adapter to the DC IN jack on the
back of your docking station, then turn on your
docking station and the computer. The docking
station LED blinks until the computer identifies your
station, then the LED lights steady.
4 If this is the first time you are using an SSD or HDD,
follow your computer's operating system
instructions to format the disk.
5 Follow your computer's operating system
instructions to transfer data to or from your
computer. The docking station LED blinks while data
is transferring.
Eject
6 When the transfer is complete, turn off power to the
Buttons
docking station by pressing the power switch. Press
the eject button on the side of your docking station,
then remove the SSD or HDD.
USB Devices:
You can use the USB 3.0 OUT port to connect USB
devices. This jack provides two-way transmission
between the USB device and an HDD, an SSD, or a
computer.
Power Switch
