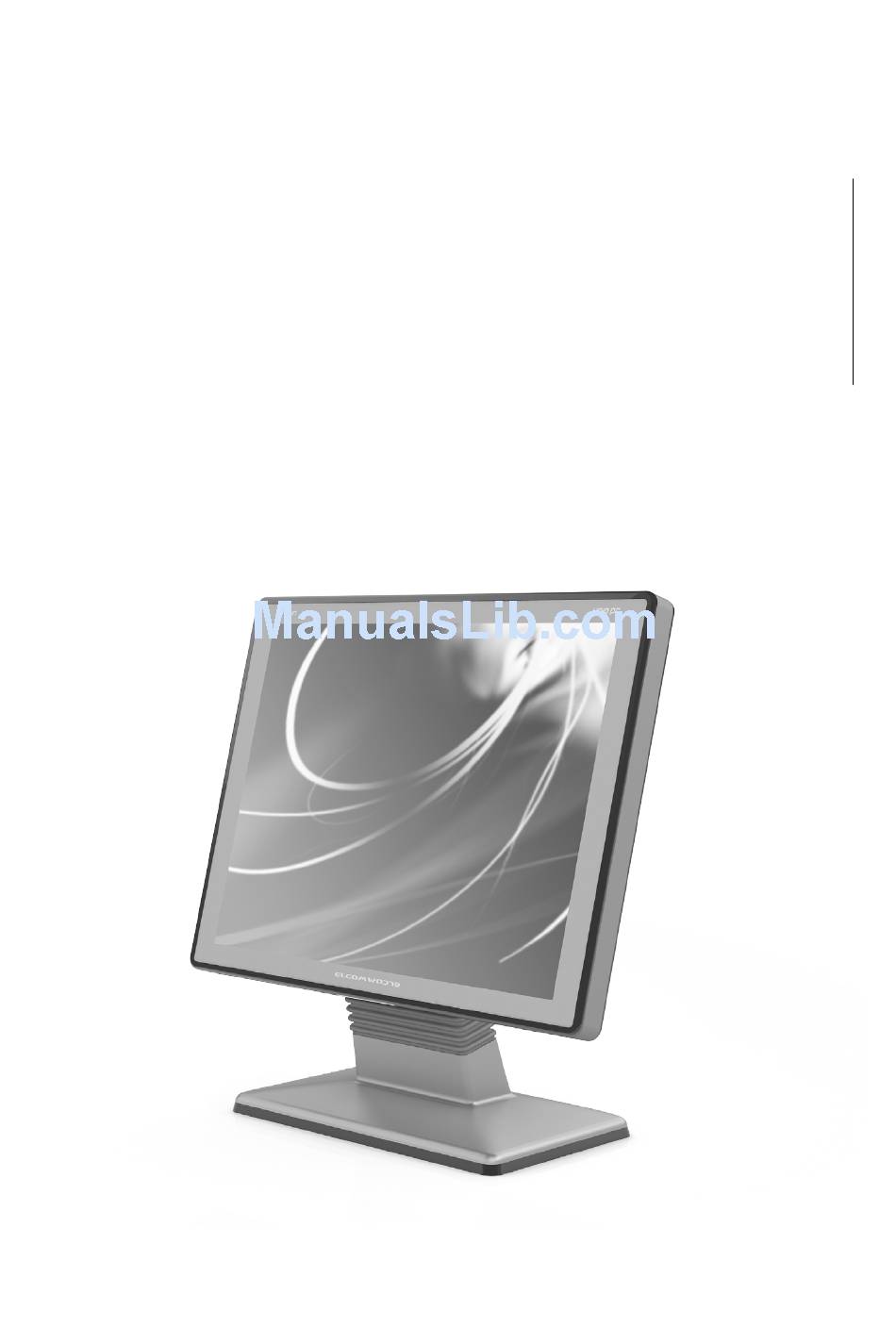

- Page 1 Uniq PC 150 User manual version 1.1.7...
- Page 2 This manual was not subject to any language revision. This manual or any part of it may not be copied, reproduced or otherwise distributed without the consent of the company ELCOM, spoločnosť s ručením obmedzeným, Prešov. All rights reserved. © 2013, ELCOM, spoločnosť s ručením obmedzeným, Prešov...
-
Page 3: Table Of Contents
Uniq PC TABLE OF CONTENTS INTRODUCTION ........................33 Important notice ............................34 Conformity declaration ..........................35 PRODUCT DESCRIPTION ......................36 Parts of the uniq pc, basic features ......................37 Opportunities for attaching peripheral devices ..................38 HANDLING THE EQUIPMENT ....................40 Switching on ........................41 Switching off ........................41 Restarting .......................... -
Page 5: Introduction
INTRODUCTION... -
Page 6: Important Notice
• Do not leave the device unattended while charging. • Use only the power adapter and cable approved by ELCOM. Unauthorized adapters or cables can cause batteries to explode or damage the device. • Improper adapter connection can seriously damage the device. Any damage caused by misuse is not covered under warranty. -
Page 7: Conformity Declaration
WARNING: ELCOM notifies owners of the UNIQ PC 150 device, that in case of intervention into the BIOS part and subsequent system damage, the claim for warranty repair will be rejected. An owner will be obligated to... -
Page 8: Product Description
PRODUCT DESCRIPTION... -
Page 9: Parts Of The Uniq Pc, Basic Features
Product description PARTS OF THE UNIQ PC, BASIC FEATURES The Uniq PC is a complete solution consisting of a monitor, a computer and a touch screen panel all in one unit. The high-quality production and wide possibilities for use make the Uniq PC a unique solution for your business. -
Page 10: Opportunities For Attaching Peripheral Devices
These can be attached directly to the Uniq PC or through a replicator port, which allows for discreet placement of cables. The choice of replicator depends on your demands and needs. You can get more detailed information about replicator ports on our Web page at www.uniqpc.eu or www.elcom.eu. Figure 1.2 – Description of connectors 2x USB2.0 DC in 1x USB 1.1... - Page 11 Product description Obrázok 1.3 - Description of extended connectors variant Audio Audio External input output RS-232 display RS-232 Obrázok 1.4 - Description of connectors for Tubeholder variant DC in 2x USB2.0 VGA monitor COM1 Note: Pictures for reference only. Optional accessory is depicted.
-
Page 12: Handling The Equipment
HANDLING THE EQUIPMENT... -
Page 13: Switching On
The equipment is switched on by pushing the POWER button on the side panel. The LED indicator will light up and the installed operating system will be launched (Fig. 1.1). Note: For OS Linux CentOS 5.5 is pre-defined user, username: elcom, password: elcom (root has password elcom123) -
Page 14: 4-Point Calibration
Handling the equipment 4-Point Calibration During calibration, the symbol of a cross with a circle will gradually appear in each corner of the monitor. For proper calibration, it is necessary to hold down the center of the symbol until it turns blue. In this way you ensure the setting of the exact value regarding the pressing point on the display. -
Page 15: Draw Test
Handling the equipment Draw Test This instrument serves for verifying the precision and checking the functionality of the touch screen panel. The command “Clear“ clears the surface and deletes all objects drawn. The command “Quit“ terminates the drawing instrument. Setting up the touch panel Arrive at the menu for setting up the touch screen panel through: OS Windows: START - PROGRAMS - TOUCHKIT CONFIGURE UTILITY OS Linux CentOS: SYSTEM - ADMINISTRATION - TOUCHPANEL CALIBRATION... -
Page 16: Setting Up The Monitor In Os Windows
Handling the equipment SETTING UP THE MONITOR IN OS WINDOWS Setting the contrast and brightness For setting the contrast and brightness, press the working surface of the panel and hold it down until the op- tions appear (right mouse click). Then choose: Graphics Properties. A window opens with settings for the characteristics of the monitor picture. - Page 17 Handling the equipment Figure 2.6 Rotating the image by 180° Note: In case of OS Linux CentOS using screensaver with options to log-in by password is necessary to use stan- dard keyboard for typing password. Can not use touch screen keyboard. Windows 7 TOUCH PANEL SETTINGS In Windows 7 you can find these settings in the Control Panel, which can be launched from the Start menu...
- Page 18 Handling the equipment Figure 12.1. Touch panel settings dialog Calibration of the touch panel Perform the calibration of the touch panel in Windows 7 if the response to touch control is inaccurate or have other problems with touch controls. Start the calibration by clicking “Calibrate...” button in the “Tablet PC Settings.”...
-
Page 19: Color Correction
Handling the equipment DISPLAY AND IMAGE SETTINGS Color correction To adjust the contrast and brightness, press and hold the panel on the desktop until local menu appears (mouse right–click). Then select “Graphics Properties”. A window opens with the settings, choose the category “Color enhancement”. -
Page 20: Wireless Connections
Handling the equipment Note : In Windows 7 portion of the settings included in the driver (such as display rotation) is also available from standard system dialogs. It doesn’t matter where you change the settings, parameters are system–wide. WIRELESS CONNECTIONS If your Uniq PC contains optional WiFi and/or Bluetooth components, you can use them to communicate with other devices supporting these wireless standards. - Page 21 Handling the equipment...
-
Page 22: Emergency Help
EMERGENCY HELP... -
Page 23: Restoring The Operating System In Case Of Malfunction
For a complete restore of the operating system, switch on the equipment and repeatedly press the F10 key, until the logo “elcom – rescue“ appears on the screen and subsequently a main menu with the possibilities for restoring the system. -
Page 24: Ways Of Mounting
WAYS OF MOUNTING... -
Page 25: Placement On A Vertical Surface (Wall) For Standard Stand
Note: for placing a Uniq PC on a wall it is necessary to achieve a larger angle curvature of the monitor by rotating its legs by 180°. This operation is only authorized to be done at an ELCOM service center. -
Page 26: The Base Tube 500 Mm And 1300 Mm
Ways of mounting Figure 4.2 The method of attaching the base to a high mounting 176 mm The base tube 500 mm and 1300 mm The base tube is a solid and firm solution with an intelligent design and protected cables. The cables are led through a metal tube in the base and this type of construction guarantees a high degree of IP 54 coverage. - Page 27 Ways of mounting We can alter the setting of the position of the rotated base by loosening the four screws from the bottom of the base and by setting the required angle of rotation. For assuring the position, it is necessary to drive the screws and thus anchor the base to the table.
-
Page 28: Identification And Protective Elements
Ways of mounting IDENTIFICATION AND PROTECTIVE ELEMENTS Figure 4.5 Identification and protective elements fragmentation strip bond product label licence label WEPOS... - Page 29 Poznámky / Notes...
