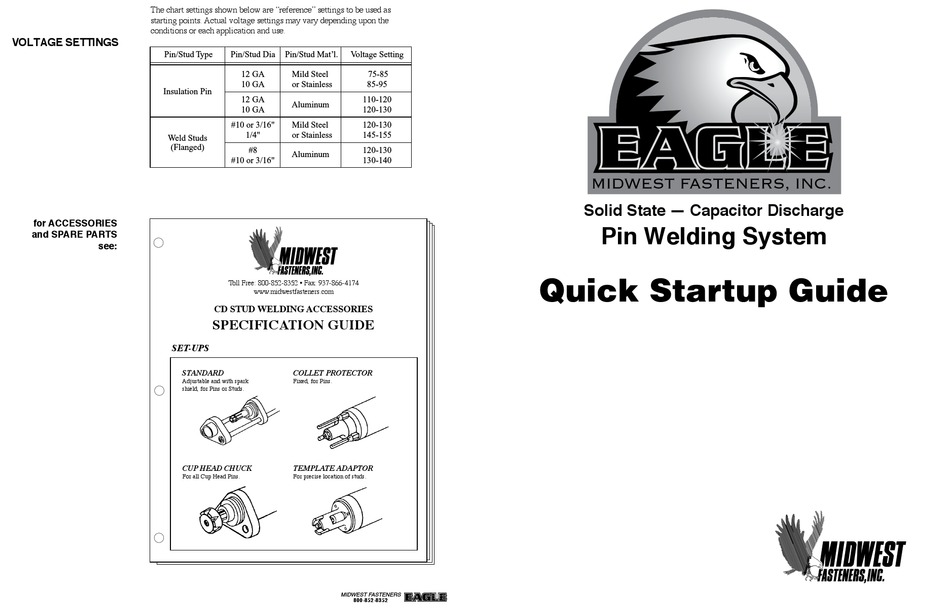

MIDWEST FASTENERS EAGLE Quick Start Up Manual

TROUBLESHOOTING

When troubleshooting the Eagle, the following precautions must be observed.
1. Controller power must be TURNED OFF and unplugged!
The chart settings shown below are "reference" settings to be used as
starting points. Actual voltage settings may vary depending upon the
E) Good, clean accessories and work surface to be welded, with proper
conditions or each application and use.
setup of all accessories.

VOLTAGE SETTINGS

Pin/Stud Type
Insulation Pin
Weld Studs
(Flanged)
NOTE: Be sure that proper observation of all safety precautions are
in place before performing the next step.
for ACCESSORIES
and SPARE PARTS
see:
8 ©2005 MIDWEST FASTENERS, INC. —
SET-UPS
STANDARD
Adjustable and with spark
shield, for Pins or Studs.
CUP HEAD CHUCK
For all Cup Head Pins.
Pin/Stud Dia Pin/Stud Mat'l. Voltage Setting
12 GA Mild Steel 75-85
10 GA or Stainless 85-95
12 GA 110-120
Aluminum
10 GA 120-130
#10 or 3/16" Mild Steel 120-130
1/4" or Stainless 145-155
#8 120-130
Aluminum
#10 or 3/16" 130-140
Toll Free: 800-852-8352 • Fax: 937-866-4174
www.midwestfasteners.com
CD STUD WELDING ACCESSORIES Eagle Pin Welding System
SPECIFICATION GUIDE
COLLET PROTECTOR
Fixed, for Pins.
TEMPLATE ADAPTOR
For precise location of studs.
MIDWEST FASTENERS
800-852-8352
MIDWEST FASTENERS, INC.
Solid State — Capacitor Discharge
Pin Welding System
Quick Startup Guide
