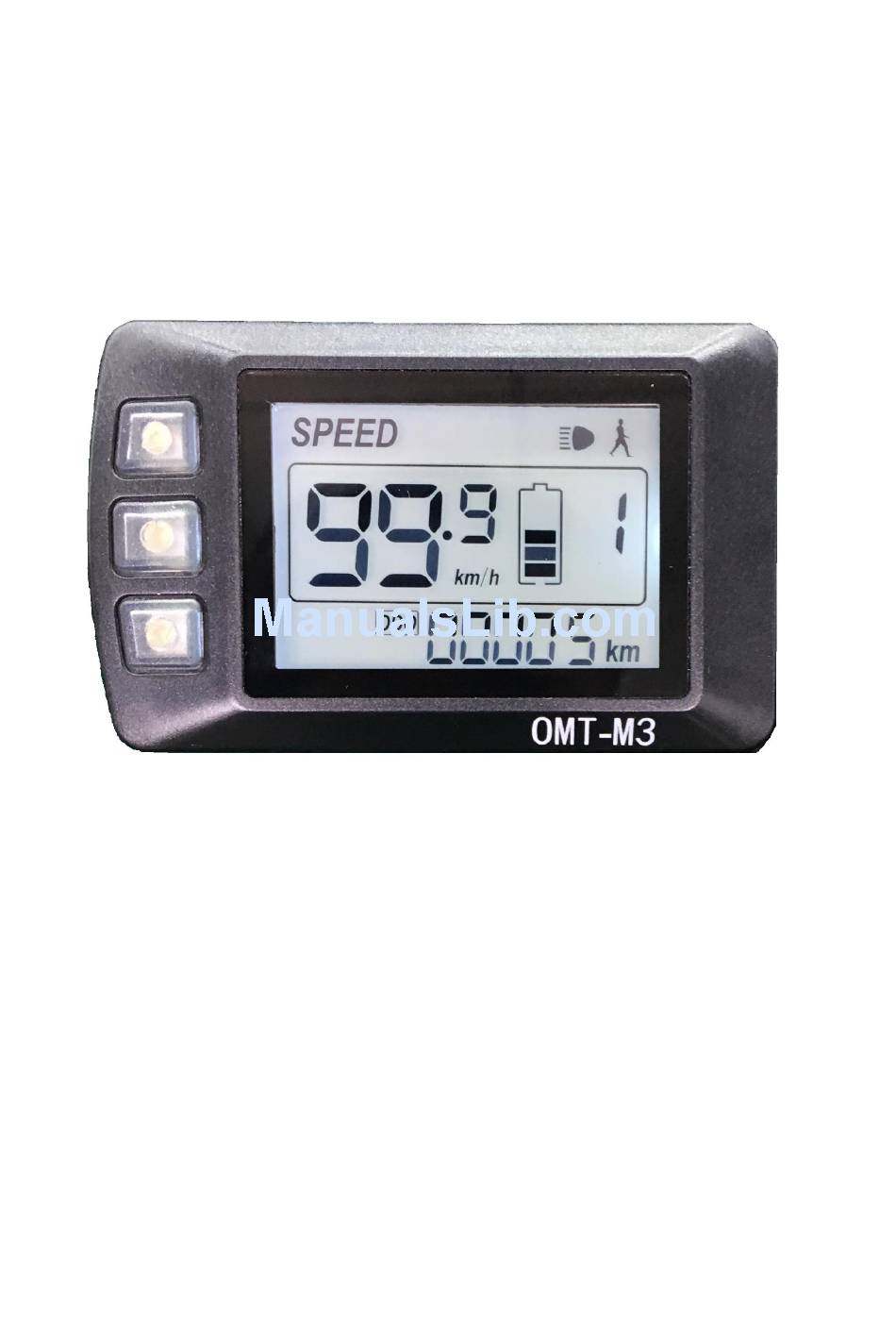

- Page 1 Manual OMT-M3 Ebike Intelligent Display Email：support@elecycles.com Website：www.elecycles.com...
- Page 2 1. Material&Dimension 1) Material Caser and Cover and Press button: ABS, LCD window: PMMA 2)Outside and mounting dimension(mm) Scew...
- Page 3 Connection diagram: To Head Light To Controller Wire definition: Red： Power supply-VCC Blue： Electronic lock-DS Black： GND Green： Data RXD Yellow： Data TXD BROWN： Head light(+) -DD White： Head light(-)-GND Remark： Connectors and Wire colors could be customized 5) Installation ●Install the display in the middle of handlebar, then adjust to suitable angle, install the press button to left side ofhandlebar.
- Page 4 2. Overview of OMT-M3 UART protocol: Equipped with independent press buttons Speed： Real-time SPEED, MAX SPEED, Average SPEED kmh/mile： Kmh/MPH according to habit Battery level： Indicates the battery level in real time Back light control： Press button for 3 seconds to power on/off Back light adjustment：...
-
Page 5: Error Code
From 1 to 3, press button to change assist level. Distance： ODO/Trip/Driving duration Error code： Please refer to appendix table 1 for definition 6km mode： In this mode, it will display on the screen. Parameter setting： Set parameters, such as: wheel size, speed limit etc 3. -
Page 6: Operation Instructions
1~3. Back light icon： indicates when back light are on. Distance： Trip/ODO. Error code： “REE” and code when there is error 4. Press button definition OMT-M3 uses independent press button, in total three buttons: Power DOWN “ ” “ ”... - Page 7 Figure 2 2) Different Speed display: Long press o switch different speed information， Real time speed（ SPEED）→ Max speed（ MAX SPEED） →Average speed（ AVGSPEED） Real Speed Figure 3...
- Page 8 Max speed Average speed Figure 4 Figure 5 3)ODO/TRIP/ Driving Time/Error Code Short press to switch ODO/TRIP/ Driving Time/Error Code Trip(Single trip distance)→ODO(Accumulated distance) → Driving Time )→REE(Error Code)。 Trip Figure 7 Figure 6 Driving Time Error Code Figure 8 Figure 9...
- Page 9 4)Assist level Short press to change assist level， default value is level 1 Level 5 Level 1 Figure 10 Figure 11 5) Back light control for 3 seconds turn on/off the back light. Long press Bike Light On Bike Light Off Figure 12 6) 6km mode When the bike is stopped, long press...
- Page 10 the speed will be 4.5~7.5km/h according to different road conditions, “ ” will show up on screen, long press again or short press will quit 6km/h mode. Long press or short press ， could be customized by clients. 6km Mode Figure 13 6.
- Page 11 change parameter value, short press will save current value and switch to next parameter. P01-back light lightness： short press will switch from 1 to 3, Level 3 is lightest. Level 2 is default value. Back Light Level 2 - default value Figure 14 P02-kmh/MPH：...
- Page 12 P03-Working voltage： short press to switch 24V,36V,48V, Default value is 36V. 36V by default Figure 17 P04-Auto shutdown time: short press to switch from 0 to 60, it is the time(in minutes) to shut down the screen automatically if no operation 0 means never shut down, Default value is 10 minutes 5minutes Figure 18...
- Page 13 Short press to change level 0->1->2. 0： 3 assist levels 1： 5 assist levels 2： 9 assist levels Assist Level Assist Level Figure 19 Figure 20 P06-Wheel size selection： short press to switch wheel size, in inch, step： 0.1 inch Wheel Size Figure 21 P07-Number of magnets for speed sensor：...
- Page 14 short press to switch fromt 1 to 100. Magnet quantity of Speed Sensor Figure 22 P08-speed limit： short press to set the speed limit from 0 to 100Km/h, 100 means no limit. Max Speed Limit Figure 23 P09-Non-zero speed start： short press to switch from0 to 1.
- Page 15 Zero speed start Figure 24 P10-Driving mode selection： short press to switch from 0->1->2. 0： Assist mode (throttle does not work, only assist); 1： Electrical driving mode(only throttle works, assist does not work) ; 2： Both assist and Electrical driving mode(Not available if in zero speed start and electrical driving mode);...
- Page 16 Assist sensitivity 3 Figure 26 P12-assist starting power setting: short press to switch from 0 to 5. Starting assist power Figure 27 P13-Assist magnetic disc types to switch from 5->8->12, different short press numbers of magnets.
- Page 17 Magnet quantity- 12 magnets Figure 28 P14-Current limit for the controller： short press to switch from 1 to 20A Max current in controller limits to 13A Figure 29 P15-low voltage protection for controller Controller is protected under 29V Figure 30...
- Page 18 P16-Reset ODO distance： long press during 5 seconds ODO reset to 0 Cleared to 0 Figure 31 Figure 32 P17-Reset all parameters： long press 5 seconds ， when it displays “SSSS” ， all parameters reset to default values(except for the ODO distance) SSSS means reset to default value Figure 33...
- Page 19 Max RPM of the motor is 270 Figure 34 P19-PAS Magnet calibration for the controller： short press to switch from 0 to 1 0 for calibration OK, 1 for start calibration Figure 35 P20-Number of magnets for freewheel speed sensor： short press to switch from 0 to 20...
-
Page 20: Specifications
4) Leakage current after power off: <1uA 5) Current supply to controller:50mA 6) Working Temperature： -18~65℃ Storage temperature： -30~80℃ 8. Error code definition When an error appears, OMT-M3 will notice users by different codes, please refer to table 1 for different codes: Code Signification (Decimal) - Page 21 2) Q： What can I do if an error code displays? A： Find a nearest shop to get repair 11. Warranty 1 year of warranty for quality issue except frame is broken. 12. Version This is a universal manual for OMT-M3.It could be customized by...
- Page 22 each client. Please confirm all details before purchasing.
