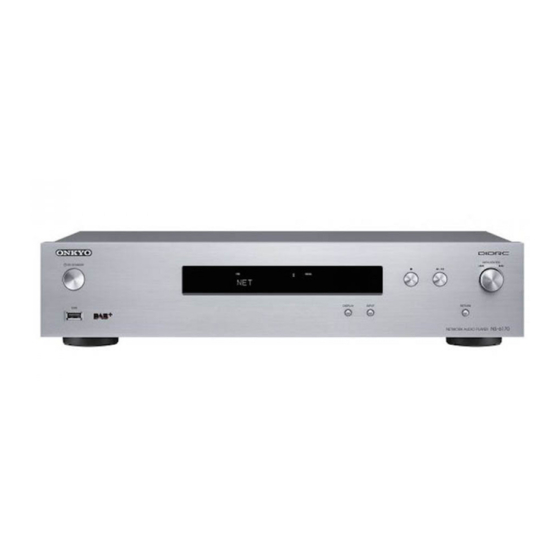

NETWORK AUDIO PLAYER
NS-6170
Instruction
Manual
> Install
> Initial Setup
> Playback
Supplementary information | Advanced Setup | Others
Before Start
What's in the box .................................................................... 2
Part Names
Front Panel ............................................................................. 3
Rear Panel .............................................................................. 4
Remote Controller .................................................................. 5
Display .................................................................................... 6
Install
Connections with an amplifier ................................................. 7
Connecting the antenna/power cord, etc. ............................... 9
Initial Setup
Power On & Initial Setup ...................................................... 10
USB Storage Device/HDD .................................................... 12
Internet Radio ....................................................................... 14
Spotify ................................................................................... 15
Listening to the FM Radio ..................................................... 16
Listening to DAB Digital Radio ............................................. 18
®
................................................................................ 19
Music Server ......................................................................... 20
Entering text ......................................................................... 22
Advanced Settings................................................................. 24
Firmware Update .................................................................. 28
Others
Troubleshooting .................................................................... 30
General Specifications .......................................................... 32
License and Trademark Information ..................................... 33
E
N
