Summary of Contents for Masterweld MWT3000-E

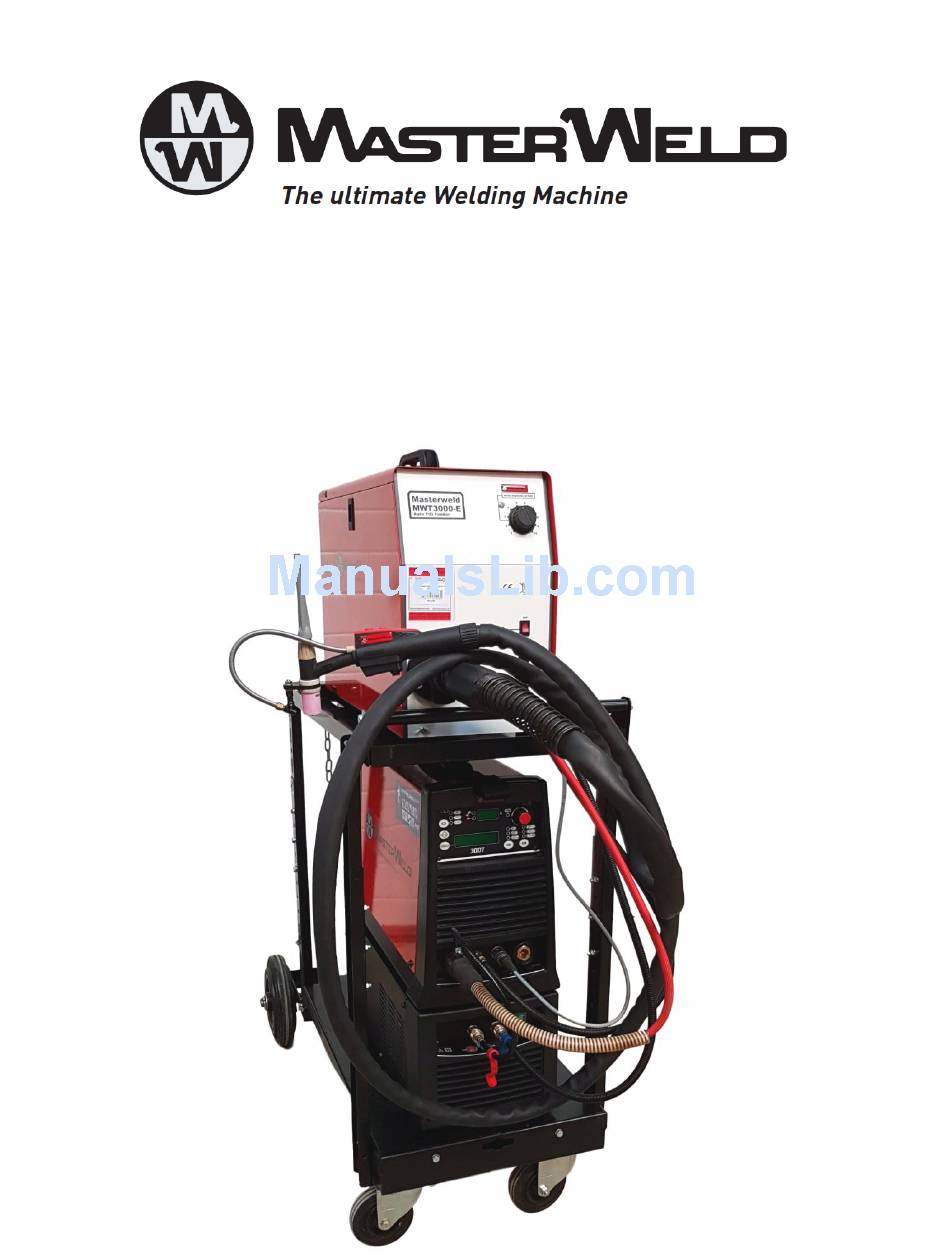

- Page 1 Masterweld MWT3000-E Auto TIG Feeder user manual...
-
Page 2: Declaration Of Conformity
We hereby declare that the products listed below are in compliance with the following European directives & EN standards. Product Masterweld MWT3000-E Auto TIG Feeder Description Cold wire TIG feeder for welding & brazing Directive 2006/95/EC (low voltage directive) Compliance with EN60974-1... - Page 3 MWT3000-E Auto TIG Feeder is a 4 roll drive wire feed unit, designed to work in conjunction with the Masterweld 221 ac/dc, 300T dc, and the 320 ac/dc power sources, to allow semi-automatic or fully automatic TIG welding or brazing of ferrous and non-ferrous metals.
- Page 4 The torch must be kept very straight when initially feeding the wire down to the head. Sensitivity control & range switch – located within the MWT3000-E Feeder The sensitivity knob also controls the start and stop of wire, this is located within the MW3000 Feeder.
- Page 5 Welding with this equipment Setting this up for the first time can be tricky, as there are so many variables involved. The wire feed head position is probably the most critical part. You should aim to be feeding the wire into the edge of the welding pool very close to the job, if it’s fed in too high or too close to the tungsten electrode there is a risk of tungsten contamination.
- Page 6 This should be no less than every six months and sooner in harsh operating conditions. This should include a documented electrical safety test. Welding machines cannot & should not be ‘PAT’ tested. If the machine is correctly maintained this machine should give a long trouble free life. www.masterweld.co.uk...
