Beyond Limits
USER MANUAL
Read carefully before using the device and save these instructions.

Advertisement

loading
Need help?

Need help?

Do you have a question about the RIFT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vivant RIFT

Summary of Contents for Vivant RIFT

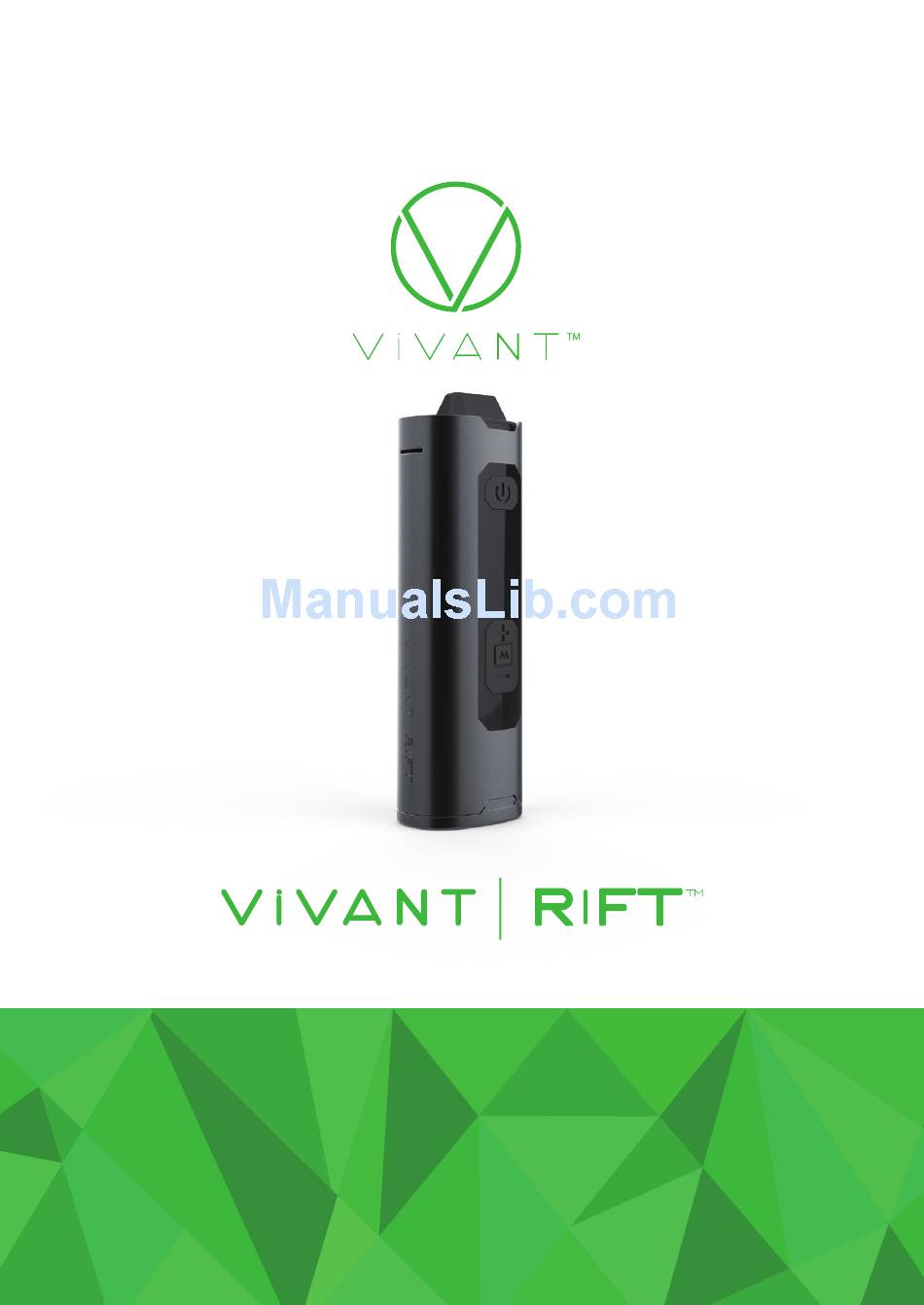

  • Page 1 Beyond Limits USER MANUAL Read carefully before using the device and save these instructions.
  • Page 2 Disclaimer This appliance can be used by person aged from 18 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

  • Page 3: Table Of Contents

    USER MANUAL Table of Contents.............Page 1. An Introduction to Your New RIFT Device........2 2. List of Components..............4 3. Getting Started...............6 4. Operating Instructions............10 5. Cleaning your RIFT..............19 6. Safety Information..............26 7. Warranty................31 8. Company Contact Information..........32...

  • Page 4: An Introduction To Your New Rift Device

    Designed for both dry-herb and concentrates, Vivant RIFT ™ is spearheading the industry to new level. Vivant RIFT ™ uses a revolutionary technology - RIFT technology which guarantees zero off-gassing or oxidation – unlike the plethora of lower quality, common ceramic heaters used in the industry.
  • Page 5 Introduction Mouthpiece Power Button LED Screen Menu Up Adjustment Button Down Adjustment Button Cleaning/Packing Rod Chamber Lock Airway Lock Mouth Piece Loading Door Lock Loading Chamber...

  • Page 6: List Of Components

    List of Components The RIFT kit comes with the following: 1 * ViVANT RIFT Device 1 * Cleaning Brush 1 * USB Cable 1 * Extra Cleaning/Packing 3 * Stainless Steel 1 * Quick Guide Rod With Silicone Key Concentrate Pad...
  • Page 7 List of Components Heater Seal Rings Mouthpiece Inner Silicone...

  • Page 8: Getting Started

    Getting Started Quickly press the power button 5x to turn the device on or off.
  • Page 9 Getting Started To load flower material Reverse or remove the mouthpiece. hold the device upside down, locate the lock switch on the bottom of the door and open the loading chamber by sliding the switch backwards.
  • Page 10 Getting Started Use the packing tool to pack your flower material into the three compartments evenly. three compartments...
  • Page 11 Getting Started To load concentrates and oils Insert the food grade, stainless steel meshes into three partitions of the bowl. Press the power button for 5 seconds to engage Turbo Mode heating - this will help you to melt the concentrates into the mesh more easily.

  • Page 12: Operating Instructions

    Operating Instructions 1.Menu: Press and hold the “M” button to go into menu. Options are as follows: FLOWER, CONCEN- TRATE, CUSTOM, Vibrate, and Temp Unit. Scroll through the options with the +/- buttons.
  • Page 13 Operating Instructions Single press the “M” button to enter the option you want. Enter “Vibrate” to select between vibration on or off.
  • Page 14 Operating Instructions Enter “Temp Unit” select Celsius or Fahrenheit as the temperature unit. 2. Settings: FLOWER - Scroll through the menu to “FLOWER” and single press the “M” button to enter selection.
  • Page 15 Operating Instructions b. CONCENTRATE - Scroll through the menu to “CONCENTRATE” and single press the “M” button to enter selection. c. CUSTOM - Scroll through menu to “CUSTOM” and single press the “M” button to enter selection.
  • Page 16 Operating Instructions Modes: Both Session and Turbo Mode can be used in any setting (FLOWER, CONCENTRATE, CUSTOM) Session Mode Quickly press the power button 3X to activate the session. Adjust session temp by scrolling with the “+” or “-” buttons. FLOWER: 421℉(216℃), 408℉(209℃), AAAAAAAAaaa396℉(202℃),383℉(195℃),...
  • Page 17 Operating Instructions Quickly press the power button or “M” button to set temperature. CUSTOM: Double click “M” button to adjust timer, single click “M” to select. (Time range:20s~300s) Session timer is 2 min for FLOWER & CONCENTRATE settings, it is adjustable up to 5 min for CUSTOM setting.
  • Page 18 Operating Instructions You have the option to add 30s before the session is over by double pressing the “M” button. The device will vibrate once it reaches the select temperature. Turn off session with 3 presses of the power button.
  • Page 19 Operating Instructions a. Turbo Mode Long press and hold the power button activate Turbo mode. (The Turbo mode can be activated any time, even durning a session.) When the bowl temperature is signficantly low, the device will notify you by vibrations before heating and once heating is over.
  • Page 20 Operating Instructions To use Turbo Mode for on demand vaping, once the initial heating is complete (the device will vibrate to notify you), simply press the power button while you are taking a hit. Turbo Mode will automatically raise temperature to the maximum for Flower and Concentrate setting for on-demand performance.

  • Page 21: Cleaning Your Rift

    Cleaning your RIFT Quick Cleaning: 1.Open the loading chamber. Wipe down the heating module and all related parts with a cue tip.
  • Page 22 Cleaning your RIFT Thorough Cleaning: 1.Open the loading chamber. Remove the packing tool.
  • Page 23 Cleaning your RIFT Flip the chamber lock in the direction of the arrow to unlock the loading cap. Remove the loading cap.
  • Page 24 Cleaning your RIFT 5.Remove the heater module. Dip the cue tips in a 50% alcohol solution. Wipe down the heating module and all related parts with a cue tip. Alcohol solution...
  • Page 25 Cleaning your RIFT Use the custom cleaning brush to clean the air tube. Soak heater module related parts (seals, mouthpiece, screens) with non-abrasive cleaning solution, dry them off with cue-tips and paper towels, and air dry for a few hours.
  • Page 26 Cleaning your RIFT Once the parts are dry, insert the heater module. Insert the loading chamber at a 30 degree angle into the pivot point on the body as show in the photo.
  • Page 27 Cleaning your RIFT With the chamber lock in the unlock position as shown by the circle, press the other side of the cap down until it is flat. Flip the chamber lock back to lock it.

  • Page 28: Safety Information

    Safety Information Your RIFT is built with three temperature sensors – one for the heater, one for the circuit board, and another for the battery. The built-in safety features prevents battery discharge when the circuit board is too hot, automatically pauses battery charging when the battery is too hot, and prevents battery discharge when the battery is too hot.
  • Page 29 Safety Information CAUTION HOT DO NOT ATTEMPT TO REMOVE THE HEATER WHILE IT IS HOT. Allow heater cool completely (approximately 5 minutes in room temperature) before removing it for cleaning. The display will say “Charge Protect” to indicate that it is not currently charging the battery.
  • Page 30 Safety Information The display will say “Device too hot” if the circuit board is too hot. This occur after extreme consecutive heat cycles in hot weather and when no air is flowing through it. It will automatically go away once the board cools. Device too hot The display will say “No heater”...
  • Page 31 DO NOT BANG OR SLAM DEVICE AGAINST A HARD SURFACE to remove material, as that may damage the body, hooks, or scratch the exterior. VIVANT will not warrantee damage to the device due to user negligence. Simply use the packing tool to...
  • Page 32 Safety Information Running multiple, consecutive sessions at the highest tempera- ture setting (~455F or 235C found in Custom or Concentrate Settings) may cause the loading cap on the device to get too hot to touch for some people. Please be aware of this look additional...

  • Page 33: Warranty

    Product failure or damage caused by using incompatible parts or wires (i.e. using the wrong power cable, etc.). Voiding the warranty is not limited to the conditions stated above. This warranty only covers authentic Vivant brand products and is valid for two years from the user’s date of purchase.

  • Page 34: Company Contact Information

    Contact Information Vivant Inc Address: 3589 Harbor Blvd, Costa Mesa, CA 92626 Email: info@vivant.com Tel: 1-844-8-vivant (1-844-8-848268) Web: www.vivant.com...
