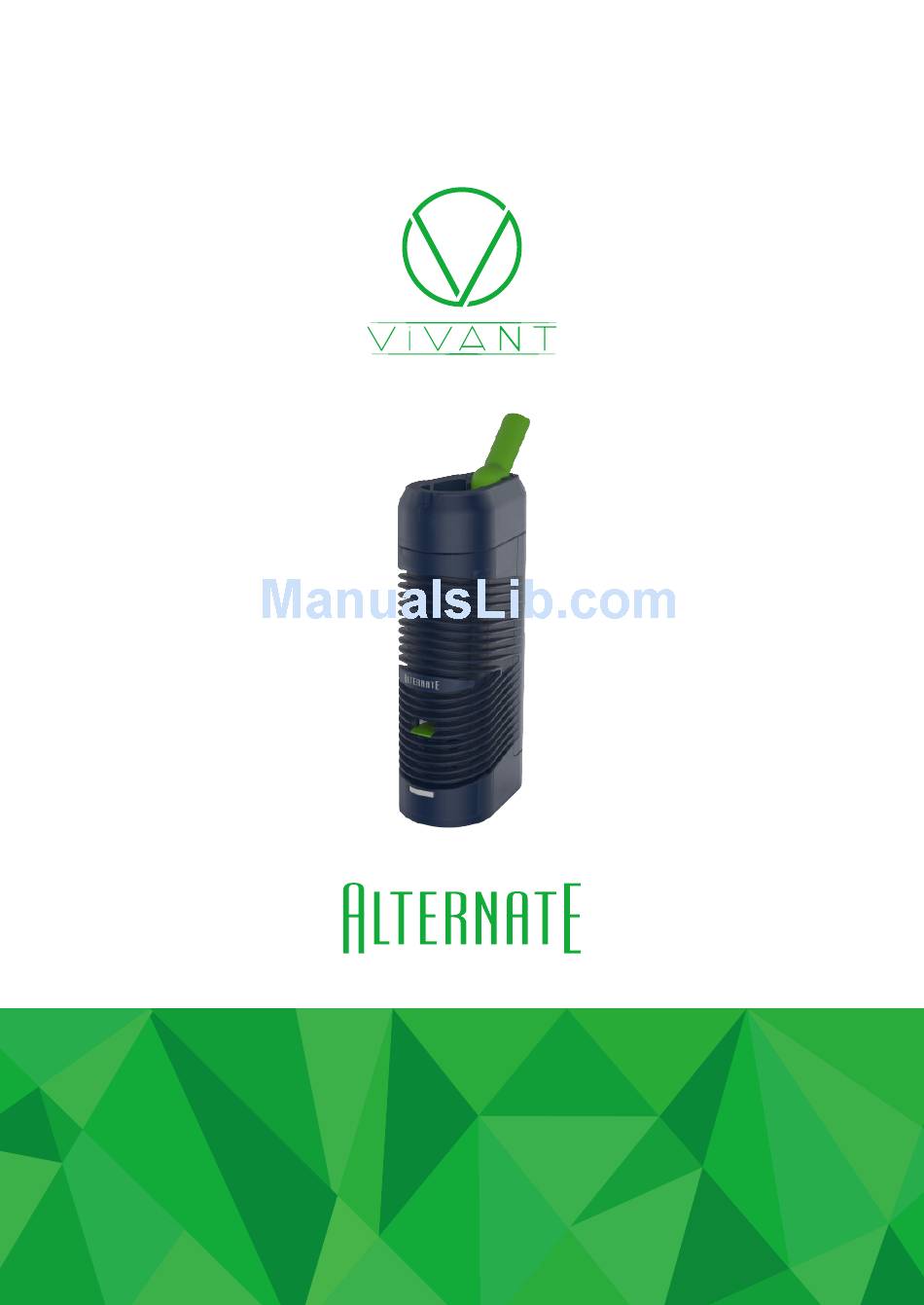

- Page 1 Redefining Tradition USER MANUAL Read carefully before using the device and save these instructions.
-
Page 2: Table Of Contents
USER MANUAL Table of Contents.............Page 1. An Introduction to Your New Alternate........2 2. Packaging List of Components...........4 3. Getting Started...............5 4.Cleaning Your Alternate............11 5. Tips for the User..............14 6. Safety Information..............18 7. Warranty................20 8. Company Contact Information..........21... -
Page 3: An Introduction To Your New Alternate

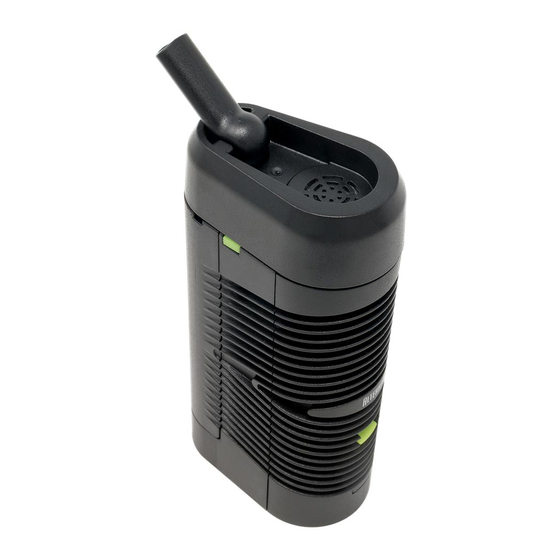

LED turns green the device is ready and will hold the desired temp steady for one minute. When the LED turns red please wait as the device is re-heating and will be ready again soon. The Alternate also features an industry first airflow control to customize your vaping experience. - Page 4 An Introduction to Your New Alternate Device Mouthpiece Top Cap Battery Cover Airflow Adjuster LED Light OLED Screen ON/OFF Button Regulatory Buttons...
-
Page 5: Packaging List Of Components
Packaging List of Components Things included in the box are following: 1*Stainless Steel 1* Alternate 1*Brush 1* USB Cable Concentrate Pad 1* Seal Ring 1* Quick Start Guide 1*Grinder Tool (Top Cap) -
Page 6: Getting Started
Getting Started Install battery in proper position. Be mindful of the positive and negative side. The device will not work if battery is installed incorrectly. Charge the device with a 1 amp charger via micro USB port on the unit. - Page 7 Getting Started Grind herbs using provided tool. Open chamber by twisting top cap counter clockwise.
- Page 8 Getting Started Getting Started Screw on the filling device. Remove the packing tool. Push ground material into the hole into the center of the unit. Push down into bowl with the packing tool.
- Page 9 Getting Started Fill chamber being mindful not to over pack. This will cause a reduction in airflow. Once you have replaced the top, press the power button 5 times consecutively to turn on the device. Choose your desired temperature using down buttons on the bottom of the unit.
- Page 10 Getting Started Press and hold the on/off Red LED button for 2 seconds until the unit beeps and the screen reads heat. Heat The red light on the unit will turn green and the screen will read ready when the unit has reached desired temp.
- Page 11 Getting Started Breath through mouthpiece with a slow and steady draw. Unit will auto shutoff after Press this button 5 times 60 seconds of non use. Press the on/off button 5 times rapidly. This powers off the unit and makes it safe for storage.
-
Page 12: Cleaning Your Alternate
Cleaning Your Alternate Ensure unit is powered off and battery is removed. Remove airflow assembly. Using a coin unscrew the airflow director allowing the assembly to be taken apart. - Page 13 Cleaning Your Alternate Pull the lower portion of the assembly with a small tool to expose the internal portion of the airflow unit. Remove the airflow valve.
- Page 14 Cleaning Your Alternate Use a solution of 1 part water 1 part *isopropyl alcohol* and the provided brush . Rinse and clean all pieces until all residue is removed. Allow parts to sit out and dry complete- ly before reassembling the unit.
-
Page 15: Tips For The User
Tips for User Airflow adjustment:Raise or push the airflow adjuster to control the amount of air taken into the device. Buzzer adjustment: In power-off state, long press the on/off button and up button to enter buzzer adjustment interface. Press two regulatory buttons to adjust buzzer volume from 1 to 5. - Page 16 Tips for User Stealth function: When the device is on, press the fire button and down button simultaneously to switch between stealth on and off. Key lock function: Long press the two regulatory buttons for 2 seconds to switch between “Lock” and “Unlock”. When the device is locked, press the regulatory buttons and the screen will display “Locked”...
- Page 17 Tips for User USB port function:The USB port can be used for charging and updating firmware. During charging, the battery icon is blinking. When the device is charged in power-on state, the screen turns blank after 30 seconds and displays charging icon;...
- Page 18 Tips for User Shift between ℃ and ℉: If you raise the temperature to 220℃ and continue to press the up button, the temperature reading will turn to the lowest Fahrenheit (158℉). Equally, if the temperature decreases below 70℃, the temperature reading will turn to 428℉...
-
Page 19: Safety Information
Safety Information Malfunction Indication: 1.Trouble Code 1 Indication: When there is a disconnection in the heat bar, the screen will display “Trouble Code 1”. 2.Trouble Code 2 Indication: When there is a short circuit in the heat bar, the screen will display “Trouble Code 2” 3.Trouble Code 3 Indication: When the resistance value of heating bar is below the normal range, the screen will display “Trouble Code 3”. - Page 20 5.Trouble Code 5 Indication: Whenthere is a shortcircuit in the TC sensor, the screen will display “Trouble Code 5”. Contra-indication: 1.Only have your product repaired by VIVANT. Do not attempt to repair the product by yourself as damage or personal injury may occur.
-
Page 21: Warranty
Warranty Please refer to your VIVANT product warranty card. We are not responsible for any damages caused by human error. Our warranty is not available for products purchased from a third party vendor. VIVANT agrees to provide after-sale service under warranty pursuant to the following terms and conditions: 1. -
Page 22: Company Contact Information
Company Contact Information Vivant Inc Address: 3059 Edinger Ave. Tustin, CA 92780 USA E-mail: info@vivant.com Tel: 1-844-8-vivant（1-844-8-848268） Web: www.Vivant.com...
