Omntec RD7CTS Installation Instructions

RD7CTS Remote Display
7
DISPLAY
IMPORTANT:
Read all instructions prior to starting installation process.
Do not apply power to the controller until installations and
wiring have been completed and inspected.
All work must be performed by authorized installers in
accordance with Local and National Electric Codes.

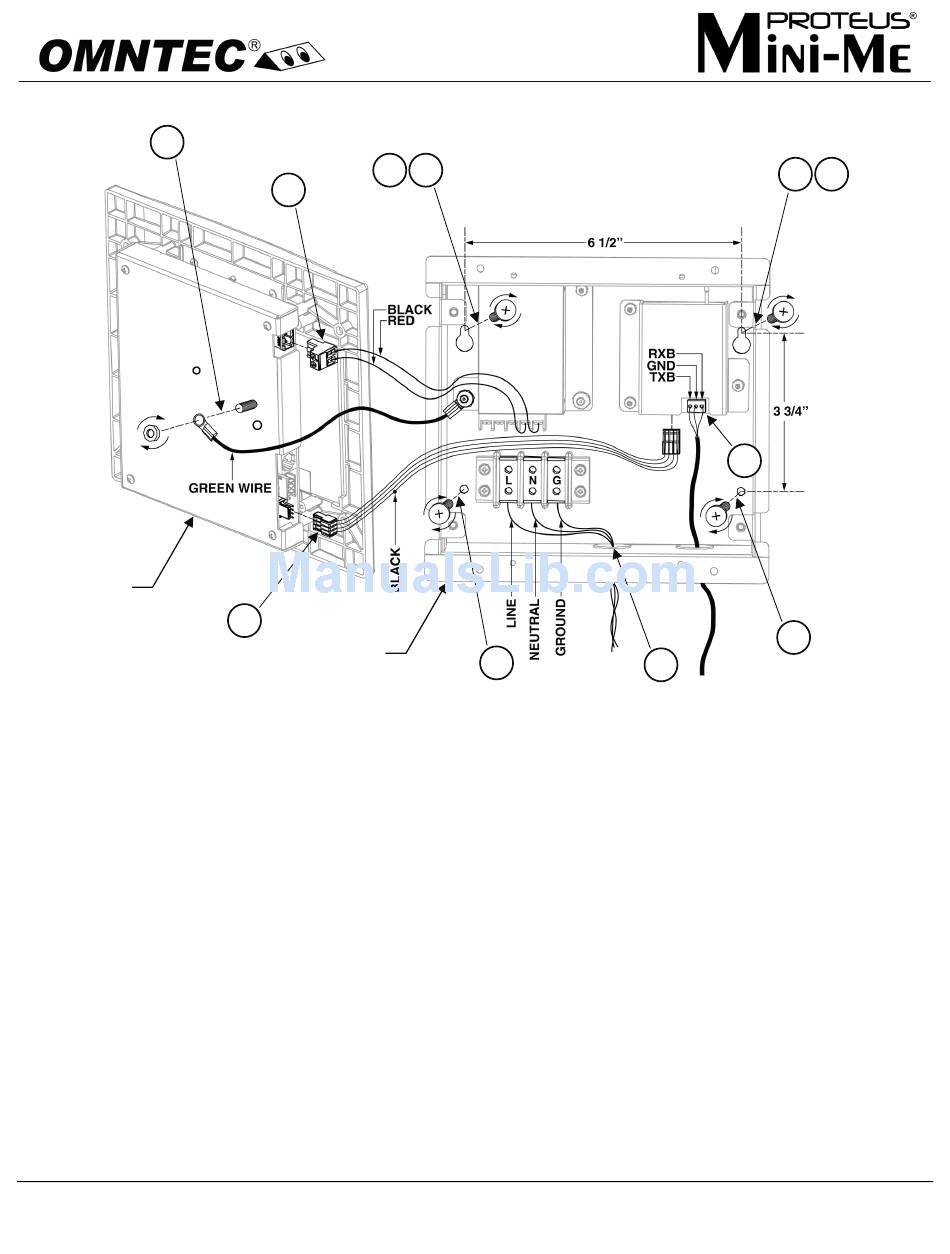

1. A) Using the supplied Allen Key wrench loosen
and remove the four Allen Screws that mount the
display to the base as shown in step 10.
B) Place the display face down on a flat surface
that will not cause damage to it.
C) Disconnect the green wire (7) by loosening and
removing the #10-32 nut and lockwasher from the
display back, do not misplace the nut and
lockwasher.
D) Unplug connectors (8) and (9) separating the
display from the base.
2. Measure base mounting dimensions and fasten
using supplied wall anchors and screws for top two
mounting holes leaving a minimum of ¼ inch of
thread exposed.
2
9
8
BASE
OMNTEC
Mfg., Inc., 1993 Pond Road, Ronkonkoma, NY 11779
Phone (631) 981-2001 Fax (631) 981-2007 www.OMNTEC.com
File Name: DI00028 rev2-0.doc Page 1 of 2 Rev: 2.0 Rev Date: 8-1-2013
3
4
3. Mount base onto top two screws. Secure once
step 4 is complete.
4. Fasten bottom two screws in base mounting holes
and secure.
5. Bring power wires (100-240 VAC) through left
preformed knockout and secure on terminal block
as shown above.
6. Bring low voltage RS232 cable (Quabbin 7325 or
equivalent) connection through right preformed
knockout and secure on terminal block as shown
above.
7. Securely fasten green wire as shown above.
8. Connect data harness making sure that black wire
is facing bottom of display as shown above.
9. Connect low voltage power harness as shown
above.
