- Page 1 INTEGRATED Assembly and Operating Instructions SIDE BURNER BSW316SA AUSTRALIA / NEW ZEALAND FOR OUTDOOR USE ONLY...
-
Page 2: Table Of Contents
CONGRATULATIONS CONTENTS Dear customer, General warnings ��������������������������������������������������������������������������3 Product description �����������������������������������������������������������������������4 Congratulations and thank you for choosing our barbecue� Gas specifications ��������������������������������������������������������������������������6 We are sure you will find it a pleasure to use� Before you use the barbecue, we recommend that you read through the Gas connection detail ��������������������������������������������������������������������6 relevant sections of this manual, which provide a description Natural gas installation�����������������������������������������������������������������7... -
Page 3: General Warnings
IMPORTANT SAFETY INSTRUCTIONS Please read the user manual carefully and store in a handy place for later reference� WARNING WARNING • Do not lean over barbecue when lighting. TIPS & INFORMATION IMPORTANT • Do not leave the barbecue unattended when alight. Important –... -
Page 4: Product Description

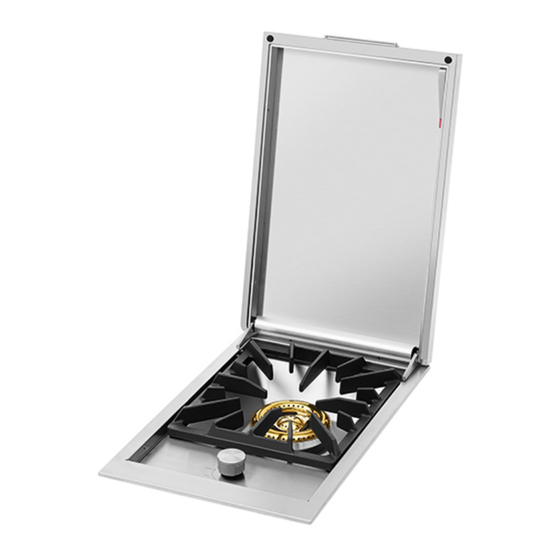

PRODUCT DESCRIPTION Integrated burner Slimline lid Gas connection point PRODUCT DESCRIPTION... - Page 5 PRODUCT DESCRIPTION Pivoting lid safety leg Lid mounting bracket Trivet Burner Burner control Reversible cast grill plate PRODUCT DESCRIPTION...
-
Page 6: Gas Specifications
GAS SPECIFICATIONS NATURAL GAS TYPE UNIVERSAL LPG Maximum gas 22 MJ/h 23 MJ/h consumption Injector office 2�10mm 1�25mm diameter Number of injectors Regulator 1�00 kPa 2�75 kPa pressure NOTES: • This appliance MUST be installed and serviced only by a qualified licensed person� •... -
Page 7: Natural Gas Installation
NATURAL GAS INSTALLATION LEAK TEST PROCEDURE This barbecue is supplied set up for Natural gas and is • Ensure gas valve is in the ‘OFF’ position� labelled accordingly� A Universal LPG conversion kit is • In a small container, mix a solution of water and detergent or supplied if required�... -
Page 8: Universal Lpg Installation
UNIVERSAL LPG INSTALLATION NOTE: Conversion of this unit to Universal LPG must be 2� Remove two screws fastening burner� carried out by a qualified licensed person and a Certificate of Compliance must be issued to the owner on completion of the installation and conversion�... -
Page 9: Gas Bottle Safety
UNIVERSAL LPG INSTALLATION GAS BOTTLE SAFETY 5� Replace burner and cover panel� Gas bottle safety information 6� Remove Natural Gas sticker on the base panel and • This appliance is designed to use a 9kg (20 lbs) replace with Universal LPG sticker provided� gas cylinder�... -
Page 10: Installation Warnings
GAS BOTTLE SAFETY INSTALLATION WARNINGS WARNING WARNING Connecting to a remote supply of LPG • This appliance shall only be used in an above ground, The components required to make this type of connection open air situation with natural ventilation, without are available as an accessory and can be purchased either stagnant areas, where gas leakage and products of on the Electrolux spare parts website or by contacting the... -
Page 11: Installation Instructions
INSTALLATION INSTRUCTIONS Installation warnings When planning the location and preparing the installation The mounting enclosure structure for this appliance note the following: • The barbecue requires a non-combustible barrier under • This appliance must be installed in accordance with the barbecue to prevent excessive temperatures being Australian Standard AS 5601 and in accordance with accessed�... -
Page 12: Dimensions
INSTALLATION INSTRUCTIONS DIMENSIONS Side view - lid up 71mm min� From cutout Side view - lid down Bench width 600mm min� Vent 250mm x 25mm (required 540mm when installed separately to barbecue) WARNING! • This appliance requires venting� This vent is to allow air into the enclosure for the correct combustion of gases and for the correct exhausting of the products of combustion�... -
Page 13: Gas Requirements
GAS REQUIREMENTS POSITIONING OF BURNER Installation warnings Natural Gas requirements • The enclosure must be constructed so that access can be gained to the Natural Gas regulator at all times� • For pipe sizing requirements for supply pipe refer to AS5601� Universal LPG requirements •... -
Page 14: Connecting To The Integrated Barbecue
CONNECTING TO THE INTEGRATED BARBECUE If the integrated burner is located adjacent to the built in Reversible cast grill plate barbecue and the units are to be connected to the same The integrated burner features a reversible grill plate outlet or cylinder, the gas line must branch off prior to the designed specifically to sit onto the cast iron trivet, ensure regulator�... -
Page 15: Burner Operation
BURNER OPERATION PIVOTING SAFETY LEG Installation warnings Control functions To ensure that the user remembers to turn off the gas before closing the lid, a pivoting safety leg has been fitted� Before lighting the burner: • Check that all hoses and gas fittings are tight� •... -
Page 16: Cleaning And Care
CLEANING AND CARE The Beefeater integrated burner has been constructed from Burner select grade stainless steel which, if not cared for, may The burner ports should be checked for blockages and discolour over time� To keep your appliance looking its best cleared as required�... -
Page 17: Troubleshooting
- Universal LPG not working or dirty optional extras * Manually light the burner weatherproof cover (for model BSW316SA) Excess smoke Gas valve set Turn gas valves down or being emitted too high turn off the burner + Standard inclusion with the product but can also be purchased from the separately via the Electrolux Customer Service Centre�... -
Page 18: Notes
NOTES NOTES NOTES... - Page 19 NOTES...
- Page 20 NOTES NOTES NOTES...
-
Page 21: Warranty
Warranty FOR SALES IN AUSTRALIA AND NEW ZEALAND APPLIANCE: BEEFEATER SIGNATURE BARBECUE 7. You may not make a claim under this warranty unless the defect claimed is This document sets out the terms and conditions of the product due to faulty or defective parts or workmanship. Electrolux is not liable in the warranties for Electrolux Appliances. - Page 22 For more information on all Beefeater products, or for dimension and installation information, call into your retailer, phone or email our customer care team or visit our website: AUSTRALIA phone: 1300 307 939 fax: 1800 356 669 email: customercare@electrolux.com.au web: beefeaterbbq.com...
