TECH300

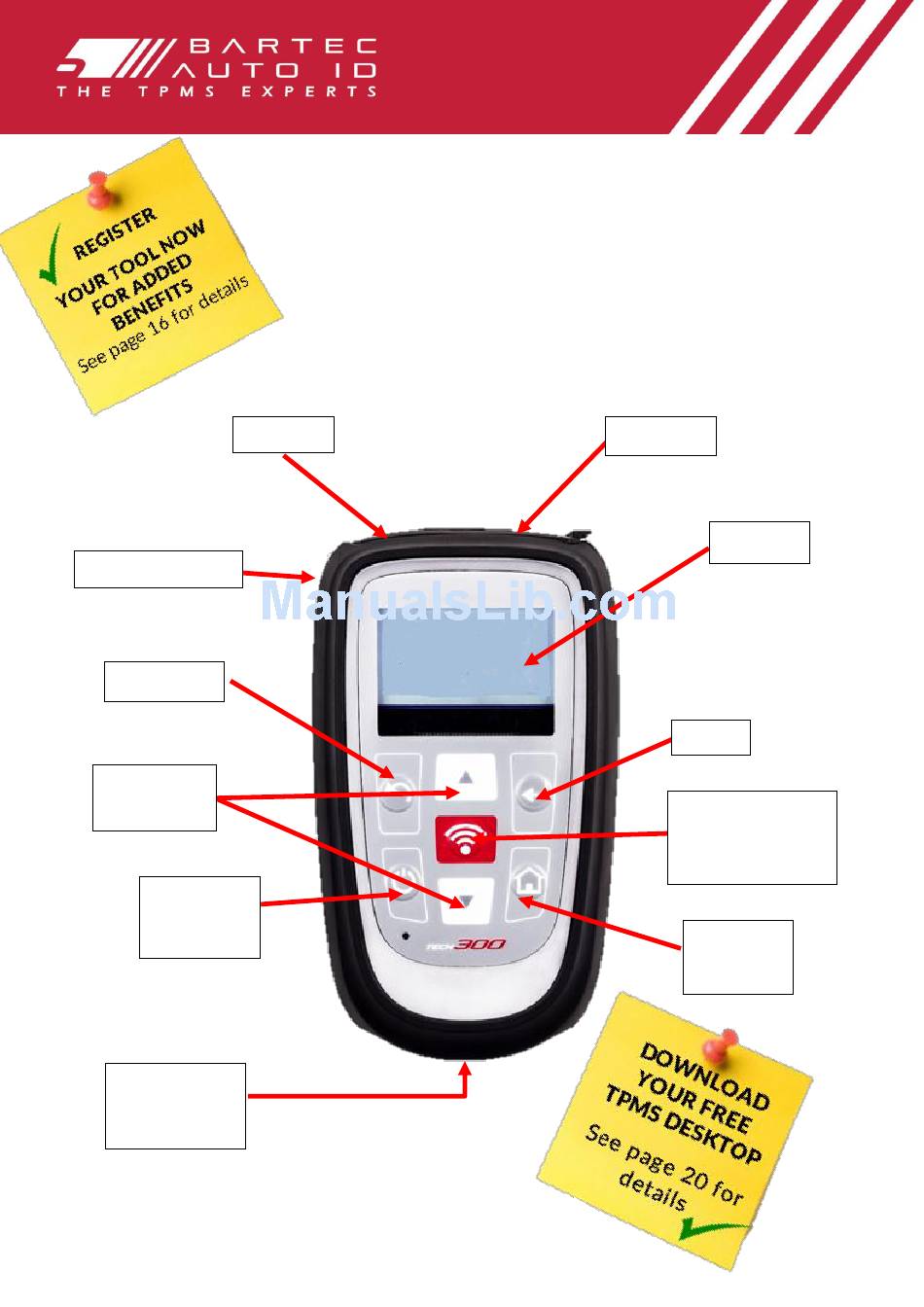

Tyre Pressure Monitoring System Tool
User Guide
SD Card
Mini USB
Display
Rubber housing
Back/Esc
Enter
Up/Down
navigation
Test:
commence a TPM
test, only works on
Vehicle Audit Screen
On/Off:
hold down for
a few seconds
Home:
returns to
Home menu
OBD cable
connector
(optional)
Bartec Auto ID Ltd.
SW Version: R.55.2 (English)
2017
Advertisement
Table of Contents
Related Manuals for Bartec Auto ID TECH300
Summary of Contents for Bartec Auto ID TECH300
- Page 1 Back/Esc Enter Up/Down navigation Test: commence a TPM test, only works on Vehicle Audit Screen On/Off: hold down for a few seconds Home: returns to Home menu OBD cable connector (optional) Bartec Auto ID Ltd. SW Version: R.55.2 (English) 2017...
-
Page 2: Foreword
T e c h 3 0 0 User Guide R.55.2 2 0 1 7 OREWORD Dear customer, Thank you for having chosen one of our tools. We are certain that it will give the utmost satisfaction and be a great help on the job. Please become fully familiar with the instructions in this user’s manual. -
Page 3: Table Of Contents
T e c h 3 0 0 User Guide R.55.2 2 0 1 7 ONTENTS ..................2 OREWORD ................3 IST OF ONTENTS ................ 4 MPORTANT OTICES ............... 4 AFETY RECAUTIONS ............... 6 EFORE ETTING TARTED ................. 7 EHICLE HECK .............. -
Page 4: Important Notices
T e c h 3 0 0 User Guide R.55.2 2 0 1 7 MPORTANT OTICES SAFETY DEFINITIONS All Danger, Warning, Important, and Note messages must be followed for your safety. These safety messages are in the following form DANGER: Means you may risk possible loss of life. WARNING: Means you may risk possible bodily harm. - Page 5 Unauthorised disposal of waste electrical and electronic equipment is punishable by law with appropriate penalties. Disposing of batteries The Tech300 contains a Lithium Polymer rechargeable battery which is not accessible to the user. Batteries must be recycled or disposed of properly. Do not throw batteries away as part of normal refuse disposal.
-
Page 6: Before Getting Started
ETTING TARTED 1. Charging NOTICE: Only use the power supply or USB cable that is included in the TECH300 tool kit to charge this tool. The use of un-approved power supplies may damage it and will void the tool warranty. -
Page 7: Vehicle Check
2 0 1 7 HARGING The TECH300 is shipped with a charged battery. It is recommended that the tool is charged 2+ hours before first use. For optimum performance, always keep it sufficiently charged. When there is an insufficient amount of power remaining in the battery, the TECH300 will flash its battery icon for two seconds, save all of the TPM Data and then power itself off. -
Page 8: Vehicle Audit Screen
T e c h 3 0 0 User Guide R.55.2 2 0 1 7 EHICLE UDIT CREEN Tool Positioning Do NOT touch the metal rim. The tool needs to point through the rubber at the sensor. Sensor Activation/ Test 1. LF activated sensors To test a sensor the tool should be placed alongside the valve stem and the ‘Test’... -
Page 9: Possible Readings
T e c h 3 0 0 User Guide R.55.2 2 0 1 7 OSSIBLE EADING CENARIOS Note that if a faulty TPM sensor has been replaced, some method of relearn procedure will need to be followed, as explained later in this manual. Successful Sensor Read TPMS sensor was successfully activated and decoded. -
Page 10: Successful Sensor Read
Allows to test the signal strength emitted by a remote keyless entry. Select RKE Test, hold the Key Fob and press the function buttons on the Fob. The TECH300 will indicate the strength of the signal. When performing relearn processes that use the Key Fob it is important to verify that the Key Fob is transmitting. -
Page 11: Program Sensor
T e c h 3 0 0 User Guide R.55.2 2 0 1 7 ROGRAM ENSOR The “Program Sensor” menu on the home screen enables the function of programming aftermarket replacement sensors like the Alligator sens.it or the Schrader EZ-sensor. Even when they are already mounted in a wheel or programmed to another vehicle. -
Page 12: Relearn
Allows to test the signal strength emitted by a remote keyless entry. Select RKE Test, hold the Key Fob and press the function buttons on the Fob. The TECH300 will indicate the strength of the signal. When performing relearn processes that use the Key Fob it is important to verify that the Key Fob is transmitting. - Page 13 It can take up to 20 minutes to relearn the TPM IDs. OBD Relearns: OBD connection allows the TECH300 to directly program the vehicle electronics module with TPM IDs. Note that not all vehicles support vehicle communications modes.
-
Page 14: Istoric Ata
RKE Test Select RKE Test, hold the Key Fob and press the function buttons on the Fob. The TECH300 will check only for a signal present. When performing relearn processes that use the Key Fob it is important to verify that the Key Fob is transmitting. -
Page 15: M Y Tool
Note: can only be used if US coverage is downloaded on the tool. Usage View the number of Power Cycles, Sensor Activations and OBD Relearns. Support On screen reference for Bartec Auto ID Ltd support. Workflow Vehicle No. Allows the user to select different formats of licence plates. -
Page 16: Egistration
To register a tool, navigate to the Bartec TPMS website at tools.bartecautoid.com The first page is the TPMS Tool Support Center page, showing the TECH300 and the TPMS PAD latest software release versions. Select ‘Register’ to create a new account. It is important to fill in all fields completely and accurately. - Page 17 T e c h 3 0 0 User Guide R.55.2 2 0 1 7 After Login, the personal settings will show, which can be changed as required. Selecting Tools gives the user the option to register a new tool. The serial number is printed on the back of the tool or in ‘My Tool’...
- Page 18 > TPMS Dropdown menu > TPMS Support > SW Update Guide. Step 1: UPDATE MODE V5 Power on the TECH300, select My Tool from the Main Menu, select Software Updates and select Enter INSERT USB LEAD Update Mode. TO TRANSFER Tool will prompt user to “Insert USB Lead to Transfer...
-
Page 19: Changing From Eu T O
US Coverage The file will be downloaded onto your computer. Connect the TECH300 to the computer via USB cable, click and drag the file from the computer’s download section onto the removable disk of the TECH300. Once the update is completed the tool is ready to switch from EU coverage to USA coverage. -
Page 20: Tpms Desktop
The TPMS Desktop provides revolutionary technology to help manage Bartec TPMS tools on the computer. The TPMS Desktop is designed to work with the following Bartec tools; TECH400, TECH500, TECH300, TAP100/200 and the TPMS PAD. https://tools.bartecautoid.com/tpmsdesktop/ download your FREE copy now! - Page 21 ETTINGS To be able to use the TECH300 with Bluetooth, the tool first needs to be configured. Go to My Tool > Networks > Bluetooth and choose ‘Enabled’. If there are problems using the built-in Bluetooth, the user can use a USB dongle. Select Devices and Printers in Control Panel.
-
Page 22: Appendix
PPENDIX APPENDIX A: Vehicle Identification Number VIN) When using the TECH300 tool, it is important for the user to verify the Model Year to help insure looking for that proper sensor and using the proper vehicle Digit in COMs when necessary. - Page 23 “Park”, as otherwise it will not work on the vehicle. The TECH300 tool has the ability to perform the necessary mode change. If a sensor is shown as “Ship”, “Test” or “Off” and the relearn toolkit provides the option “Set Sensor to Park Mode”, please use this option to change the sensor mode into the correct one: ...
-
Page 24: Bartec Product Range
