Bartec Auto ID TDR100 User Manual

Tread reading tool
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TDR100
Tread Reading Tool
User Guide
TDR100 V1.0
June 2024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TDR100 and is the answer not in the manual?

Questions and answers

Related Manuals for Bartec Auto ID TDR100

Summary of Contents for Bartec Auto ID TDR100

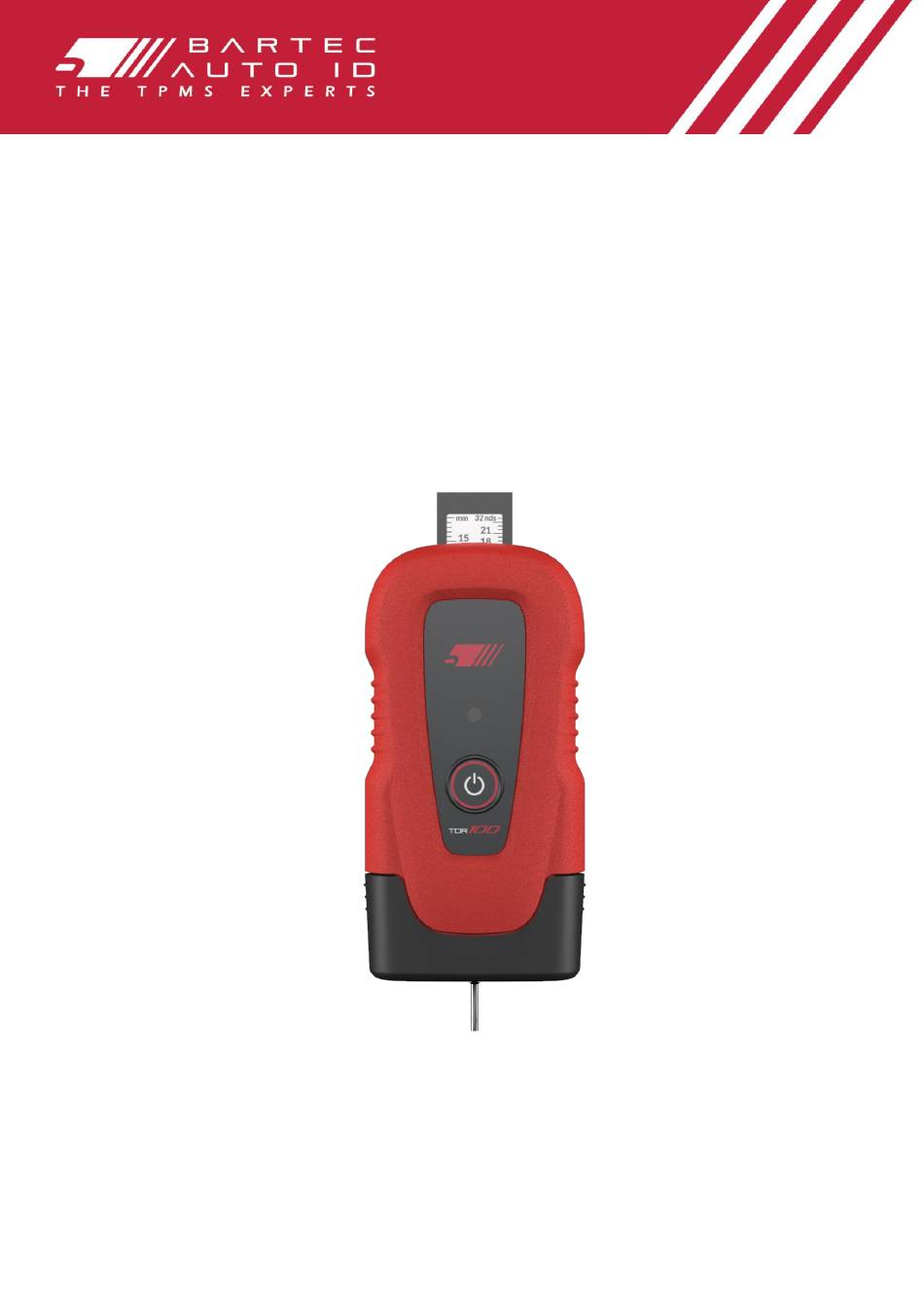

  • Page 1 TDR100 Tread Reading Tool User Guide TDR100 V1.0 June 2024...

  • Page 2: Table Of Contents

    TDR100 USER GUIDE LIST OF CONTENTS LIST OF CONTENTS ..................... 2 IMPORTANT NOTICES ..................3 SAFETY PRECAUTIONS ..................4 TOOL LAYOUT ...................... 6 FITTING BATTERIES ..................... 7 POWER ON ......................8 CONNECTING TO THE TPMS TOOL VIA NEW SERVICE – MMY ..... 9 REGISTRATION ....................

  • Page 3: Important Notices

    TDR100 USER GUIDE IMPORTANT NOTICES SAFETY DEFINITIONS All Danger, Warning, Important, and Note messages must be followed for your safety. These safety messages are in the following form DANGER: Means you may risk possible loss of life. WARNING: Means you may risk possible bodily harm.

  • Page 4: Safety Precautions

    Unauthorised disposal of waste electrical and electronic equipment is punishable by law with appropriate penalties. BATTERIES • The TDR100 contains 2 x AAA batteries which are replaceable. WARNING • CAUTION: Risk of fire or explosion if the battery is replaced by an incorrect type.
  • Page 5 Serial number must stay readable, and proof of purchase must be retained for presentation upon request. Manufacturer’s name : Bartec Auto ID Ltd Manufacturer’s address: Unit 9 Redbrook Business Park...

  • Page 6: Tool Layout

    TDR100 USER GUIDE TOOL LAYOUT Manual Tread Gauge Power on/off light Power Tread P a g e...

  • Page 7: Fitting Batteries

    TDR100 USER GUIDE FITTING BATTERIES 1. Remove the end cap by pressing in firmly at either side of the end cap. 2. Pull outwards to release the end cap from the Tool. 3. Insert the batteries as shown. 4. Press firmly on either side of the end cap, align the casing &...

  • Page 8: Power On

    TDR100 USER GUIDE POWER ON 1. Press the power on/off button. 2. The GREEN power light will show when turned on. Note, to conserve battery, the Tool will automatically power off if the tread depth measurement reading does not change for a period of 30 seconds. In this case, press the power button to turn the Tool on again.

  • Page 9: Connecting To The Tpms Tool Via New Service - Mmy

    TDR100 USER GUIDE CONNECTING TO THE TPMS TOOL VIA NEW SERVICE – MMY Make sure your TPMS Tool has version 6.0 software or higher. If not, then you must update the software of your TPMS tool before connection can be made.
  • Page 10 TDR100 USER GUIDE Depending on the vehicle you are working on, you may be asked to select a qualifier, such as Indirect or Direct TPM system. This will take you to the Service screen where you will then need to select the Check option followed by the Wheel &...

  • Page 11: Registration

    TDR100 USER GUIDE REGISTRATION Following a service and transferring of data, your Tool will automatically be registered to the account that your TPMS tool is registered to. CALIBRATION This message will appear on the TPMS Tool when you first use the Tool, and when the Tool needs calibrating.

  • Page 12: Correct Use Of The Tool

    TDR100 USER GUIDE CORRECT USE OF THE TOOL Before taking a tread reading, ensure the pin is pushed out by pressing the manual tread gauge down. Once the pin is in position press the Tool down so that it is flat to the tyre.

  • Page 13: Taking A Tread Reading

    TDR100 USER GUIDE TAKING A TREAD READING Follow the sequence indicated on the TPMS Tool, starting at the Left Front (LF) Tyre. Position the Tool correctly on the outer edge of the trye, the Tool will BEEP when the reading has been taken.
  • Page 14 TDR100 USER GUIDE After entering the measurement for each wheel, you will be prompted to select one of the following statuses: Damaged Tyre Damaged Wheel Worn Tyre Aged Tyre Questionable Condition 14 | P a g e...

  • Page 15: Technical Specification

    2.4GHz - 1mW maximum power output. Simplified EU Declaration of Conformity Bartec Auto ID Ltd hereby declares that this device is in compliance with the essential requirements and other provisions of Directive 2014/53/EU (RED). The full text of the EU Declaration of Conformity is available at: https://www.bartecautoid.com/pdf/declaration-of-ce-conformity-tdr100-english.pdf...
