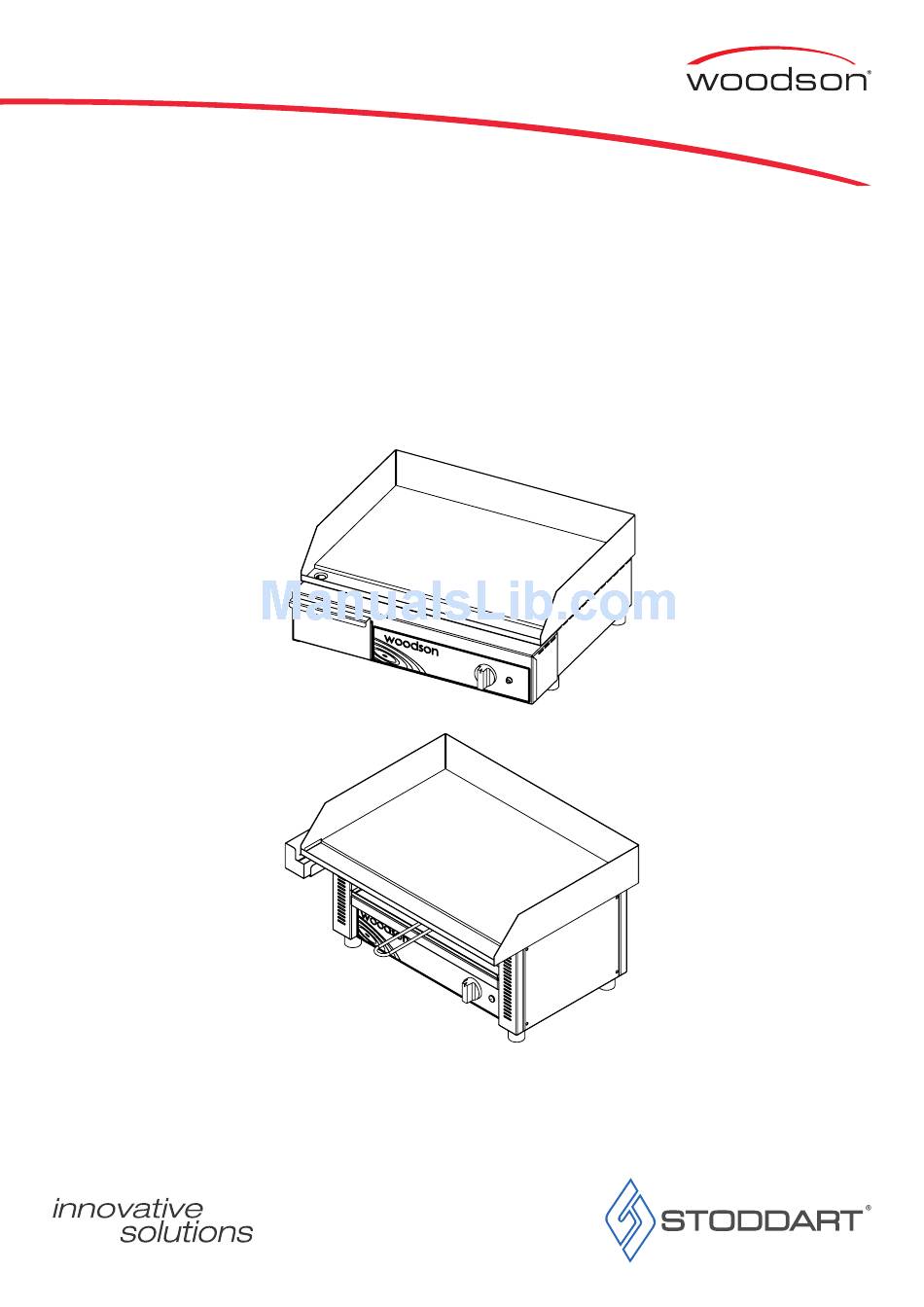

- Page 1 Specification, Installation and Operation Manual Woodson Griddle & Griddle Toaster Models: W.GDA50, W.GDA60, W.GDT65 & W.GDT75 A guide on the use, care and maintenance of your quality Woodson product Rev: B - 27/07/2018...
- Page 2 Page Intentionally Left Blank Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 1...
- Page 3 Your New Woodson Product � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �...
-
Page 4: Your New Woodson Product
Your New Woodson Product Thank you for choosing this quality Woodson product� All our products are designed and made to meet the needs of food service professionals� By using, caring and maintaining your Woodson product according to these instructions, your Woodson product should give you many years of reliable service�... -
Page 5: General Information
Introduction Attention Carefully read this instruction booklet, as it contains important advice for safe installation, operation and maintenance� Keep this booklet on hand in a safe place for future reference by other operators or users� Disclaimer The manufacturer and distributor cannot be held responsible or liable for any injuries or damages of any kind occurred to persons, units or others, due to abuse and misuse of this unit in regards to installation, un-installation, operation, servicing or maintenance, or lack of conformity with the instructions indicated in this documentation�... -
Page 6: Installation
Installation Setting Up WARNING Improper installation, adjustments, alterations, service or maintenance can cause property damage, injury or death. Handling • Use suitable means to move the unit: eg� A lift truck or fork pallet trucks (the forks should reach more completely beneath the unit) Unpacking •... -
Page 7: Electrical Connection
Installation Electrical Connection WARNING This unit must be installed in accordance with AS/NZS 60335.1 Information Aggregate electrical ratings of the Unit are expressed in kilowatts in this manual� Single Phase Units: Supplied with an appropriately rated plug and lead fi tted and be indicated as: •... -
Page 8: Technical Specifications
Specification Technical Specifications W.GDA50 Specifications Model W.GDA50 Height 235mm Width 525mm Depth 450mm Power 2.2kW AMPS 10A plug & lead fitted Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz... - Page 9 Specification W.GDA60 / W.GDA60HR Specifications Model W.GDA60 / W.GDA60HR Height 236mm Width 675mm Depth 600mm Power 4.4kW AMPS 20A plug & lead fitted Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 8...
- Page 10 Specification W.GDT65 Specifications Model W.GDT65 Height 330mm Width 570mm Depth 450mm Power 3.6kW AMPS 15A plug & lead fitted Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 9...
- Page 11 Specification W.GDT75 / W.GDT75HR Specifications Model W.GDT75 / W.GDT75HR Height 330mm Width 720mm Depth 630mm Power 4.4kW AMPS 20A plug & lead fitted Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 10...
-
Page 12: Initial Start-Up & Operation
Operation Initial Start-up & Operation Initial Start-up Upon setting up your equipment, the following steps must be followed: 1� Read the complete instruction manual before proceeding 2� Plug the unit into a power source� Ensure the electrical cable is not damaged and does not hang over the counter Operation This Griddle has full stainless steel construction�... - Page 13 Operation Cleaning General Information • Cleaning is recommended for health and safety purposes and to prolong the life of the unit • Do NOT use abrasive pads or cleaners on the stainless steel or any other metal parts of the unit •...
-
Page 14: Cleaning Schedule
Operation Cleaning Schedule • Daily cleaning is required for Griddles, Griddle Toasters and external surfaces� This will help to maintain and prolong the efficiency of your unit • The unit should be cleaned at the end of each work day Materials Required •... -
Page 15: Troubleshooting
Operation Troubleshooting WARNING Technician tasks are only to be completed by qualified service people. Check faults before calling service technician. Task Type - (O) = Operator (T) = Technician Task Problem Possible Causes Task Possible Corrective Action Unit not turned “on” at the Unit not heating Turn power to “on”... - Page 16 Australia Service / Spare Parts Sales Tel: 1300 307 289 Tel: 1300 79 1954 Email: service@stoddart.com.au Email: sales@stoddart.com.au Email: spares@stoddart.com.au www.stoddart.com.au Australian Business Number: 16009690251 New Zealand Service / Spare Parts Sales Tel: 0800 935 714 Tel: 0800 79 1954 Email: service@stoddart.co.nz Email: sales@stoddart.co.nz Email: spares@stoddart.co.nz...
