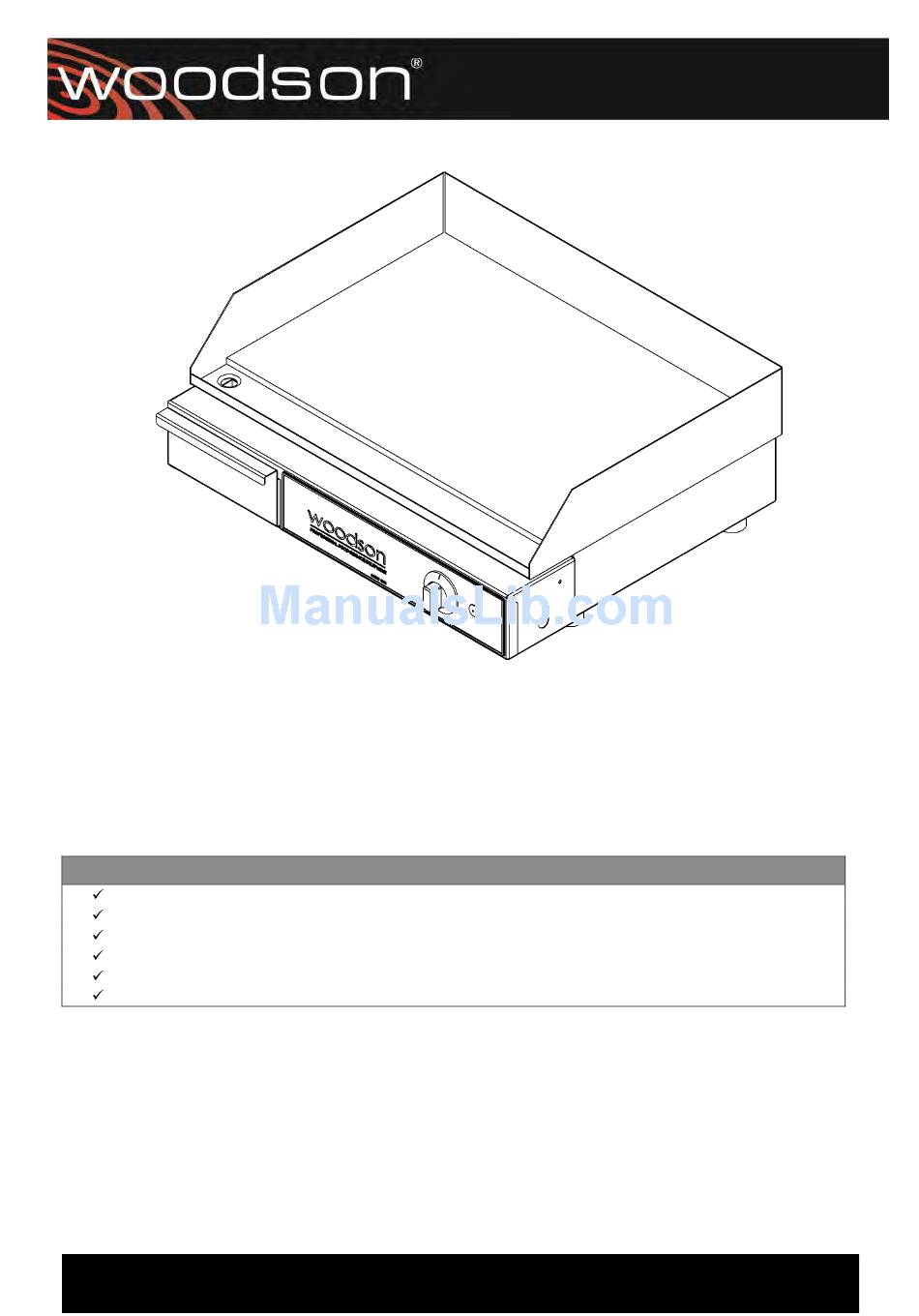

INSTALLATION,OPERATION & MAINTENANCE
Woodson Griddle – WGDAxx
WOODSON GRIDDLE & LARGE GRIDDLE
Models WGDA50 & WGDA60
FEATURES
Large flat surfaced fryer for burgers, bacon, eggs, steaks etc.
8mm thick cast steel hot plate – 520mm x 330mm (WGDA50) or 670mm x 484mm (WGDA60)
Removable grease drain drawer
Thermostat control and pilot light to indicate power on
Stainless steel construction
Capacity for 8 x 7 oz steak (WGDA50) or 14x 7 oz steaks (WGDA60)
Due to continuous product research and development, the information contained herein is subject to change without notice
Tel: 1300 79 1954 Web: www.stoddart.com.au
Email: fse@stoddart.com.au
Advertisement
Table of Contents
Related Manuals for Woodson WGDA50
Summary of Contents for Woodson WGDA50
- Page 1 FEATURES Large flat surfaced fryer for burgers, bacon, eggs, steaks etc. 8mm thick cast steel hot plate – 520mm x 330mm (WGDA50) or 670mm x 484mm (WGDA60) Removable grease drain drawer Thermostat control and pilot light to indicate power on...
-
Page 3: Table Of Contents
INSTALLATION,OPERATION & MAINTENANCE Woodson Griddle – WGDAxx Table of Contents General Recommendations .................3 General Safety ........................3 Service ........................3 Sharp Edges ......................3 Power Cables......................3 Introduction........................4 Product Overview....................4 Specifications........................5 Technical Specifications..................5 Technical/Connection Diagram................6 WDGA50 ....................... - Page 4 INSTALLATION,OPERATION & MAINTENANCE Woodson Griddle – WGDAxx Electrical Diagrams................... 20 WGDA50 ......................20 WGDA60 ......................21 Spare Parts/ Assembly Diagram ................ 22 WGDA50 ......................22 WGDA60 ......................23 Warranty ......................24 Appendix 1 – Australian Warranty and Importer/Distributor Contact Details......24 Australian Warranty Policy &...
-
Page 5: General Recommendations
INSTALLATION,OPERATION & MAINTENANCE Woodson Griddle – WGDAxx General Recommendations ATTENTION Carefully read this instruction booklet, as it contains important advice for safe installation, operation and maintenance. Keep this booklet on hand in a safe place for future reference by other operators or service technicians. -
Page 6: Introduction
Woodson Griddle – WGDAxx Introduction The Woodson Griddle and Large Griddle have been specifically designed to meet the rigorous demands of a busy food service operation. The Woodson WGDA50 and WGDA60 are ideal for frying foods such as burgers, bacon, eggs, steaks etc. -
Page 7: Specifications
INSTALLATION,OPERATION & MAINTENANCE Woodson Griddle – WGDAxx Specifications Technical Specifications SPECIFICATIONS Model WGDA50 WGDA60 Height 236mm 236mm Width 525mm 672mm Depth 452mm 599mm Voltage 240V 240V Power 2400W 4800W Connection 10A Plug and Lead 20A Plug and Lead Amps Plate size... -
Page 8: Technical/Connection Diagram
INSTALLATION,OPERATION & MAINTENANCE Woodson Griddle – WGDAxx Technical/Connection Diagram WDGA50 Due to continuous product research and development, the information contained herein is subject to change without notice Tel: 1300 79 1954 Web: www.stoddart.com.au Email: fse@stoddart.com.au Page 6... -
Page 9: Wgda60
INSTALLATION,OPERATION & MAINTENANCE Woodson Griddle – WGDAxx WGDA60 Due to continuous product research and development, the information contained herein is subject to change without notice Tel: 1300 79 1954 Web: www.stoddart.com.au Email: fse@stoddart.com.au Page 7... -
Page 10: Installation
INSTALLATION,OPERATION & MAINTENANCE Woodson Griddle – WGDAxx Rating Plate The rating plate of the appliance contains identification and technical data and is located on the unit as shown below. Sample Only Due to continuous product research and development, the information contained herein is subject to change without notice Tel: 1300 79 1954 Web: www.stoddart.com.au... -
Page 11: Installation
INSTALLATION,OPERATION & MAINTENANCE Woodson Griddle – WGDAxx Installation General Precautions Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death. Read the installation, operating and maintenance instructions thoroughly before installation, maintenance • or servicing this equipment Do NOT use this appliance for other than its intended use. -
Page 12: Setting Up
INSTALLATION,OPERATION & MAINTENANCE Woodson Griddle – WGDAxx Setting Up Handling Use suitable means to move the appliance: eg. A lift truck or fork pallet trucks (the forks should • reach more than halfway beneath the appliance). Site Preparation Ensure the site is level and properly cleaned. -
Page 13: Electrical Connection
Information The electrical supply shall comply with the rating plate data. • The WGDA50 is supplied with a 10Amp plug and lead. The WGDA60 is supplied with a 20Amp plug and • lead. Ensure that machine is connected to a power point with compatible power rating. -
Page 14: Operation
INSTALLATION,OPERATION & MAINTENANCE Woodson Griddle – WGDAxx Operation General Recommendations When using any electrical appliance, safety precautions should always be observed. Our appliances have been designed to give high performance. Hence, the appliance must be used exclusively for the purpose for which it has been designed. -
Page 15: Operating Instructions
INSTALLATION,OPERATION & MAINTENANCE Woodson Griddle – WGDAxx Operating Instructions Operation This Griddle has full stainless steel construction. The grill plate is pre-greased with animal fat. It is operated by thermostat that is located on the front of the appliance. Exact cooking times and temperatures vary for different cooking conditions and therefore experimentation is essential. - Page 16 NOTE! Some cleaning agents can damage stainless steel. For this reason we recommend cleaning with soapy water. Woodson do not take any responsibility for damage caused by the use of inappropriate cleaning agents. In some areas, particularly seaside environments, stainless steel can be subject to surface discolouration or “tea staining”.
-
Page 17: Maintenance
INSTALLATION,OPERATION & MAINTENANCE Woodson Griddle – WGDAxx Maintenance Routines Schedules To maintain optimal performance, maintenance and cleaning schedules must be regular and thorough. • The unit should be cleaned at the end of the every work day. • Log Books Log books should be kept for all cleaning and maintenance of this unit. -
Page 18: Stainless Steel Protection
INSTALLATION,OPERATION & MAINTENANCE Woodson Griddle – WGDAxx Stainless Steel Protection Cleaning For cleaning a stain on the surface of the stainless steel, check the cleaning section of the operation • manual. All metal surfaces should be checked while cleaning for damage, scuffs or scapes as these can lead to rust •... -
Page 19: Water Damage
INSTALLATION,OPERATION & MAINTENANCE Woodson Griddle – WGDAxx Water Damage Information Water damage to the electrical and mechanical parts of unit can occur through hosing on or around the • unit. Improper cleaning of the unit can lead to water damage. Check the cleaning section of the operation •... -
Page 20: Replacements
INSTALLATION,OPERATION & MAINTENANCE Woodson Griddle – WGDAxx Replacements Electrical Parts All electrical parts can be replaced by the manufacturer. • All electrical parts MUST be replaced by a qualified technician. • Mechanical Parts All mechanical parts can be replaced by the manufacturer. -
Page 21: Troubleshooting
INSTALLATION,OPERATION & MAINTENANCE Woodson Griddle – WGDAxx Troubleshooting WARNING! Technician tasks only to be completed by qualified service people. Check faults before calling service technician. Task Type - (O) = Operator (T) = Technician Task Problem Possible Causes Task Possible Corrective Action Ensure that the unit is plugged in correctly Unit not turned “on”... -
Page 22: Electrical Diagrams
INSTALLATION,OPERATION & MAINTENANCE Woodson Griddle – WGDAxx Electrical Diagrams WGDA50 Due to continuous product research and development, the information contained herein is subject to change without notice Tel: 1300 79 1954 Web: www.stoddart.com.au Email: fse@stoddart.com.au Page 20... -
Page 23: Wgda60
INSTALLATION,OPERATION & MAINTENANCE Woodson Griddle – WGDAxx WGDA60 Due to continuous product research and development, the information contained herein is subject to change without notice Tel: 1300 79 1954 Web: www.stoddart.com.au Email: fse@stoddart.com.au Page 21... -
Page 24: Spare Parts/ Assembly Diagram
INSTALLATION,OPERATION & MAINTENANCE Woodson Griddle – WGDAxx Spare Parts/ Assembly Diagram WGDA50 Due to continuous product research and development, the information contained herein is subject to change without notice Tel: 1300 79 1954 Web: www.stoddart.com.au Email: fse@stoddart.com.au Page 22... -
Page 25: Wgda60
INSTALLATION,OPERATION & MAINTENANCE Woodson Griddle – WGDAxx WGDA60 Due to continuous product research and development, the information contained herein is subject to change without notice Tel: 1300 79 1954 Web: www.stoddart.com.au Email: fse@stoddart.com.au Page 23... -
Page 27: Warranty
Warranty Appendix 1 – Australian Warranty and Importer/Distributor Contact Details As the exclusive manufacturer and distributor of Woodson products in Australia, Stoddart Manufacturing (Stoddart) would like to congratulate you on your purchase of a Woodson product. It should be noted by users of the product that it is not designed for household or domestic use and should not be used for this purpose. - Page 28 INSTALLATION,OPERATION & MAINTENANCE Woodson Griddle – WGDAxx (vi) Proper maintenance and cleaning of equipment in accordance with the Instructions is essential to the equipment's effective operation; (vii) On site warranty services are limited to sites within 50km from the nearest Stoddart authorized service agent and service agent's reasonable travel costs must be paid by Customer prior to the commencement of the repairs;...
- Page 29 INSTALLATION,OPERATION & MAINTENANCE Woodson Griddle – WGDAxx 4. Warranty Claim Procedure The following procedure must be followed to claim under Stoddart's warranties: Refer to the trouble-shooting section of the Instructions to establish the nature of the fault. Check the equipment is plugged-in, turned-on or has no other valid reason for not operating.
-
Page 31: Warranty Request Form
WARRANTY REQUEST FORM Phone: (07) 3344 2444 Int: +617 3344 2444 3440 7600 (int: +61 & 3440 7600) Phone: 1300 307 289 Fax: (07) 3344 6166 Int: +617 3344 6166 3344 1000 (int: +61 7 3344 1000) Email: service@stoddart.com.au To ensure we can provide the best possible service we require you to complete this form. Make, model and serial number, along with other essential information.
