Summary of Contents for T-Rex MAC 1

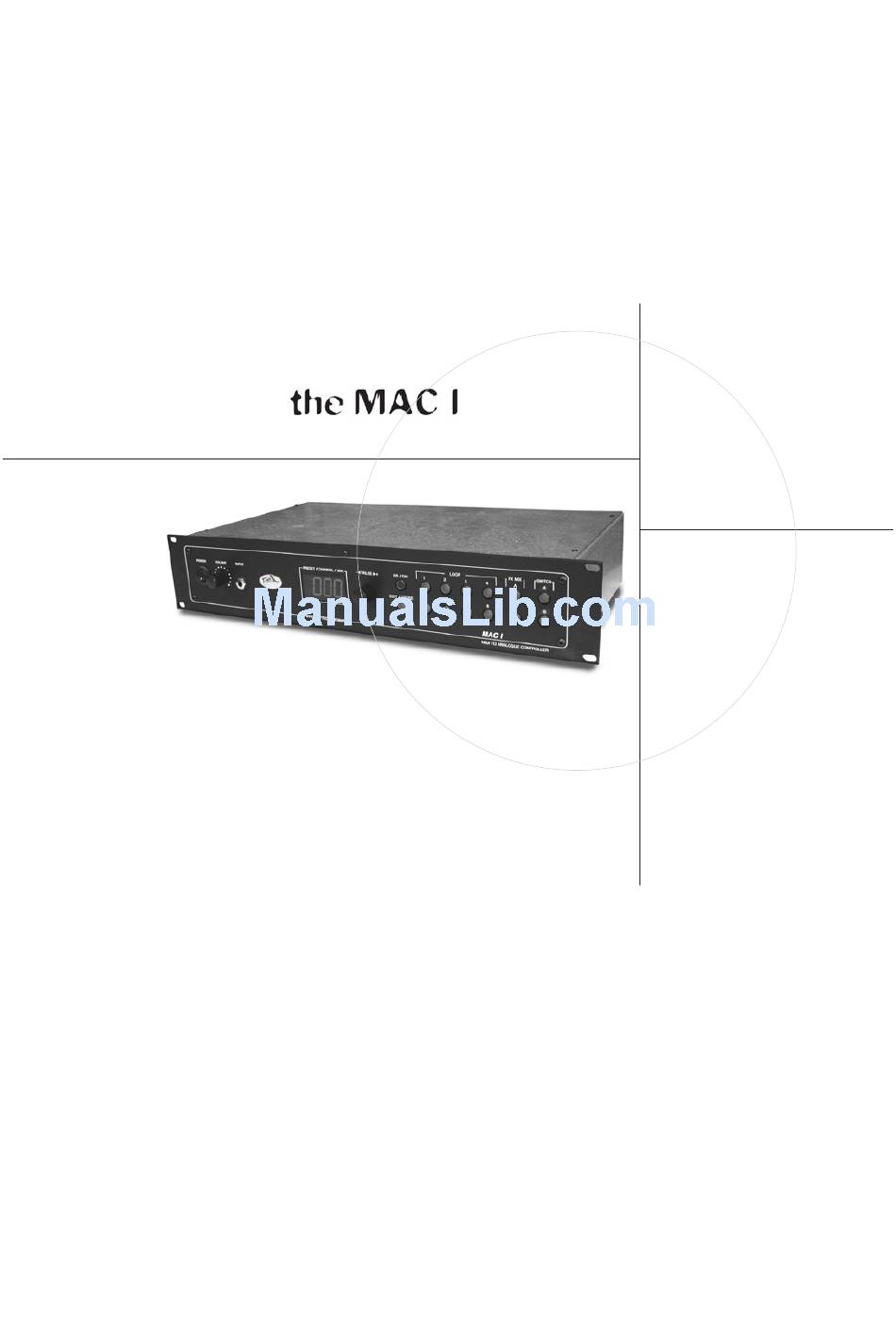

- Page 1 MIDI TO ANALOGUE CONTROLLER USER’S MANUAL “ T A K E E F F E C T S C O N T R O L S T E P F U R T H E R ”...
-
Page 2: Table Of Contents
Table of contents Introduction Front panel features Rear panel features Modes Editing/programming Midi hookup VCA control Setup ex. 1: The Mono Guitar System Setup ex. 2: The Stereo Guitar System Specifications MAC 1 block diagram... -
Page 3: Introduction
If you are fed up with dancing ballet on top of a tangled mess of pedals and cables in order to change sounds, the MAC 1 provides you with a first class opportunity to clean up the stage area in front of you. -
Page 4: Frontpanel Features
Frontpanel features POWER: Turns MAC 1 on/off VOLUME: Adjusts the overall volume level from the VCA left and right outputs (Only active when the VCA-control is hooked up.) INPUT: Front panel input socket. DISPLAY: The display has 4 characters and shows patch-number, MIDI channel or mix-... -
Page 5: Rear Panel Features
Sends out MIDI messages identical to those coming in through the MIDI IN terminal. R10) MIDI IN: Terminal to receive incoming MIDI messages from external MIDI device. R11) MAINS INPUT: The MAC 1 is capable of operating at line voltages 100, 115 or 230 V AC, 50-60Hz. -
Page 6: Modes
Modes MAC 1 has 3 different modes: 1) PLAY-mode 2) EDIT-mode 3) MIDI-mode PLAY-mode is the start up mode. EDIT-mode and MIDI-mode are described in the following. Editing and programming Loopsection Press once on the EDIT/STORE button (F7).The button lights up, as you enter edit mode. Each loop can now be activated individually by pressing one of the 8 buttons within the loop section.The LED indicators... -
Page 7: Midi Hookup
MIDI Channel. The MAC 1 can be set to operate on any one of the 16 MIDI channels (01-16) or in Omni mode (00). In Omni mode the MAC 1 will respond to MIDI messages on all channels. -
Page 8: Setup Ex. 1: The Mono Guitar System
The Mono Guitar System In this set-up the MAC 1 feeds a combo amp or mono stack. It has 4 serial pedals connected to the LOOP- section and 1 parallel pedal connected to FX mix A. Switch A/B controls channel-switching and reverb ON/OFF on the amplifier. -
Page 9: Setup Ex. 2: The Stereo Guitar System
Ex. 2 The Stereo Guitar System In this set-up the MAC 1 feeds a Stereo Rack System. It has 4 serial pedals connected to the LOOP-section and stereo effects processor connected to FX mix A. Switch A/B controls channel switching on the preamp. (If your set-up includes a MIDI controllable preamp, use MIDI THRU (R3) for patch changes.) -
Page 10: Specifications
S960971 reference: Jyske EMC Lab. Vejle d. 18/9-96 Issued in Vejle August 23th 2003 Lars Dahl-Jørgensen Sebastian Jensen Managing Director Managing Director ® T-Rex Engineering Aps · Ibaek Strandvej 3A · DK-7100 Vejle · Tel. +45 75 72 71 81 · www.t-rex-eng.com... -
Page 11: Mac 1 Block Diagram
MAC 1 block diagram...
