Orbis CODITEL User Manual

CODITEL
499-010

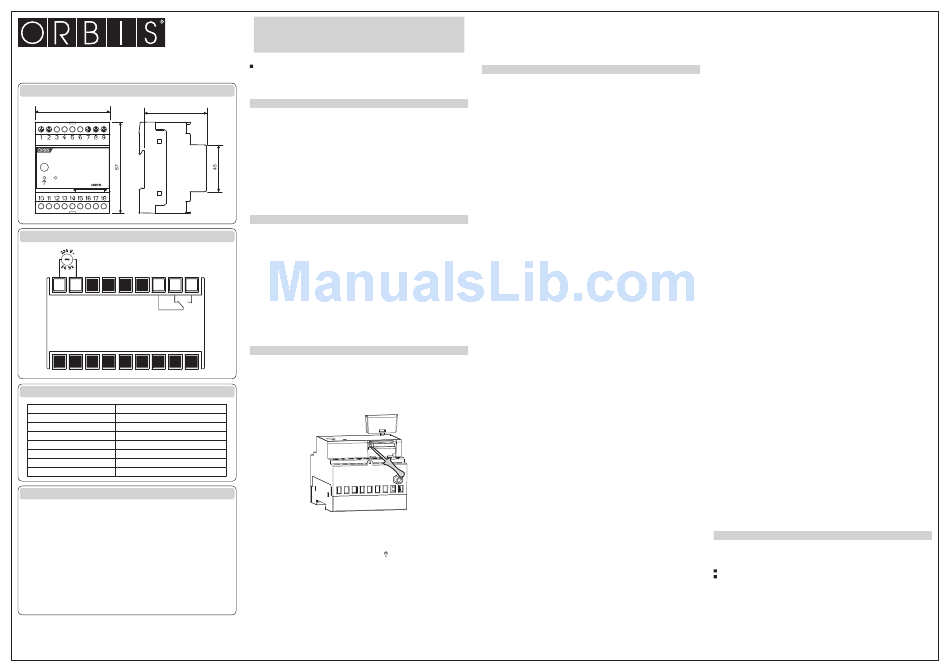

DIMENSIONS
72
60
SET
Out
ON
CONNECTION DIAGRAMS
1 2 7 8 9
OUT 1
8 A / 250 V ~
DEFAULT SETTING
Password 12345678
Relay output status OFF
ADMIN number Undefined
USER numbers Not defined
Caller control Active
Automatic call answer Disabled
Response to sms commands Active
Forward unknown sms Active
GATE-OPENER FUNCTION
• To use CODITEL as gate-opener is enough insert a sim card, feed supply power the
instrument and wait for the green led to flash. Press the button for at least 5 seconds to
enter in the programming mode.
Make a ring from a telephone number which will be configurated as admin number.
From this number, send a message containing the list of numbers that to be abilitated
as gate-opener mode, by the command:
USERADD [list of numbers to be added]
The numbers to be added must be in international format +39... and separated by an
empty space between each number. If the message is longer than 160 characters, divide
it in more sms.
Numbers are now abilitated to open the gate.
Note. CODITEL sends an impulse of 2 seconds to the unit gate-opener.
To modify the duration of the impulse, see the OUTRING command.
User manual
GSM COMMUNICATION INTERFACE
Read all instructions carefully
CODITEL is a communication interface in a container of 4 DIN modules, which uses GSM
technology to enable the remote control of electric services in the home. The output relay
can be controlled by sending a text message from your mobile phone or by ringing an enabled
telephone service, thus saving the cost of the text message. The instrument also offers the
option of receiving a text message confirming activation.
SAFETY WARNINGS
During the installation and operation of the device observe the following instructions:
1) The device must be installed by a qualifi ed person
2) The device is aimed to be used in household premises and similar environments
3) Do not use the device for purposes other than indicated
4) A two-pole disconnect device shall be provided as part of the building installation
5) A protection device against over-currents should be installed in the electrical system,
upstream of the device
6) When installing the device, carefully respect the wiring diagrams
7) Disconnect the device from the power supply before accessing to the terminals
8) Do not power or connect the instrument if any part of it is damaged
9) The use of a GSM device can cause interference with the functioning of electronic
devices non-screened from radiofrequency signals (electromedical devices, pacemakers,
hearing aids etc.)
10) In case of fault, do not service the device yourself but contact the after-sales service.
11) The device is aimed for use in place with over-voltage category III and pollution
degree 2, as per standards EN 61010-1.
TECHNICAL CHARACTERISTICS
• Power supply: 230 V~ (-10% ÷ +10%) 50Hz
• Consumption: 4VA
• Connection:
− cables with max 6 mm 2 section
• Output
− a bistable relay with exchange contact
− breaking capacity: 8(5)A/250V~
• GSM Dual Band module (900-1800 MHz)
• SMA-F connector for external aerial (included in the box)
• You can store up to 100 numbers
• Signal LEDs:
− Red LED for signalling the output relay status
− Red/green two tone LED for signalling the device status
• Multipurpose button for instrument programming
• Operating temperature: 0 ÷ 50 °C
• Operating humidity: 10 ÷ 90% noncondensing
• Storage temperature: -10 ÷ +65°C
• Protection: IP40
• Container: 4 DIN modules
INSTALLATION
• I n order for the instrument to operate, a sim card enabled for telephone traffic needs to be
inserted in the relative slot.
Note. Ensure that the power cables are disconnected before inserting the sim
card.
Remove the cover and use a sharp object to press the slot release mechanism, as illustrated
in the box alongside:
Attention. The SIM should have the PIN code request and the answerphone
deactivated.
• Once the SIM has been inserted, power the instrument by connecting the wires as illustrated
in the "connection diagrams" box.
The status of the device is segnalated by the bicolor led :
OFF:  system not fed
BLINKING RED:  sim not inserted or pin code in activity
FIXED RED:  GSM field insufficient
FIXED GREEN:  starting system/network research
BLINKING GREEN:  connected to GSM network
QUICKLY BLINKING GREEN:  arriving in command (ring or sms)
QUICKLY BLINKING RED:  programming mode active
• Once it has been connected, the instrument will become fully operative within around 30
seconds, during which the instrument status LED will be a fixed green colour (the time
needed to search for the network and initialise the instrument may vary on the basis of the
GSM field in which the instrument is installed and the provider used).
Once the initialisation phase is completed, the green LED will start to flash with a frequency
of 1Hz and the instrument will be ready to receive commands via text message or a ring on
the telephone.
Note. If the device will be installed into a screened panel, it is possible to replace
the antenna included in the kit with an another one with 3 meters cable.
The longer antenna is available as optional. Ensure that the power cables are
disconnected before replace the antenna.
OPERATION
Reset the device
• W hen it is switched on for the first time and whenever it is reset, the instrument will be set
with the default parameters. To do a reset, switch on the device and press the key shortly in
three seconds. The led relative to the output will blink for few seconds.
Set the certified numbers
In order to use the instrument, it is necessary to begin by setting the number of admins and
the user numbers enabled (if any). Pressing the key for a long time (at least 5 seconds) allows
you to enter the programming mode, where you can enable/disable the various telephone
services.
• Setting the admin number
After switching the instrument on and after esch reset, for the first time and having entered
programming mode, the first telephone number that makes a call will automatically be
configured as the admin number. The admin number can be changed later on by sending a
text message from the current admin number with the command:
ADMIN [new admin number] ( the new admin number must be in international format
+39...)
If you lose the admin number, it can only be changed by forcing an instrument reset.
To retrieve automatically all the user numbers, see the section "Sim managment".
• Setting the user number
The user numbers can be entered/removed simply via a telephone call when the instrument
is in programming mode. The caller's number will be entered/removed on the basis of
whether it is respectively not present/present in the phone book. A confirmation text
message will be sent to the caller, indicating the number of locations occupied out of the
total number available. Alternatively, the user numbers can be added or removed by sending
a text message from the admin number with the commands:
USERADD [list of numbers to be added]
USERDEL [list of numbers to be removed]
The numbers to be added must be in international format +39... and separated by an empty
space between each number.
Commands
CODITEL has a relay output whose status is signalled by a red LED (on  output ON).
It is possible to work on the output as follows:
− w ith the key on the front panel, which can be used to force the output switch. The admin
number can set the output action after pressing the key with the command:
OUTKEY [functionality]
with functionality that can assume the values:
 RING  it reacts as it does to a call when the key is pressed
 TOGGLE  the key switches the output ON/OFF in bistable mode
 BLOCK  d isables the key functionality (it is not possible to access programming
mode when in this mode)
If the value is omitted, the current instrument status will be the response.
− with telephone call from an enabled number.
T he admin number can define the action of the instrument when it receives a call by
sending a text message. The possible commands are:
RINGRISP [status]
with status that can assume the values:
 ON  sends a text message confirming activation to the caller
 OFF  no confirmation text message to the caller
If the value is omitted, the current instrument status will be the response.
RINGCONTROL [status]
with status that can assume the values:
 ON  controls the caller number to check whether it is enabled
 OFF  d oes not check the caller number (function used when you wish to
temporarily allow any number to control the instrument)
If the value is omitted, the current instrument status will be the response.
OUTRING [output status] [status permanence time] [time unit of measurement]
in which the parameters can assume the following values:
 output status  ON, OFF, TOGGLE, DISABLE
 status permanence time  maximum (2 32 -1) seconds (optional parameter)
 time unit of measurement  s seconds, m minutes, h hours (optional parameter)
Examples:
OUTRING OFF 10 S  the relay is turned OFF for 10 seconds when the call is received
OUTRING DISABLE  the relay does not do anything when the call is received
OUTRING TOGGLE  the relay changes status when the call is received
− w ith text message from the admin number or another number (via password).
The structure for all the commands is as follows:
[password] [separator] [command] [separator] [parameter1] [separator]..[parameterN]
where:
[password]  numerical field of a maximum of 8 figures
[separator]  comprised of one or more space characters
[command]  command recognised by the device
[parameter..]  series of parameters relative to the command
The password field may be omitted if the command is given by the admin
number. Several commands may be included in one text message. In this case,
the commands executed will only be those whose response is contained in a
standard text message (160 characters). To enter numbers with the decimal
separator, you need to use a full stop.
T he structure of a response to a command is similar to the command itself, with the addition
of the "=" symbol to indicate the current status. For example:
OUTKEY BLOCK  OUTKEY=BLOCK
In addition to those listed above, the commands which can be made via text message are:
• Setting the output status
OUT [output status] [status permanence time] [time unit of measurement]
where:
 output status  ON or OFF
 status permanence time  (2 32 -1) seconds (optional parameter)
 time unit of measurement  s seconds, m minutes, h hours (optional parameter)
If the output status is omitted, the response will be the current instrument status.
Example:
OUT ON 10 M output ON for 10 minutes
• Setting the sending of a caller response message
OUTRISP [status]
with status that can assume the values:
 ON  enables the sending of a text message in response to the caller
 OFF  disables the sending of a text message in response to the caller
If the status is omitted, the response will be the current instrument status.
Example:
OUTRISP ON
• Displaying the output status and the settings
OUTINFO
A possible answear could be the following:
OUT=ON OUTRING=ON 5s OUTRISP=ON RINGRISP=OFF OUTKEY=TOGGLE
It means:
output ON, ON for 5 seconds when the call is received, confirmation to the sms abled,
confirmation to the ring disabled, the key switches the output on/off in bistable mode.
• Changing the output name
OUTTXT [output label]
Example:
OUTTXT valvola assigns to the output the name valvola
A string of a maximum of 10 characters with no spaces can be assigned as a
name. To restore the original name, just write OUTTXT NO. If an alternative
name is defined for the output, this name can be used instead of OUT1.
For example:
valvola ON 10 M active output (valvola) for 10 minutes
• Enabling the forwarding function (for admins only)
FORWARD [number]
I t's possible set any number. In this case, the sms that no contain command for the device
are forward to the number specified. If not modified, the number that received the unknown
sms is the admin.
FORWARD OFF disabled this function.
Example:
FORWARD +391111234567 forward to the 11111234567 number the sms
that no contain commands
• Password management (for admins only)
PASS [new password] with new password with a maximum of 8 figures
Example:
PASS 12345678
• Sim card managment (for admin only)
STORE copy in sim card all the number saved in the device
RESTORE restore only the numbers saved with the command STORE
T hese commands are particulary useful in the case of reset, with conseguent loss of the user
numbers saved in the device.
For this, we recomand you to do a STORE when all the numbers are abilitated.
REFERENCE STANDARDS
Conformity to the EU directive:
1999/5/CE R&TTE
declared in reference to the Harmonised Standards:
Safety: EN 60950-1
Electromagnetic compatibility: EN 301489-1 and EN 301489-7
