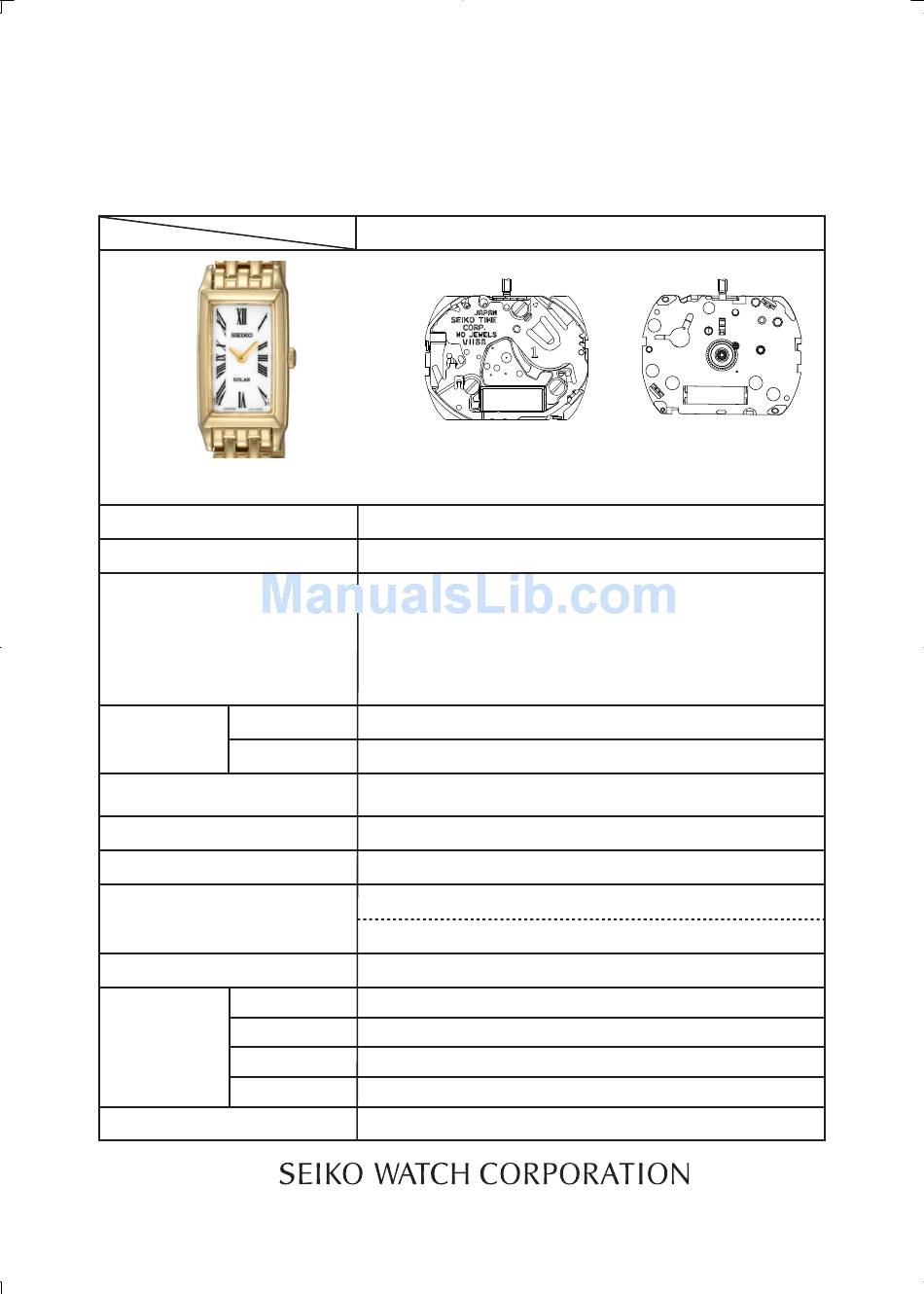

PARTS LIST / TECHNICAL GUIDE

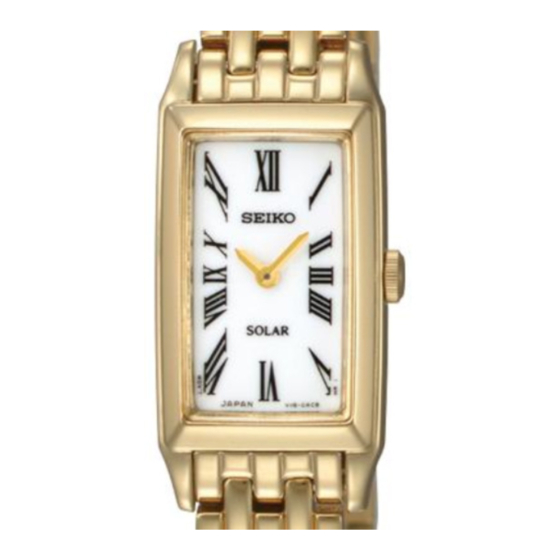

Analogue Solar Cal. V116 A
[SPECIFICATIONS]
Cal. No.
Item
• 2 hands (hour, minute hands)
Interval of hands movements
Driving system
Additional function
Normal position
Crown operation
1st click position
Loss/Gain
Regulation system
Gate time for rate measurement
Current consumption
Coil resistance
Power
generator
Rechargeable
Power supply
battery
Operating
voltage range
Battery life
Number of jewels
• Diameter
Outside: Ø 11.6 mm x 15.55 mm
Casing: Ø 11.6 mm x 15.55 mm
• Height:
Two hands (move at 20-second intervals)
Stepping motor (Load compensated driving pulse type)
• Electronic circuit reset function
• Overcharge prevention function
Free
Time setting, hand position adjustment/resetting the circuit
Monthly rate: Less than 15 seconds (worn on the wrist at the
temperature between -5 ºC and 35 ºC)
Nil
Use 10-second gate.
Movement:
Less than 0.22 μA
Circuit block:
Less than 0.16 μA
4002 909: 1.20 – 1.60 KΩ
Solar power system
MT516F
1.2 V - 2.2 V
Approx. 12 months (from full charge)
0 jewel
1/16
V116A
Ø 2.0 mm
Advertisement
Related Manuals for Seiko V116A
Summary of Contents for Seiko V116A
- Page 1 PARTS LIST / TECHNICAL GUIDE Analogue Solar Cal. V116 A [SPECIFICATIONS] Cal. No. V116A Item • Diameter Outside: Ø 11.6 mm x 15.55 mm Casing: Ø 11.6 mm x 15.55 mm • 2 hands (hour, minute hands) • Height: Ø 2.0 mm...
-
Page 2: Specifications
SPECIFICATIONS Cal. V116A Cal.V116A is ladie's 2 hands analogue watch employing a new solar panel (3 cell unit), but the basic movement structure of Cal.V116A is smilar to the previous Cal.V11 Series watches, and the knowledge and technique you have gained in handling the previous Cal.V11 Series watches will come in handy when you repair Cal.V116A. -
Page 3: Parts List
PARTS LIST Cal. V116A Disassembling procedures Figs. : Reassembling procedures Figs. : Lubricating : Types of lubricant Watch Oil AO-3 Watch Oil AO-2 Lubricant quantity: Normal quantity [SOLAR POWER GENERATION MECHANISM] Hour and minute hands Dial 4020 582 Solar cell unit... - Page 4 PARTS LIST Cal. V116A [BATTERY AND ELECTRONC CIRCUIT - GEAR TRAIN MECHANISM AND STEPPING MOTOR SETTING MECHANISM]] 0022 221 Circuit block cover screw 4461 526 Circuit block cover 4000 657 Circuit block 3027 26T Rechargeable battery unit 0022 221 Train wheel bridge screw...
- Page 5 How to find the correct parts, if not determined by the 4-digit caliber number Following parts are determined based on the design of watches, such as hands height, dial color, and design of cases. Please refer to the SEIKO WATCH PARTS CATALOGUE in order to choose corresponding parts.
- Page 6 TECHNICAL GUIDE Cal. V116A REMARKS ON DISASSEMBLING AND REASSEMBLING THE MOVEMENT l How to remove the SETTING STEM before dismantling the movement Crown position: Normal position Push the SETTING LEVER gently (refer to the Fig. 1) in order to disengage it from the SETTING STEM.
- Page 7 TECHNICAL GUIDE Cal. V116A SOLAR CELL UNIT • How to remove Release the three hooking portions marked with the arrows in the illustration at right from the main plate, using tweezers or the like. • How to install Push the solar cell above the three hooking...
- Page 8 TECHNICAL GUIDE Cal. V116A l Rechargeable battery and electronic circuit RECHARGEABLE BATTERY UNIT • How to install Rechargeable battery unit Set the “B” portion of the (-) lead terminal of the rechargeable battery unit to the groove of the main plate, and then, set the “A”...
- Page 9 TECHNICAL GUIDE Cal. V116A l Gear train mechanism - Wheel assembly position and lubrication instructions THIRD WHEEL AND PINION Lubriccating: Types of lubricant STEP ROTOR Watch oil AO-3 CENTER WHEEL AND PINION Watchi oil AO-2 SETTING WHEEL Lubricang quantity: MINUTE WHEEL Normal quantity •...
- Page 10 TECHNICAL GUIDE Cal. V116A l Setting mechanism - Assembly position and lubrication instructions YOKE SETTING LEVER SPRING SETTING LEVER • Setting position and lubricating Refer to the illustration below for the setting position and lubrication of the respective parts. Spring portion of the yoke •...
-
Page 11: Current Consumption
6. Make sure that the read value is less than 0.80 μA. * When measuring the current comsumption using the SEIKO digital multi-tester (S-860), use the range of 40 μA of SUPPLY V (=1.55V) & GATE TIME 2S). 11/16... - Page 12 After checking that a stable measurement is obtained with the tester connected, read the current consumption. * When measuring the current consumption us- ing the SEIKO digital multi-tester (S-860), use the range of 40 μA of SUPPLY V (=1.55V) & GATE TIME (2S).
- Page 13 TECHNICAL GUIDE Cal. V116A l Output voltage for the solar cell unit Output voltage when the watch is placed at a distance of 5 cm under a fluorescent light of 15 to 20 watts : More than 1.8 V Checking procedure Connect the tester to the output terminal of the solar cell unit as shown in the illustration at right.
- Page 14 TECHNICAL GUIDE Cal. V116A After recharging for 30 minutes, apply the probes of the tester in the same manner as in step "1" above, and measure the rechargeable battery voltage while keeping the watch exposed to the light. 5 cm Refer to the table below to determine whether the recharging function is normal or not.
- Page 15 TECHNICAL GUIDE Cal. V116A Checking the general function Operation Function Checkpoint Pull out the crown to the 1st click Make sure that it has and push it back Setting mechanism - a click at the 1st click in to the normal...
-
Page 16: Accuracy Test
TECHNICAL GUIDE Cal. V116A Checking the water resistance Check the water resistance according to the designated specification of the watch. Marking on the case back Test method Applied pressure WATER RESISTANT (WATER RESIST) 3 BAR Air leak test WATER RESIST 5BAR...
