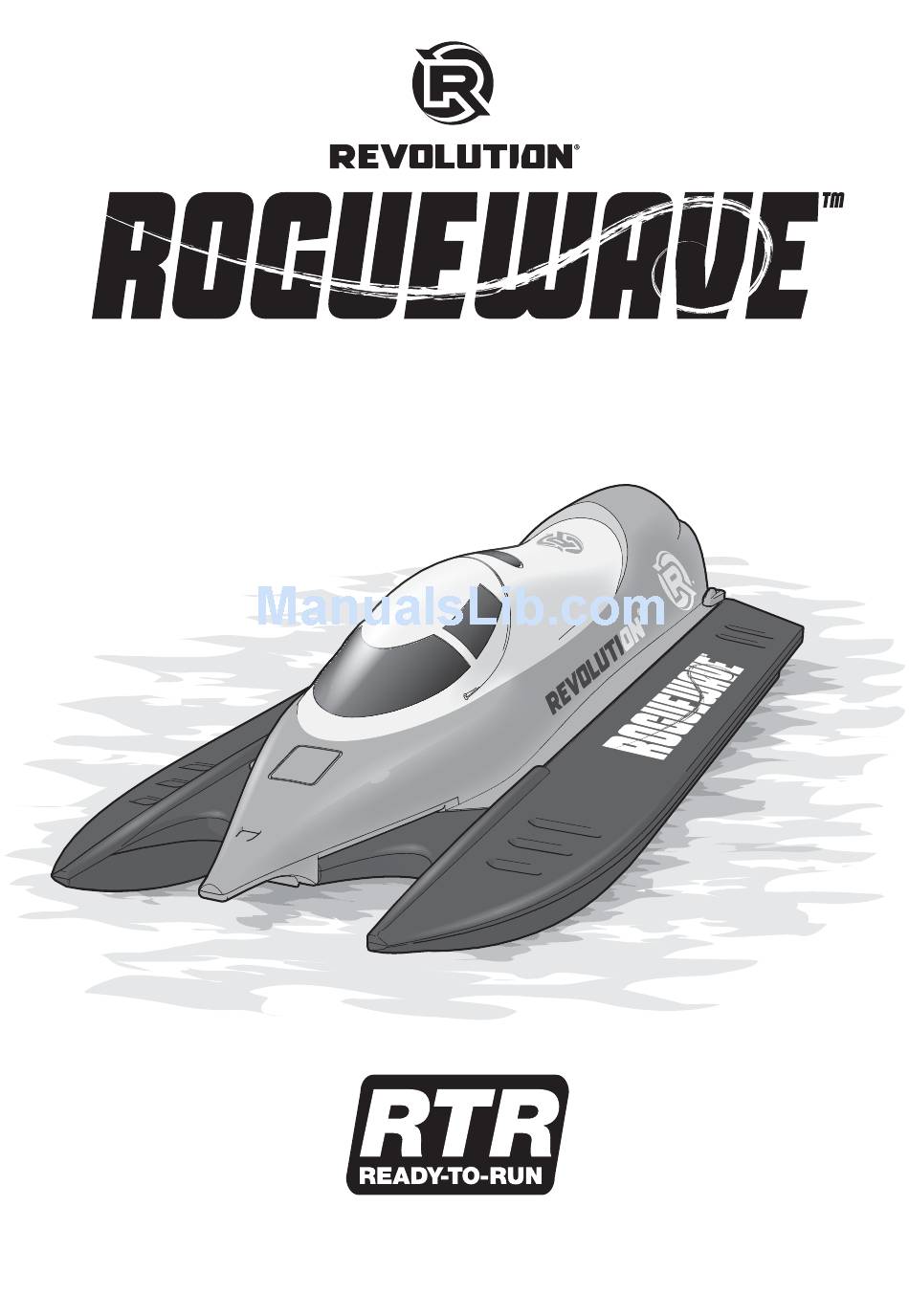

- Page 1 10” self-righting boat RVOS01002T1/T2 Instruction Manual Manuel d’utilisation...
-
Page 2: Table Of Contents
NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit http://www.horizonhobby.com and click on the support tab for this product. Meaning of Special Language The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high probability of superfi... -
Page 3: Water-Resistant Boat With Waterproof Electronics
Water-Resistant Boat with Waterproof Electronics Your new Horizon Hobby boat has been designed and built with a Metal parts, including the bearings, pins, screws and nuts, propeller, combination of waterproof and water-resistant components to allow rudder, rudder mounts, prop struts, as well as the contacts in you to operate the product in calm, fresh water conditions. -
Page 4: Box Contents
Box Contents ® • Revolution Roguewave™ 10” Self-righting Boat • Boat stand • USB Li-Ion Charger • 2.4GHz Transmitter • 4 AA non-rechargeable batteries (for transmitter) Carefully remove the boat, stand, charger, radio transmitter, and AA batteries from the box. Inspect the boat for damage. -
Page 5: Low Voltage Cutoff (Lvc)
Low Voltage Cutoff (LVC) Discharging a Li-Ion battery below 3V per cell may damage your Disconnect and remove the Li-Ion battery from the boat after use to battery. The included ESC protects the boat battery from over- prevent trickle discharge. Charge your Li-Ion battery to about half discharge using Low Voltage Cutoff (LVC). -
Page 6: Transmitter
Transmitter DUAL FUNCTION SWITCH STEERING TRIM Adjust the servo angle by turning the Allows you to adjust the steering trim to switch up or down. Turn the switch up ensure the boat tracks straight. for a larger servo angle and down for a smaller servo angle. -
Page 7: Getting Started
Getting Started IMPORTANT: Perform a control check at the beginning of each boating session, after repair or after installation of new batteries. 1. Power on the transmitter. 2. Connect the battery connector to the ESC power connector. 3. Test the transmitter’s steering and throttle control of the boat with the boat on the display stand. -
Page 8: Self-Righting Feature
Self-Righting Feature It is normal to have the boat list to the left side when you place the the weight loose. If the weight comes loose, glue the weight back in boat in water. This is a natural effect of the built-in water ballast, place inside of the ballast. -
Page 9: Rudder And Propeller Service
Rudder and Propeller Service Rudder 1. Disconnect the servo linkage (A) from the arm (B) of the rudder (C). 2. Remove the two screws (D) from the rudder mount (E) and remove the rudder assembly. 3. To remove the rudder from the mount, tap the hinge pin (F) through the holes in the rudder and mount. -
Page 10: Troubleshooting Guide
Troubleshooting Guide Problem Possible Cause Solution Boat will not respond to throttle but responds to other Throttle channel is reversed Reverse throttle channel on transmitter controls Damaged propeller, shaft or motor Replace damaged parts Extra noise or extra vibration Propeller is out of balance Balance or replace propeller Boat battery charge is low Completely recharge battery... -
Page 11: Limited Warranty
Limited Warranty What this Warranty Covers Inspection or Services Horizon Hobby, LLC, (Horizon) warrants to the original purchaser that If this Product needs to be inspected or serviced and is compliant in the product purchased (the “Product”) will be free from defects in the country you live and use the Product in, please use the Horizon materials and workmanship at the date of purchase. -
Page 12: Warranty And Service Contact Information
Warranty and Service Contact Information Country of Horizon Hobby Contact Information Address Purchase Horizon Service Center servicecenter.horizonhobby.com/ (Repairs and Repair Requests) RequestForm/ productsupport@ 4105 Fieldstone Rd Horizon Product Support North America horizonhobby.com Champaign, Illinois, 61822 USA (Product Technical Assistance) 877-504-0233 websales@horizonhobby.com Sales 800-338-4639... - Page 13 ©2018 Horizon Hobby, LLC. Revolution, the Revolution logo, Roguewave, Dynamite, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. All other trademarks, service marks or logos are property of their respective owners. Patents pending. Created 1/18 56972.1...
