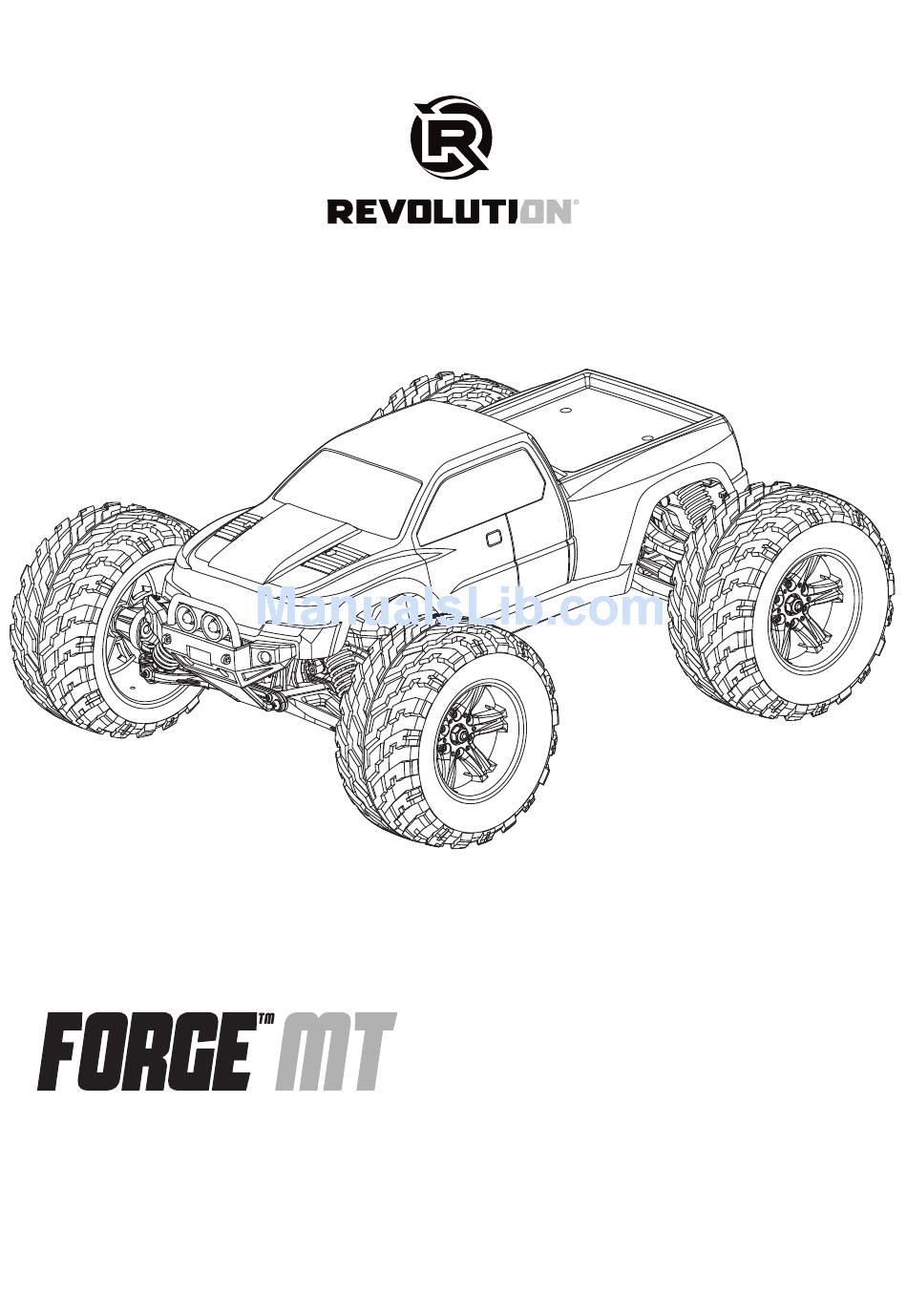

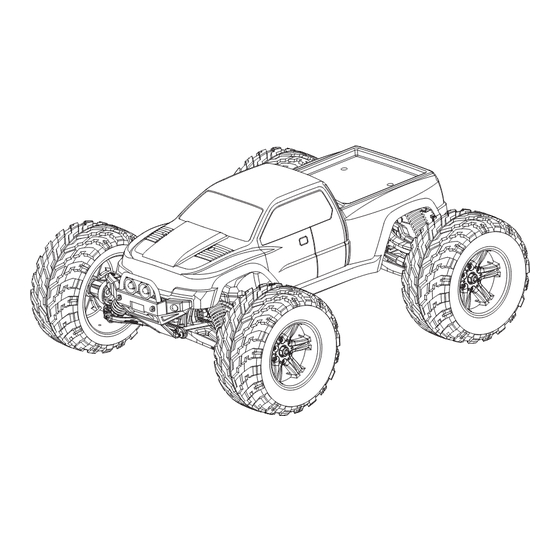

- Page 1 1:12 2WD RTR MONSTER TRUCK RVOS02000 INSTRUCTION MANUAL MANUEL D’UTILISATION...
-
Page 2: Servo
NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit http://www.horizonhobby.com and click on the support tab for this product. MEANING OF SPECIAL LANGUAGE The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high probability of superficial injury. -
Page 3: Table Of Contents
2 kg-cm Operating Speed 0.5sec/45° of travel Size 6 x 4 x 5mm COMPONENTS • Revolution Forge Monster Truck • AA (2) Batteries • Li-Ion-Fe Battery Pack • Transmitter and Steering Wheel • USB Li-Ion-Fe Charger • Hex Wrench TABLE OF CONTENTS Quick Start....................4... -
Page 4: Quick Start
QUICK START Please read the entire manual to gain a full understanding of the vehicle, fine-tuning the setup and performing maintenance. 1. Read the safety precautions found in this manual. 5. Power ON the transmitter and then the vehicle. Always power the transmitter ON before the vehicle and power it OFF after the 2. -
Page 5: Installing The Battery
INSTALLING THE BATTERY 1. Remove the vehicle body. CAUTION: Connecting the battery to the ESC with reversed 2. Loosen the battery cover latches and remove the battery cover. polarity will cause damage to the ESC, the battery or both. 3. Install a fully charged battery, connecting the battery lead to Damage caused by incorrectly connecting the battery is not covered the vehicle lead. -
Page 6: Getting Started
GETTING STARTED 1. Power on the transmitter. 3. Perform a test of the transmitter’s control of the vehicle with the 2. Connect the battery to the receiver and power on the vehicle. vehicle’s wheels off the ground. 4. Start driving slowly, and, if the vehicle does not go straight, adjust the steering trim dial on the transmitter. -
Page 7: Motor Care
MOTOR CARE • Seat the motor brushes by driving smoothly on a flat surface continuously up hill. Allow the motor to cool completely during use of the first battery charge. Failing to do so can before running the vehicle. greatly reduce motor performance and functional life. • Over-temperature protection is installed on the ESC to prevent • Prolong motor life by preventing overheating conditions. -
Page 8: Warranty And Service Contact Information
Limitation of Liability http://www.horizonhobby.com/content/service-center_render-service- HORIZON SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL center. If you do not have internet access, please contact Horizon Product OR CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR PRODUCTION Support to obtain a RMA number along with instructions for submitting your OR COMMERCIAL LOSS IN ANY WAY, REGARDLESS OF WHETHER SUCH product for service. -
Page 9: Replacement Parts
Replacement Parts List • Liste des pièces de rechange Part Number English Français RVOS12000 Brushed Motor Moteur à balais RVOS12001 2.4Ghz Tx 2,4 Ghz Tx RVOS12002 Battery 3.2V 1950mAh Batt 3,2 V 1950 mAh RVOS12003 USB Charger, Li-On Chargeur USB, Lithium-ion RVOS12004 ESC/Receiver ESC/Récepteur... -
Page 10: Parts Diagram
PARTS DIAGRAM | VUE ÉCLATÉE DES PIÈCES RVOSS222002 RVOSS224001 RVOSS224001 RVOSS224000 RVOSS222003 RVOSS221000 RVOSS225001 RVOSS225003 RVOS12005 RVOSS222001 RVOSS225001 RVOSS226000 RVOSS221001 RVOSS221000 RVOSS225000 RVOSS225002 RVOSS221005 RVOSS225000 RVOSS224000 RVOSS225002 RVOSS225002 RVOSS223000 RVOSS225003 RVOSS226001 RVOSS224000 RVOSS226006 RVOSS225002 RVOSS225003 RVOSS226000 RVOSS227000 RVOSS226003... -
Page 11: Parts Diagram
PARTS DIAGRAM | VUE ÉCLATÉE DES PIÈCES... - Page 12 PARTS DIAGRAM | VUE ÉCLATÉE DES PIÈCES RVOSS224001 RVOSS225003 RVOSS225003 RVOSS224001 RVOSS221000 RVOSS221000 RVOS12000 RVOSS225001 RVOSS225005 RVOSS222003 RVOSS225003 RVOSS225002 RVOSS225002 RVOSS225000 RVOSS224000 RVOSS221005 RVOSS226003 RVOSS223000 RVOSS225003 RVOSS225002 RVOSS225002 RVOSS226001 RVOSS226007 RVOSS225002 RVOSS226000 RVOSS224000 RVOSS227000 RVOSS225003 RVOSS226003...
- Page 13 ©2017 Horizon Hobby, LLC. Revolution, the Revolution logo, Forge, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. All other trademarks, service marks or logos are property of their respective owners. Created 7/17 55124 RVOS02000...
