Xomax XM-2DN705 User Manual

Car Multimedia System
U ser Manual
Information for reference, the company change product design and specifications rights reserved, then without notice.
Notes :
Thanks for choosing the car Audio-visual navigation system of our company In orderthat you can
enjoy various kinds of our product character and insure long time to usewithout any break down. Please
read carefully this instruction and comply with it. Thanks !
1: This Car-Audio is used for 12V car battery, please don't directly to install in 24V battery bus and trucks
2:Please don't install this Car-Audio in place where hold up driver visual
3:This Car-Audio is made of high precision components, should avoid to hit strongly.Don't adjust the lid
on maintenance at random, if you need, please go to the nearby professional maintenance center to
consult
4:If it is very old in car ,please don't turn on the heater immediately, otherwise it may make the
condensation water on the record result to the disk which can't work normally.If there's condensation
water and obvious dirty, please wipe it gently with soft cloth.If the dew in optical components, please
open car heating for 1 hour and the record
player can work normally
5:Driving on the rough mountain road, severely turbulence might cause "leap" phenomenon.
6:Long time to use CD in large volume will affect the product life . In order to protect it well , please
meanwhile opening the radio in moderate volume.
7:Don't work in very high or very low temperature ,please ensure the car temperature from-20 degree to
+60degree.
8:Please don't inset the irregular Disc, or will damage audio movement.
9:please don't touch the LCD with thin sharp or sharp hard material to avoid scratching
10:When the panel and TFT dirty, please clean it with soft cloth and Neuter cleaner. Ifyou use corrosive
diluent , it will cause panel injury and word fuzzy
11:Please comply with this instruction when using the Car-Audio. Illegal operation damage not warranty
12:If there is more dust of the environment, please cleaning plate regularly .
Note ：
Please close GPS navigation, can remove GPS card, if not according to the instru-
ctions, cause abnormal machines work, our company is not responsible for

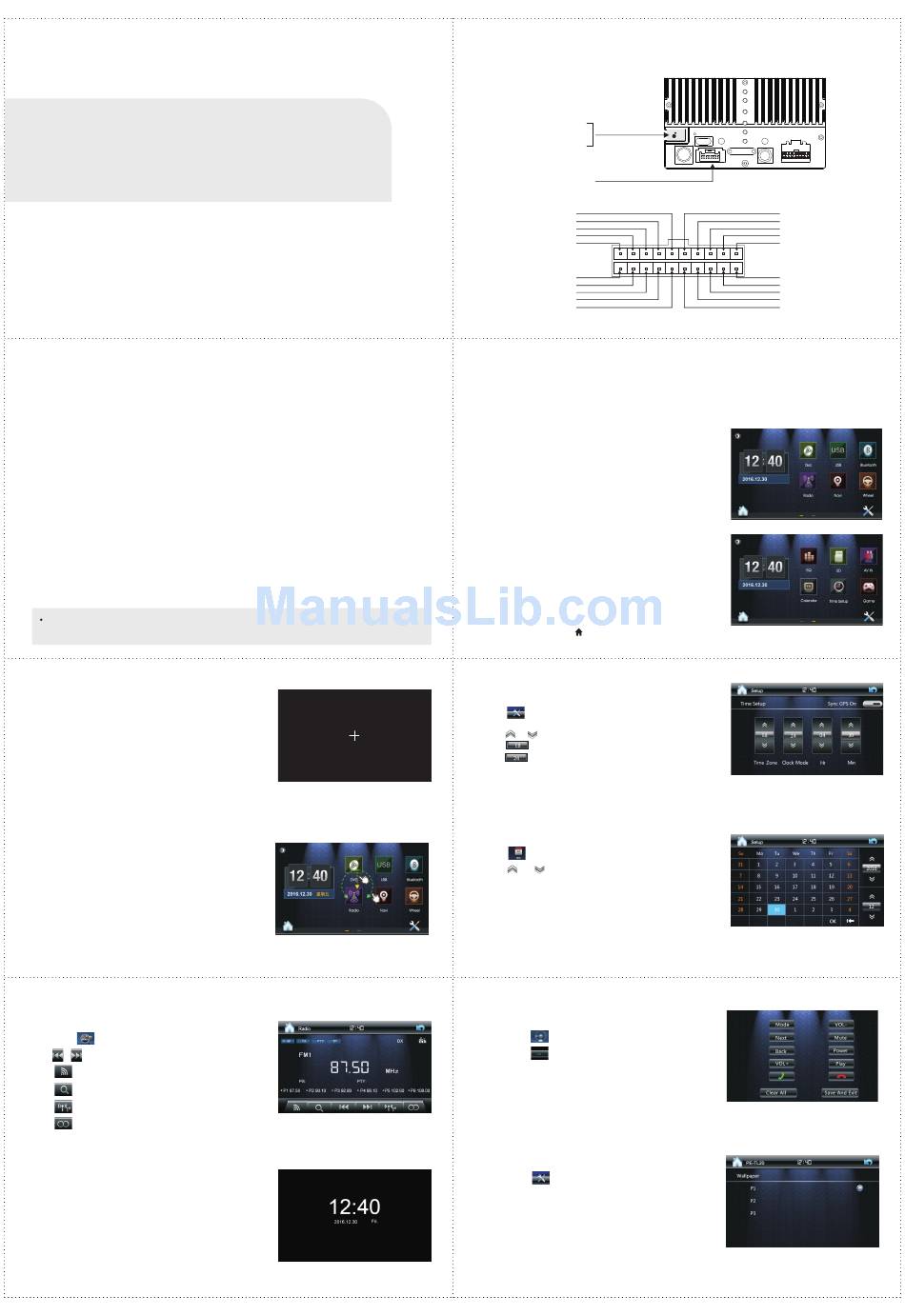

Screen Calibrate
When there is problem of touch, long time press the GPS key,
there is a + on the screen, touch it , when appear 5+ ,and then
waiting for 20seconds jus finish the screen calibratet.
Gesture Command
-Free sliding with your finger in any interface, it can back to EQ interface.
( except the interface of screen saver, AUXIN, SWC Calendar, Set up )
Do finger circles in any place , can adjust the Vol.
-Sliding in clockwise can increase the Vol, Sliding in anticlockwise can
reduce the Vol. (Except the screen saver, AUXIN )
When play the video and picture, sliding with your fingure,
it will pop-up the quality/low/medium/high/best/
Radio set up
- [ ]
Touch enter Radio. As right picture
[ ][ ]
choose the frequency
[ ]
Mute
[ ]
Band switch Save radio station by hand
[ ]
Far or near station selection
[ ]
Sound effect adjust

Screen saver

-
Touch the time in any interface can enter the screen saver .
-Touch and point of the screen can exit the screen saver,
Power Cable Connection

Basic operation

Switch On/ Off Host
On：If shut down by pulling off car keys last time, when insert again, it can automatically go into startup interface.
If shut down by pressing the power key last time ,when restart ,just only press the power key again .
Off：Pull off the car key, system can automatically identify and shut off .
Long time to press power key>2S,system can automatically shut off.
Remark: First power on, it will enter the Radio interface.
Main menu including in two pages which inlduing in 12 main functions as below :
[iPod]:Play the music from the Ipod (optional).
[TV]:Play TV by connecting the external TV box ( optional ).
[AUXIN]:Play external input device.
[Calendar]:Check the date .
[EQ]:Adjust the sound effect .
[SWC]:Set up SWC.
[Disc]:Play DVD. VCD CD and so on.
[USB]:Play the music picture and video.
[Bluetooth]:Bt phone function, answer,call and check the phone book,
[Radio]:Listen in FM.AM.
[GPS]:Enter GPS system.
[Setup]:Enter system.。
In any interface ,press the
Time set up
-Touch[
the picture:
-Touch[
-Touch[
-Touch[
Date set up
-
Touch
-
Touch
-
Touch
10：10
AM
2013.05.02 星期四
USB Input
Reverse In（Yellow）
RCA Cable Slot
ACC Red
Iginition Key 2A F use
RL
Green +
Speaker Rear L(+)
G reen and Black RL -
Speaker Rear L(-)
FL
W hite +
Speaker Front L(+)
FL -
W hite and Black
Speaker Front L(-)
Orange and Black
Steering Wheel Key 2
Orange and White
Steering Wheel Keyr 1
Brown
Brake
Pink
BACK C able
Black
Steering Wheel Ground Cable
Power Cable Diagram
：
play the music from the mobile phone.
" "
can go back to main interface
]enter set up , choose the" routine " ,choose "time" as
]set up minutre or hour.
]or[
]
]can switch between 12 hourly and 24 hourly.
[ ]
enter set up, as right picture,
[ ] [ ]
or set up year and month
"OK"
exit
SWC set up
- [ ]
Touch enter learning set up as right picture
- [ ]
Press when the color become to blue,press the key of swc,
it will show the key after setting up, save and exit.
-
Touch <clear> can clear all records .
Wallpaper set up
- [ ]
Touch can set up the wallpaer which you like
as right picture
Unit Back Diagram
GND Black
Ground Cable
Purple RR+
Speaker Rear R(+)
Purple and Black RR -
Speaker Rear R(-)
FR
G ray +
Speaker Front R(+)
Gray and Black FR-
Speaker Front R(-)
Blue and Black
ILL
Blue and White
CAN-L
Blue
ANT
Orange
Amplifier Control Cable
Yellow
Power B+
.
