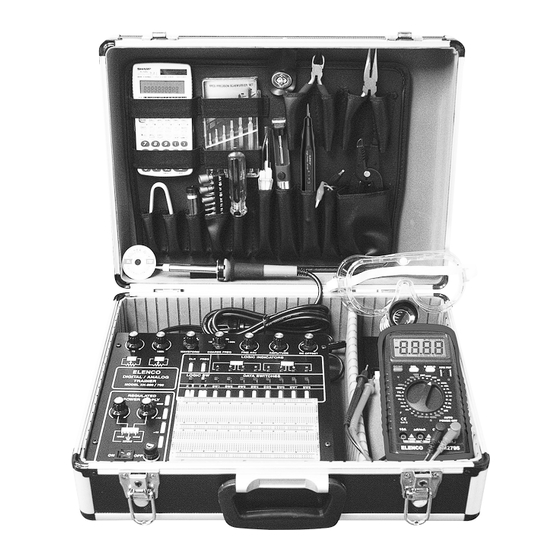

DIGITAL / ANALOG TRAINER

MODEL XK-700

A COMPLETE MINI-LAB FOR BUILDING, TESTING

AND PROTOTYPING ANALOG AND DIGITAL CIRCUITS

Tools and meter not included.

Instruction Manual

For Trainer with Organizer Case

Table of Contents

Need help?

Do you have a question about the XK-700 and is the answer not in the manual?

Page 1 DIGITAL / ANALOG TRAINER MODEL XK-700 A COMPLETE MINI-LAB FOR BUILDING, TESTING AND PROTOTYPING ANALOG AND DIGITAL CIRCUITS Tools and meter not included. Instruction Manual For Trainer with Organizer Case...
Page 2 INTRODUCTION Congratulations on your purchase of the Elenco ® Your XK-700 has four basic trainers in a single Model XK-700 Digital / Analog Trainer. This trainer package. They are, 5 independent power supplies, is designed to simplify designing of digital and an analog trainer, a digital and a bredblock analog circuits.
Page 3 GENERAL SPECIFICATIONS FOR MODEL XK-700 Power Supplies: • 0V to 20VDC @ 0.5A (0V to 15V @ 1A) • 0V to –20VDC @ 0.5A (0V to –15V @ 1A) • +12V + 5% @ 1A • –12V + 5% @ 1A •...
