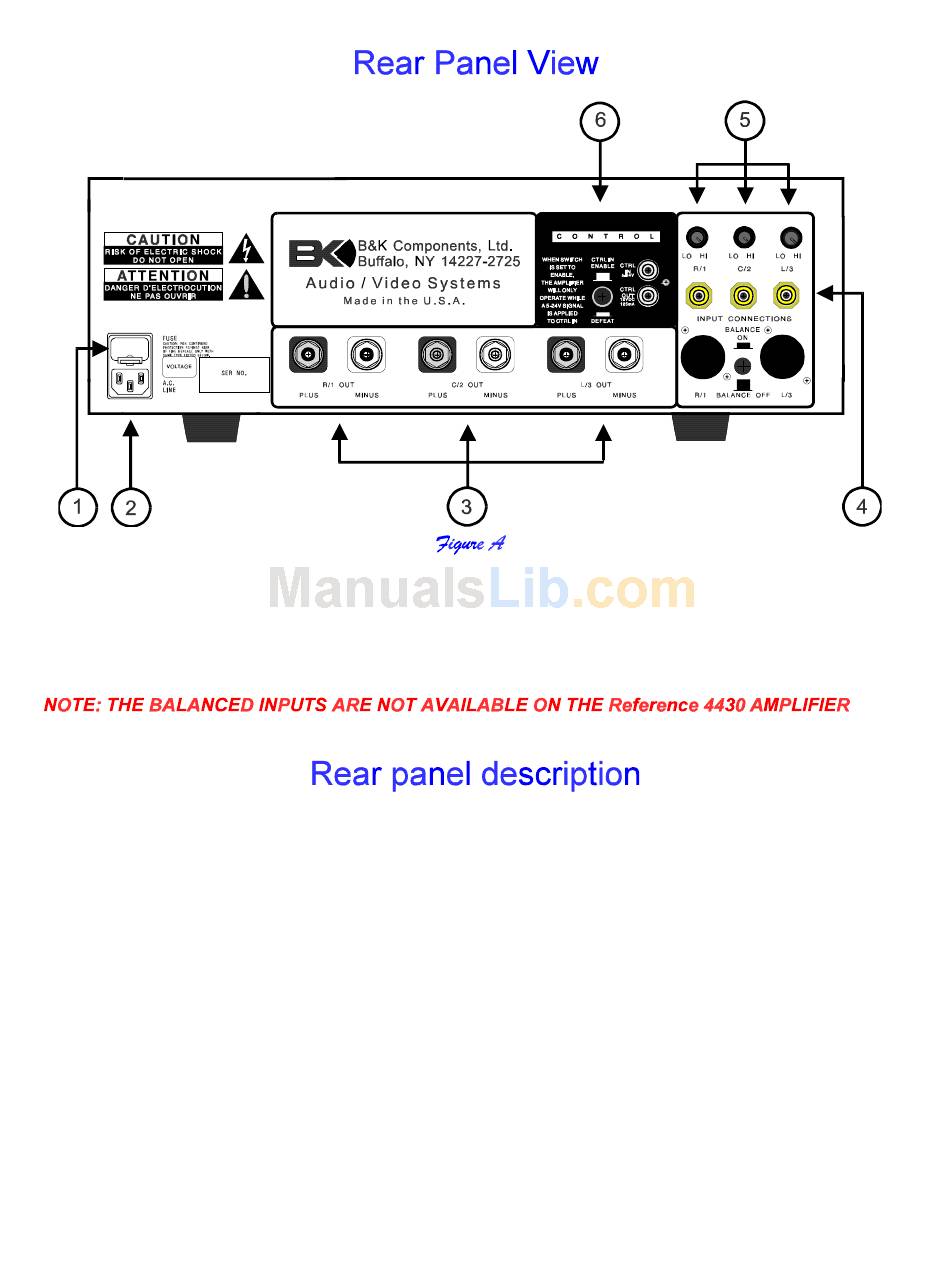

B&K Reference 4430 Owner's Manual page 6

B&k three channel amplifier owner's manual

1. AC fuse holder

2. AC Input receptacle

3. Speaker outputs

1. AC fuse holder -

2. AC Input receptacle - For attaching the supplied AC power cord to the

3. Speaker outputs -

4. Inputs -

4. Inputs

5. Level controls

6. Amplifier control muting input/output

Holds the AC Line fuse. This fuse is an 12 Amp / 250 Volt

Slow Blow fuse. Replace with same type and value fuse

only.

amplifier.

For connecting the speakers to the amplifier. Explained

further on page 7.

For connecting signal patch cables (interconnects) from the

preamplifier to the amplifier to pass signal. Explained further

on page 7.
