Summary of Contents for B&K Reference 4430

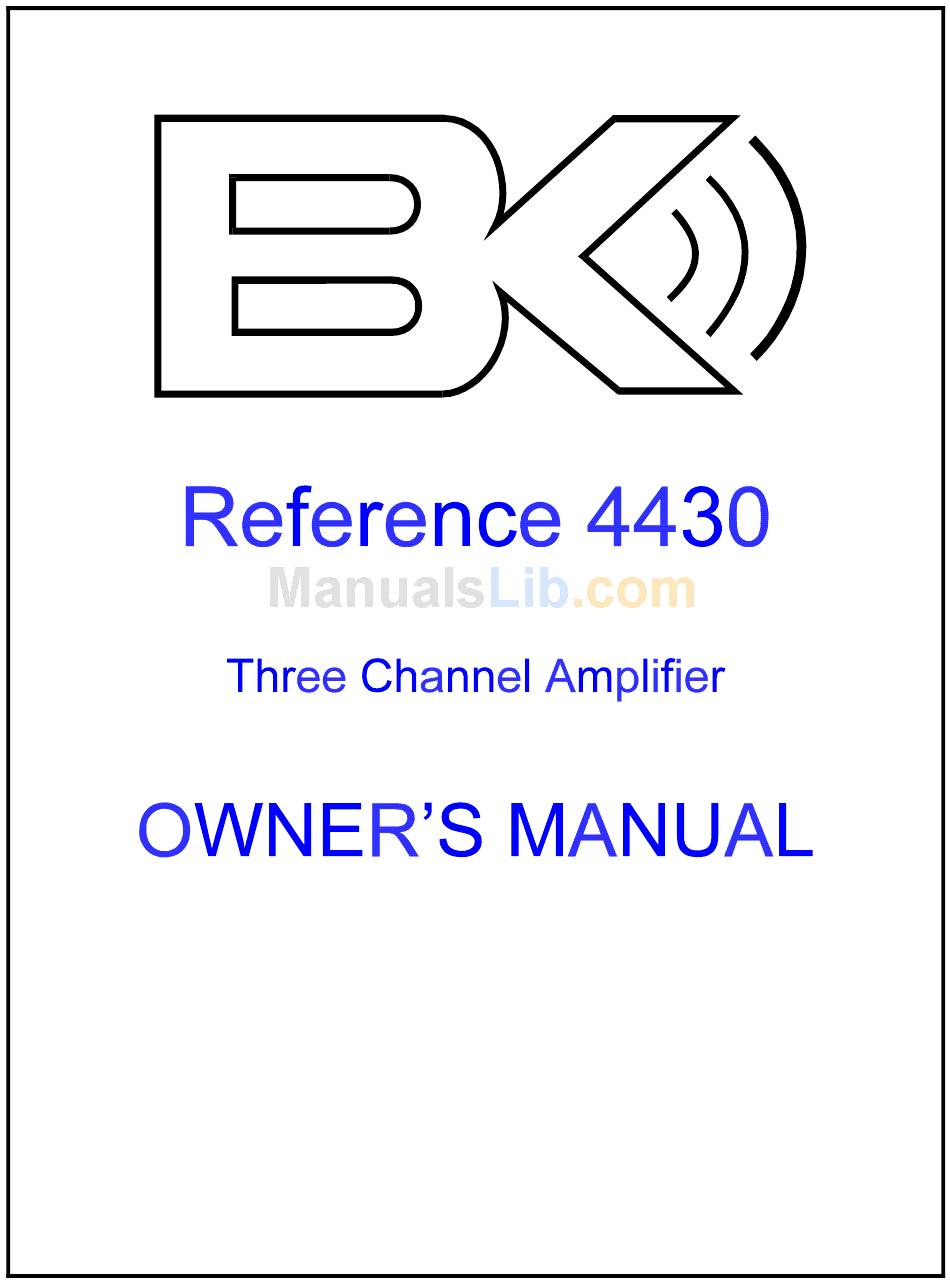

- Page 1 B & K Components Ltd. P/N 12694...
- Page 2 B&K Components, Ltd., 2100 Old Union Road, Buffalo, New York 14227...
- Page 3 Safety Precautions Purpose and function Design and construction Features Rear panel view Rear panel description Control muting Level controls Outputs Inputs System installation Making the connection Troubleshooting Care and cleaning Specifications Warranty Manual and Power cord Page 1 Page 2 Page 3 Page 3 Page 3...
- Page 4 Turn amplifier ‘off’ when plugging in or unplugging input and speaker cables!!! The Reference 4430 is equipped with raised feet so that continuous ventilation can be maintained. They help to maintain acoustic feedback into the amplifier at a minimum.
- Page 5 The Reference 4430 is a compact, very efficient, three channel power amplifier. It is designed to be used in all types of audio or audio/video systems. The Reference 4430 utilizes high quality electronic circuitry to achieve an environment wherein a detailed, transparent, and highly musical sound can be realized. The high...
- Page 6 1. AC fuse holder 2. AC Input receptacle 3. Speaker outputs 1. AC fuse holder - 2. AC Input receptacle - For attaching the supplied AC power cord to the 3. Speaker outputs - 4. Inputs - 4. Inputs 5. Level controls 6.
- Page 7 The preamplifier’s control output, such as is provided with B&K series preamplifiers, can be utilized to provide a control signal to the Reference 4430. If more than one amplifier is being controlled, the control signal can be extended to include...
- Page 8 If the control function is desired, each unit in the system must remain connected at all times and the control must be enabled. To enable the control function, the CTRL ENABLE button must be out for each controllable amplifier in the system. For more information on the amplifiers output status under various control conditions, refer to the table below.
- Page 9 Five way binding posts are provided. One pair for each channel. They are designed to accept a banana-type plug or spade lug connector (shown below) and are color coded for easy identification. The red (+) post should always be connected to the speakers (+) jack.
- Page 10 Here is a typical input setup: There will most likely be a number of cables involved in the installation of your home entertainment system. Pre-planning is essential in order to maximize system efficiency. We recommend the following as a means of helping you reach that goal: Make a diagram of your proposed system by laying out the relative location of each component in the system.
- Page 11 Before doing anything, ensure that the power switch on the amplifier’s front panel is in the ‘off’ position. Again, it is recommended that you locate a separate AC power outlet for the amplifier, one that is component in the system or any other house hold component. This will eliminate the possibility of the amplifier ‘modulating’...
- Page 12 PROBLEM No sound (‘on’ LED not illuminated) No sound on some or all selected channels (‘on’ LED illuminated) Sound lacks direction, bass weak Loud hum or buzz on one or more channels Low output from amplifier Channel sounds distorted and low in output ** Note : If unit continues to blow power inlet fuses, have it serviced...
- Page 13 Power rating: 8 ohms 4 ohms Frequency response Input sensitivity THD (S+N) Input impedance Damping factor Current (peak to peak) Slew rate Dynamic headroom S/N (A-weighted) Voltage gain Line voltage Dimensions (O.A.) Weight Power consumption Replacement fuses 200 watts @ 1 kHz 325 watts @ 1 kHz 5 Hz - 45 kHz 1.4 Volts...
- Page 14 B&K Components Ltd., referred to herein as B&K, warrants your B&K equipment against all defects in material and workmanship for a period of five years from the date of purchase. This warranty applies only to the original purchaser and only to equipment in normal residential use and service. Defective equipment must be returned to B&K, prepaid, accompanied by sufficient payment to cover the cost of return shipping and handling, and will be repaired or replaced at the discretion of B&K whose decision as to the method of reparation will be final.
- Page 15 B&K Components, Ltd., 2100 Old Union Road, Buffalo, New York 14227...
- Page 16 B&K Components, Ltd. 2100 Old Union Road Buffalo, New York 14227 716-656-0023 www.bkcomp.com...
