Safety Information; Meter Description - Extech Instruments EM100 User Manual

Safety Information

Extech Instruments does not assume any liability for damages to items or persons caused
by improper handling or non-compliance with the safety notices. Any warranty claim will
become null and void in such cases.
•
Do not bypass the conductive ground wire; this can pose a lethal hazard in the event
of a malfunction
•
Keep this device out of the hands of children
•
Only connect the EM100 Energy Logger to certified protected contact outlets (120V
AC 50/60 Hz) that include a ground connection
•
The connected load may not exceed 1400W (12A)
•
The recommended operating temperature range is 50 to 122°F (10 to 50°C). High
temperature, especially occurring during the measurement of high power loads, can
lead to overheating and permanent instrument damage
•
Avoid operating this instrument near flammable gases, vapors and dust
•
Never operate this instrument when it is wet or in a damp environment
•
When cleaning or servicing the instrument, disconnect it from any source of voltage.
Note that capacitors in the device may still be charged even if the device is
disconnected from all voltage sources
•
In schools, training facilities, hobby and work-shops, qualified personnel must
supervise the operation of this instrument
•
In commercial institutions, observe the accident prevention regulations of the
commercial trade organization for electric installations
•
Do not insert any objects into this device

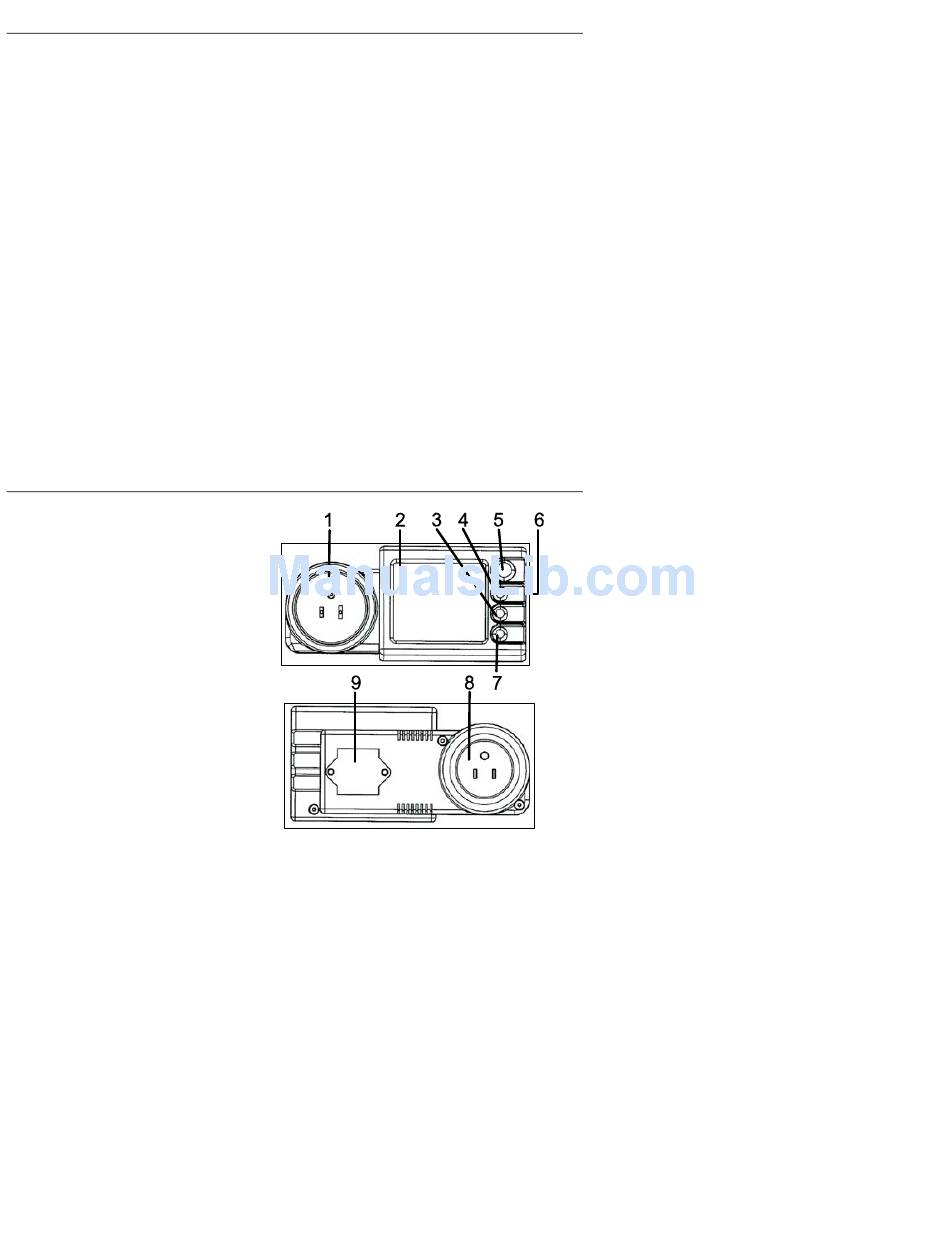

Meter Description

1. 120V socket
2. LCD Display
3. MIN/▼ button
4. MAX/▲button
5. MODE button
6. SD Card Slot
►button
7.
8. 120V plug
9. Battery compartment
3
EM100 V2.0 07/09
