Summary of Contents for Extech Instruments EM100

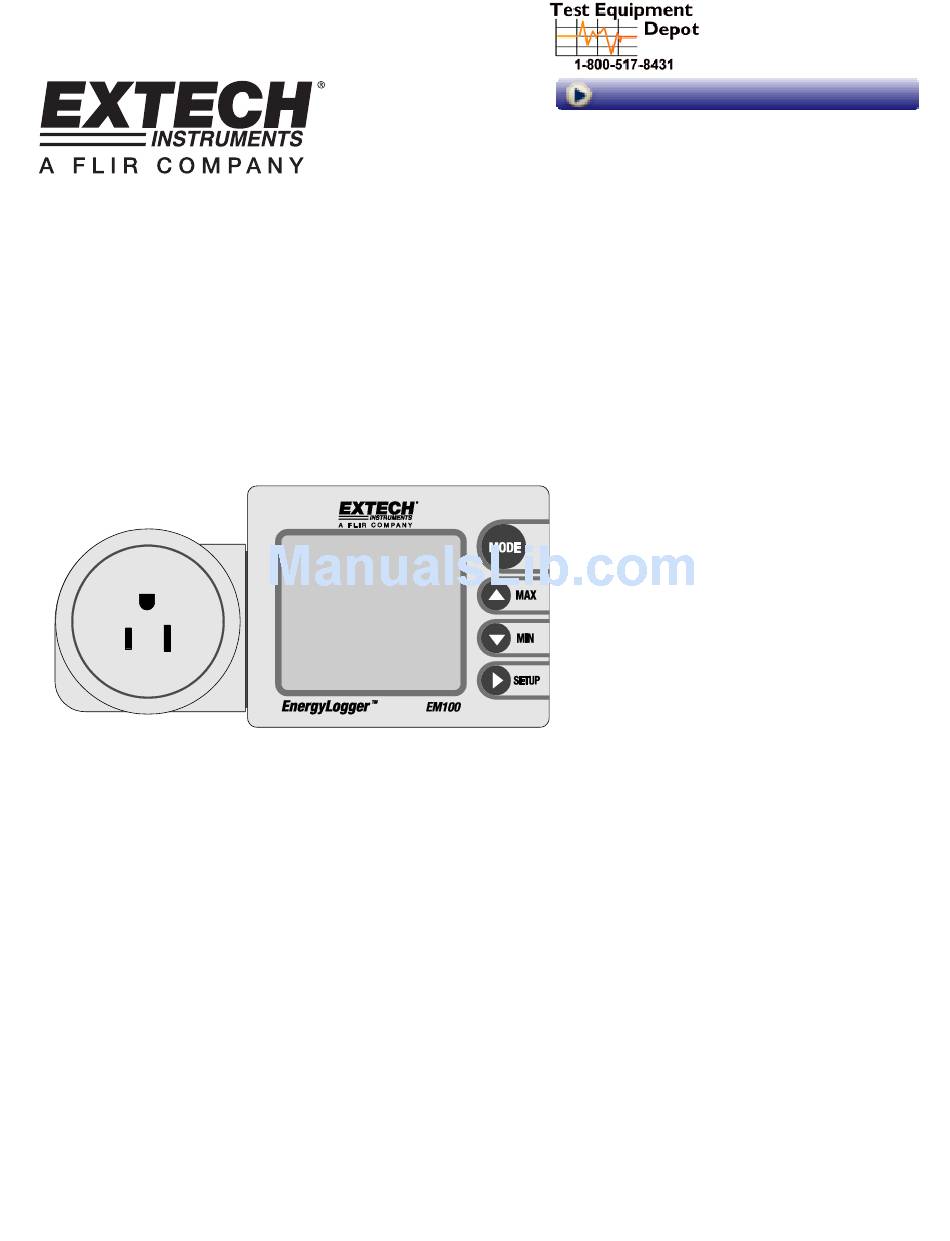

- Page 1 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 User's Guide Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com Energy Logger Model EM100...
- Page 2 - The maximum power of any connected load may not exceed 1400W (max. current 12A) - Operation of the EM100 Energy Logger is permitted in dry, interior spaces only. This device must not be used outdoors - Always observe the declarations on the identification labels of connected power loads Uses other than the ones described in this manual may lead to product damage and are associated with hazards such as short circuits, fire, electric shock, etc.
-
Page 3: Safety Information
Safety Information Extech Instruments does not assume any liability for damages to items or persons caused by improper handling or non-compliance with the safety notices. Any warranty claim will become null and void in such cases. • Do not bypass the conductive ground wire; this can pose a lethal hazard in the event of a malfunction •... -
Page 4: Operation
4. Press the “right arrow” button to move to the next digit. Repeat this procedure until the costs are set correctly. 5. Press the “MODE” button after setting the last digit of cost 2 (while it is still flashing) to save the setting and start the unit. EM100 V2.0 07/09... - Page 5 Displays Before connecting the EM100 to an outlet or power load, the desired power costs must be set. The procedure for entering the power costs is described under Initial Setting. Display of Voltage, Current and Frequency (Power 1 Mode) Immediately after the instrument is plugged into an outlet, the supply voltage, frequency of the supply voltage and consumption of a connected load are displayed in the LCD.
- Page 6 The current time, date and year are displayed. 1. Press the “right arrow” button to display the time and date format. The display automatically resets after 5 seconds. 2. Press the “MODE” button to return to the Power 1 mode. EM100 V2.0 07/09...
- Page 7 Memory (MEM) Record and Transfer Feature The EM100 can store up to 200 days of recorded measurement data (approx. 300K) in its internal memory. The unit records a reading once per minute (each reading represents an average of 60 readings taken once per second).
-
Page 8: Maintenance
The supplied software also displays recorded data, performs calculations, and permits the storage of data and configuration settings. Instructions on the use of the software are included in the program’s HELP utility. Install and run the software to access the HELP utility. EM100 V2.0 07/09... - Page 9 1 (for values over 1000) Rec time and ON time 0.001 (for values under 10) 0.01 (for values between 10 and 100) 0.1 (for values between 100 and 1000) 1 (for values over 1000) EM100 V2.0 07/09 Visit us at www.TestEquipmentDepot.com...
