Summary of Contents for Esatto ETL6.1

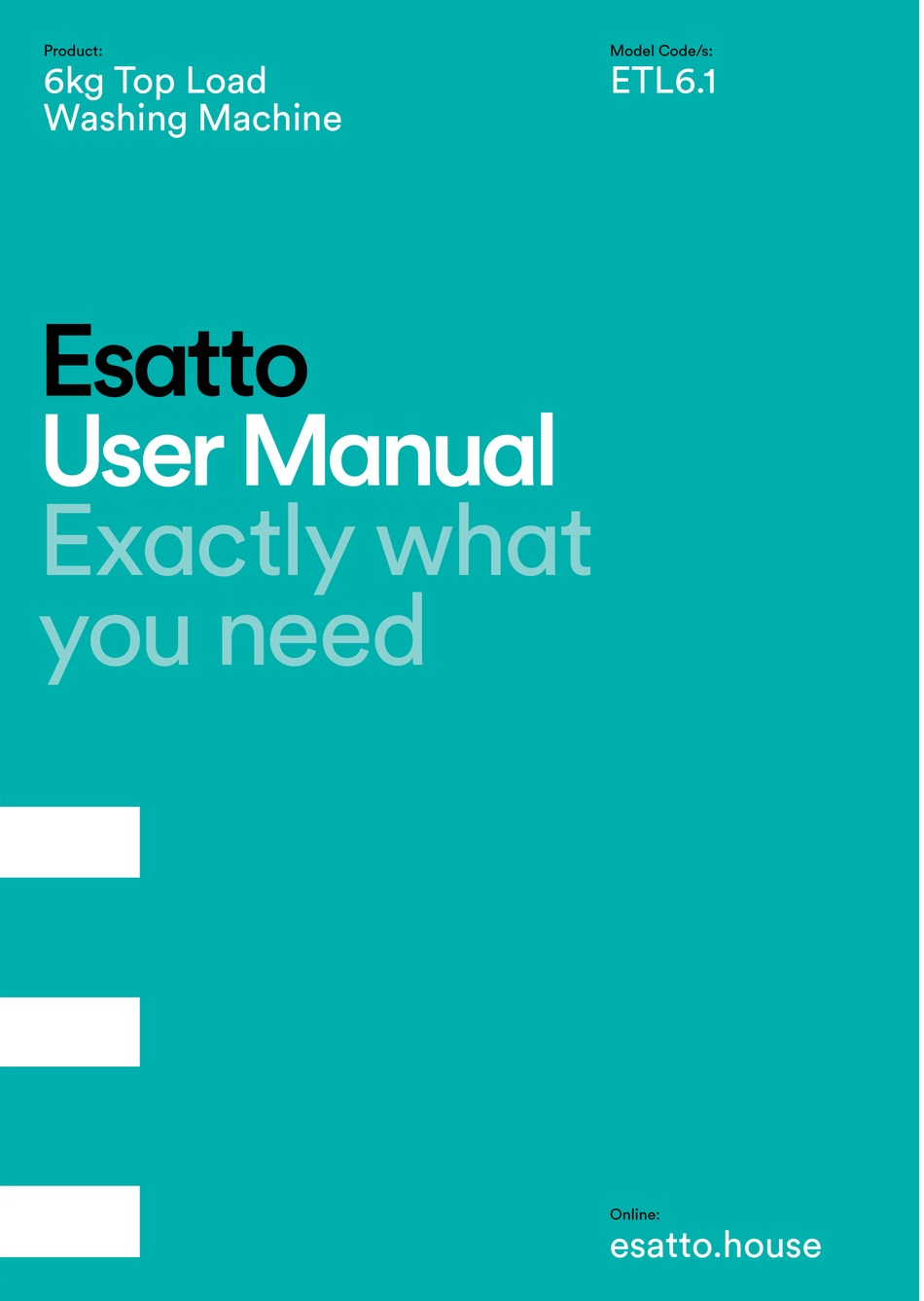

- Page 1 Product: esatto.house Model Code/s: 6kg Top Load ETL6.1 Washing Machine User Manual Exactly what you need Online: esatto.house...
- Page 2 — to ensure optimum performance. Email support@residentiagroup.com.au Again, thank you for choosing an Esatto appliance and we look forward to being of service to you. Kind Regards, The Residentia Team...
-
Page 3: Table Of Contents
Contents Welcome Safety Instructions Your Washing Installation Machine Instructions Quick Operating Start Guide Your Washing Machine Cleaning & Troubleshooting Maintenance Technical Warranty Specifications Information... -
Page 4: Safety Instructions
User Manual Safety Instructions Caution! → This appliance is only intended for use within the interior of a domestic environment. During unpacking, the packaging materials (polythene → This appliance is not intended for use by persons bags, polystyrene pieces, etc.) should be kept out of reach (including children) with reduced physical, sensory of children. -
Page 5: Your Washing Machine
Your Washing Machine Power cord/plug Adjustable Feet... -
Page 6: Installation Instructions
User Manual Installation Instructions POWER SOURCE AND GROUNDING → It’s recommended to use the washing machine on it’s own dedicated power outlet for both convenience and safety. The power outlet must be grounded. Important! If the power cord is damaged, it must be replaced by Residentia Group or one of it’s authorised service representatives. - Page 7 Small ball Push down the slide jacket to expose the small balls and enable separation of connector socket from speedy connector. Unscrew four screws of part A and sleeve part A horizontally over the mouth at the end of...
- Page 8 User Manual...
-
Page 9: Quick Start Guide
Quick Start Guide Install your washing machine Load the laundry Measure the detergent & pour in the appropriate amount Close the machine door Put down (or hang up) the drain pipe Turn on the water supply Plug in the power supply... -
Page 10: Operating Your Washing Machine
User Manual Operating Your Washing Machine WATER LEVEL: Press this button to set your Water Level, where 1 is low and 6 is high. A solid indicator light indicates the water levels to the left (1, 3, 5) and a flashing indicator light indicates the water levels to the right (2, 4, 6). - Page 11 START/PAUSE: After selecting your desired wash settings, press this button to start your wash cycle. You can also use this button to pause the washing machine during POWER: operation. Press this button to turn your washing machine On or Off.
- Page 12 User Manual User Manual Operating Your Washing Machine (Continued) Operating Your Washing Machine (Continued) WASH PROGRAMS WASH PROGRAMS Program: Program: Wash Time: Wash Time: Rinse Time: Rinse Time: Spin Time: Spin Time: Total Time: Total Time: 7 minutes 7 minutes 15 minutes 15 minutes Soak 13 minutes...
- Page 13 PROCEDURE FOR SETTING A SINGLE WASH Load your washing into the machine. Switch on the washing machine with the POWER button. Use the PROGRAM button to select the desired wash program, which will be indicated by a solid light.
-
Page 14: Cleaning & Maintenance
User Manual Cleaning & Maintenance... -
Page 15: Troubleshooting
Troubleshooting OPERATION IN CASE OF EMERGENCY In the event of an emergency you should: → Switch off all controls. → Switch the washing machine off at the power point or at the fuse box. → Call the Residentia Support Team on 1300 11 HELP (4357). - Page 16 User Manual Troubleshooting (Continued) When the washing machine experiences a fault, please contact the Residentia Group support team on: Telephone: 1300 11 HELP (4357). WARNING! Never dismantle the washing machine. ERROR MESSAGES AND SOLUTIONS:...
-
Page 17: Technical Specifications
Technical Specifications Below outlines the technical specifications for your Esatto Washing Machine. 550w x 565d x 950h (mm) 0.03Mpa 0.8Mpa NOTE: This product is subject to continuous improvement, specifications are subject to change without prior notice. This product was tested in accordance with AS/NZS 2040.2 and AS/NZS 6400 using program:... -
Page 18: Warranty Information
User Manual Warranty Information WARRANTY TERMS AND CONDITIONS IN THIS WARRANTY LAUNDRY APPLIANCES ‘acceptable quality’ as referred to in clause 10 of this warranty has the same meaning referred to in This document sets out the terms and conditions of the the ACL;... - Page 19 You will bear the cost of transportation, travel and For Appliances and services provided by Residentia delivery of the Appliance to and from Residentia Group in Australia, the Appliances come with a Group or its ASR. If you reside outside of the service...
- Page 20 User Manual VERSION 1.2 Appliances Exactly what you need A RESIDENTIA GROUP INITIATIVE...
