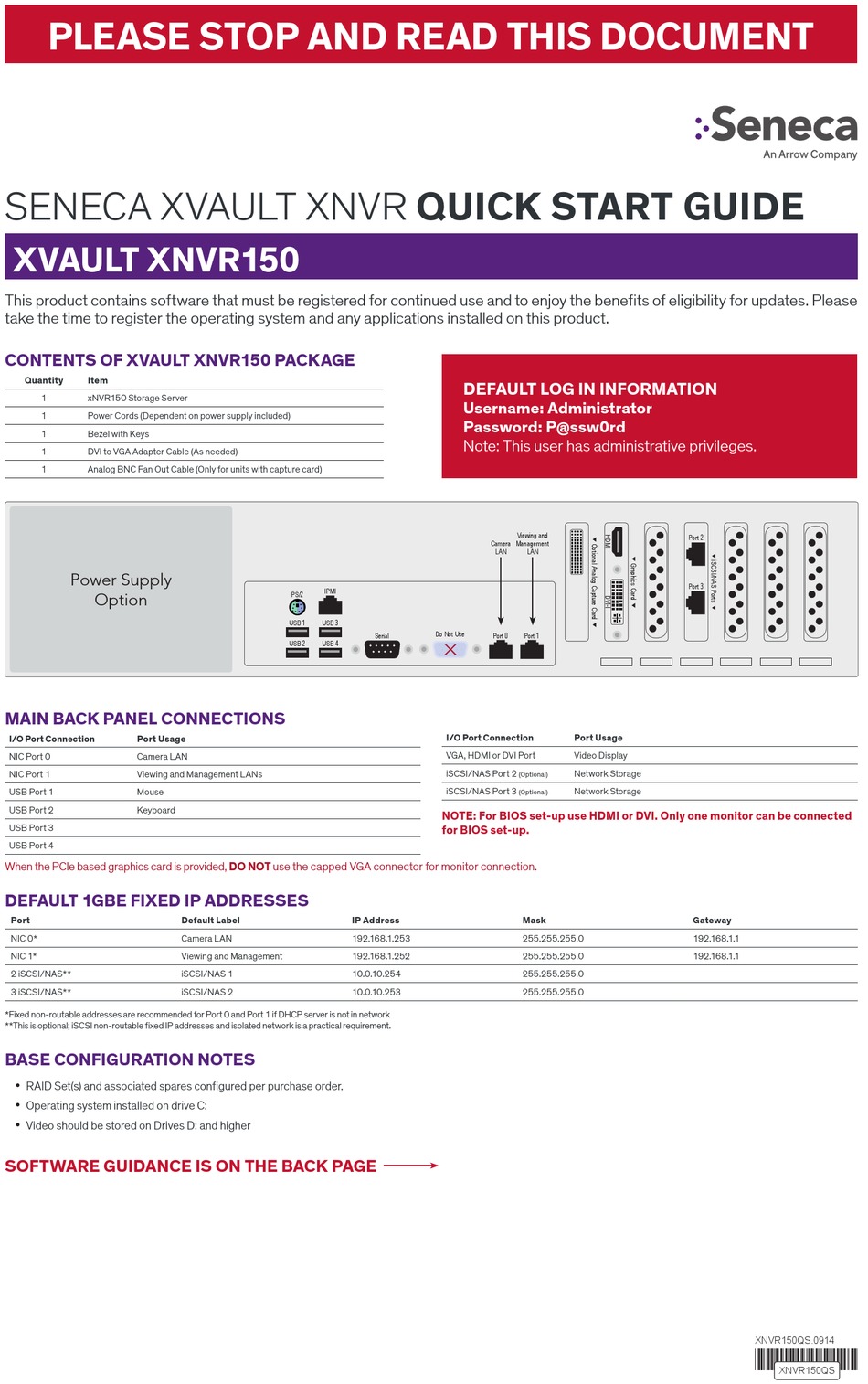

Seneca XVAULT XNVR150 Quick Start Manual

Please stoP and read this document
SENECA XVAULT XNVR QuicK start Guide
XVault XnVr150
This product contains software that must be registered for continued use and to enjoy the benefits of eligibility for updates. Please
take the time to register the operating system and any applications installed on this product.
contents oF XVault XnVr150 PacKaGe
Quantity item
1 xNVR150 Storage Server
1 Power Cords (Dependent on power supply included)
1 Bezel with Keys
1 DVI to VGA Adapter Cable (As needed)
1 Analog BNC Fan Out Cable (Only for units with capture card)

Power Supply

Option
main bacK Panel connections
i/o Port connection Port usage
NIC Port 0 Camera LAN
NIC Port 1 Viewing and Management LANs
USB Port 1 Mouse
USB Port 2 Keyboard
USB Port 3
USB Port 4
When the PCIe based graphics card is provided, do not use the capped VGA connector for monitor connection.
deFault 1Gbe FiXed iP addresses
Port
NIC 0*
NIC 1*
2 iSCSI/NAS**
3 iSCSI/NAS**
*Fixed non-routable addresses are recommended for Port 0 and Port 1 if DHCP server is not in network
**This is optional; iSCSI non-routable fixed IP addresses and isolated network is a practical requirement.
base conFiGuration notes
•
RAID Set(s) and associated spares configured per purchase order.
•
Operating system installed on drive C:
•
Video should be stored on Drives D: and higher
soFtware Guidance is on the bacK PaGe
IPMI
PS/2
USB 1 USB 3
USB 2 USB 4
default label
Camera LAN
Viewing and Management
iSCSI/NAS 1
iSCSI/NAS 2
deFault loG in inFormation
username: administrator
Password: P@ssw0rd
Note: This user has administrative privileges.
Camera
LAN
Do Not Use
Serial Port 0
i/o Port connection
VGA, HDMI or DVI Port
iSCSI/NAS Port 2
iSCSI/NAS Port 3
note: For bios set-up use hdmi or dVi. only one monitor can be connected
for bios set-up.
iP address
192.168.1.253
192.168.1.252
10.0.10.254
10.0.10.253
Viewing and
Management
LAN
Port 1
Port usage
Video Display
Network Storage
(Optional)
Network Storage
(Optional)
mask
255.255.255.0
255.255.255.0
255.255.255.0
255.255.255.0
Port 2
Port 3
Gateway
192.168.1.1
192.168.1.1
XNVR150QS.0914
*XNVR150QS*
XNVR150QS
