Dishwasher
Before installation, please read the safety precautions on the reverse side!

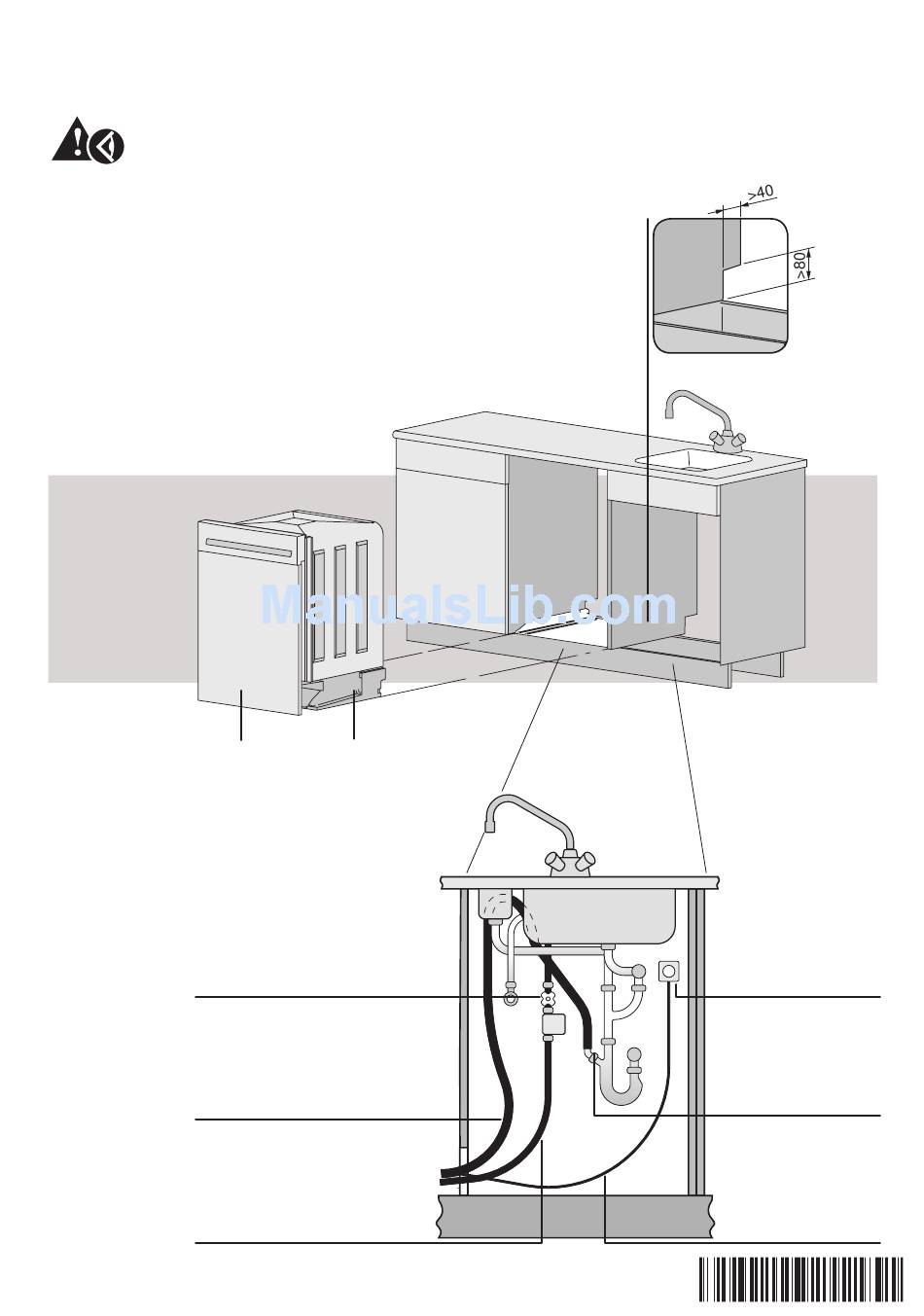

Appliance components
Front panel/decorative system
EN
– Installation instructions
Base
Water tap
Drain pipe
Aqua-Stop/inlet pipe
Recess for pipes
>40 × 80 mm
Power socket
Drain trap connection
Mains connection
J163113-R06
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for V-ZUG GS60SZGVI
Summary of Contents for V-ZUG GS60SZGVI
- Page 1 Dishwasher – Installation instructions Before installation, please read the safety precautions on the reverse side! Appliance components Recess for pipes >40 × 80 mm Front panel/decorative system Base Water tap Power socket Drain pipe Drain trap connection Aqua-Stop/inlet pipe Mains connection J163113-R06...
- Page 2 Application height of the appliance: up to max. 2000 m above sea level. For Service and Spare Part Information please contact: V-ZUG AUSTRALIA Pty. Ltd. Tel +61 7 3209 6822...
- Page 3 Dishwasher – Installation instructions Water/electrical connection <60 °C Water inlet 1,6 m Water outlet pipe ø 22 mm 1–10 bar Working pressure 0,1–1 MPa +5 °C Minimum ambient temperature 1,5 m Inlet pipe, Aqua-Stop G¾" If the water pressure is too high, a pressure reducer valve must be fitted. Remove all flaps from drain trap Clean drain trap Disconnect feeder...
- Page 4 Dishwasher – Installation instructions Connect drain hose with drain trap Fix drain hose at the top with assembly set Do not bend drain hose Fix drain hose with clamp max. 10 Nm Connect Aqua-Stop onto the tap Check the connection for leaks Do not bend inlet hose For water pressure at <1 bar: •...
- Page 5 Dishwasher – Installation instructions Check connection values Plug in The building connection must match the information on the identification plate. Connect up to building supply 400 V 2N~ 50 Hz, 10 A 230 V~ 50 Hz, 16 A 230 V~ 50 Hz, 10 A Connection values: 4 ×...
- Page 6 Dishwasher – Installation instructions Empty the appliance Installation test Select the test by pressing and holding down the buttons at the same time within 15 seconds בתוך 51 שניות Close appliance door The test starts in 15 seconds It takes approx. 2 minutes If error messages occur: rectify fault according to the operating instructions U1/U2...
