- Page 1 User’s Manual Version 1.2 December 2002 Downloaded from www.Manualslib.com manuals search engine...
-
Page 2: Safety Instructions
TUBE ULTRAGAIN T1953 SAFETY INSTRUCTIONS CAUTION: To reduce the risk of electric shock, do not remove the cover (or back). No user serviceable parts inside; refer servicing to qualified personnel. WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. - Page 3 VINTAGER models for the first time, was a lasting incentive driving our development efforts. It is our philosophy to share our joy with you, because you are the most important member of the BEHRINGER family. With your highly competent suggestions for new products you’ve greatly contributed to shaping our company and making it successful.
- Page 4 Servo-balanced gold-plated XLR and 1/4" TRS inputs and outputs s High-quality detented potentiometers and switches with vintage-style knobs s Huge back-lit analog VU meters and stylish “retro” design s BEHRINGER’s high-performance OT-1 output transformer retrofitable s Manufactured under ISO9000 certified management system Downloaded from www.Manualslib.com...
-
Page 5: Table Of Contents
TUBE ULTRAGAIN T1953 TABLE OF CONTENTS 1. INTRODUCTION ........................6 1.1 The concept ............................ 6 1.2 Before you get started ........................7 1.3 Control elements ..........................7 2. OPERATION .......................... 10 3. APPLICATIONS ........................11 3.1 The TUBE ULTRAGAIN as a microphone preamp ................11 3.2 The TUBE ULTRAGAIN as a level converter ................... -
Page 6: Introduction
The heart of the TUBE ULTRAGAIN is an extremely low-noise microphone preamp circuit that uses discrete components to produce a highly transparent sound. In combination with our BEHRINGER tube technology, the operational amplifiers 4580 and a sophisticated circuit topology, the TUBE ULTRAGAIN yields excellent noise and distortion properties! The switchable +48 V phantom power supply allows for connecting almost any kind of microphone and suppresses power-up thumps with its “soft mute”... -
Page 7: Before You Get Started

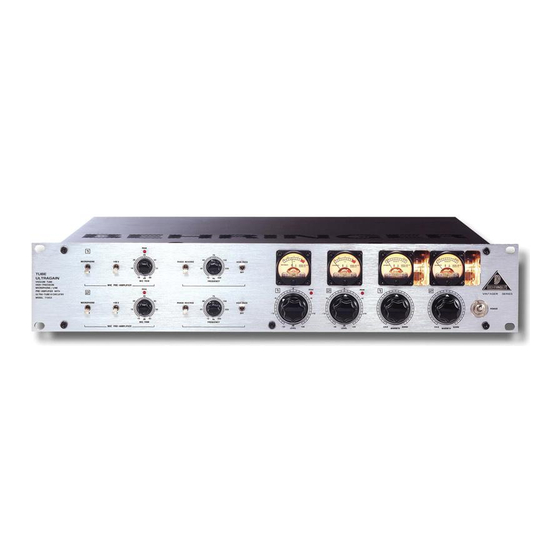

Shipping claims must be made by the consignee. The BEHRINGER TUBE ULTRAGAIN fits into two standard 19" rack units of space (3 1/2" / 89.5 mm). Please allow at least an additional 4" depth for the connectors on the back panel. - Page 8 TUBE ULTRAGAIN T1953 Fig. 1.2: Control elements on the front panel Use the MIC/LINE switch to toggle between MIC and LINE modes. When the switch in up position, the unit works in MIC mode (now you can activate the +48 V switch if required; in LINE mode this function is disabled).
- Page 9 TUBE ULTRAGAIN T1953 Fig. 1.3: Tube section of the TUBE ULTRAGAIN Use the LEVEL control to set the signal gain at the input of the tube stage. The gain can be set from -20 to +20 dB, i.e. the signal can be attenuated or amplified by 20 dB. When the control is at its center position, the level is unaltered.
-
Page 10: Operation
The nominal level is +4 dBu. The maximum output level is +16 dBu. 2. OPERATION Before you can use the BEHRINGER TUBE ULTRAGAIN as a preamp, we recommend that you study the various functions of the device. The high gain factors provided by the microphone preamp can produce extreme levels on the output side, which may damage subsequent devices. -
Page 11: Applications
A/B comparison. The WARMTH control The UTC circuitry forms an integral part of the BEHRINGER TUBE ULTRAGAIN. It provides the distinct tube sound. Gently turn the control clockwise to add increasing amounts of harmonics. It improves the transparency of other instruments, particularly those rich in upper harmonics. The WARMTH meters provide an instant overview of the process. -
Page 12: The Tube Ultragain As A Level Converter
Yet, the increase in loudness goes in line with a need for optimized audio quality. Today, audiences expect to hear a powerful and transparent sound. To fully understand how the BEHRINGER TUBE ULTRAGAIN works you will need to know the meaning of a decibel and how audio dynamics work. -
Page 13: Audio Dynamics
TUBE ULTRAGAIN T1953 Jet Engine Threshold Of Pain Power Drill Machinery Hall "Loud" Office Normal Conversation Quiet Apartment Recording Studio Falling Leaves Threshold Of Audibility Fig. 4.1: Dynamic range of human hearing The range of sound pressure levels or the dynamic range of human hearing encompasses a factor of 10,000,000. -
Page 14: What Are Audio Dynamics
TUBE ULTRAGAIN T1953 without components. Even if special low-noise components are used, a certain degree of basic noise cannot be avoided. This effect is similar when replaying a tape. The non-directional magnetic particles passing the replay head can also cause uncontrolled currents and voltages. The resulting sound of the various frequencies is heard as noise. -
Page 15: The Tubes Used In The Tube Ultragain
TUBE ULTRAGAIN T1953 Fig. 4.3: The interactive relationship between operating level and headroom The need therefore arises for a fast acting automatic gain control system which will constantly monitor the signals and which will always adjust the gain to maximize the signal-to-noise ratio without incurring signal distortion. -
Page 16: Design And Functional Principle Of Tubes
TUBE ULTRAGAIN T1953 With the introduction of semiconductor technologies in the field of audio amplification it soon became clear that the tube would have to give way to the transistor, as this device featured an enormously enhanced signal- to-noise ratio, less complex power supply and improved frequency response. Plus, semiconductor-based circuits can be realized much more easily—for less money. -
Page 17: Properties Of Tubes
TUBE ULTRAGAIN T1953 Fig. 4.6: Pentode In a triode the capacitance between grid and anode is a problem with regard to high frequencies and large amplification factors. For this reason, the pentode has a positively charged screen grid between the control grid and the anode. -
Page 18: The Best Of Both Worlds
TUBE ULTRAGAIN T1953 4.6 The best of both worlds Despite many efforts neither manufacturers nor developers have succeeded so far in simulating these positive properties of the tube by means of other devices. Additionally, the natural capabilities of the tube to act as a soft limiter can only be mimicked with highly sophisticated circuitry. -
Page 19: Phantom Power
TUBE ULTRAGAIN T1953 Fig. 4.8: Dynamic range of various media 4.9 Phantom power Condenser microphones need a specific supply voltage polarizing the condenser diaphragm. This voltage can be furnished from an internal battery, or an external power supply that is either connected directly to the microphone or supplies the voltage through the microphone cable. -
Page 20: Installation
5.1 Rack mounting The BEHRINGER TUBE ULTRAGAIN fits into two standard 19" rack units of space (3 1/2" / 89.5 mm). Please allow at least an additional 4" / 10 cm depth for the connectors on the back panel. Be sure that there is enough air space around the unit for cooling and please do not place the TUBE ULTRAGAIN on high temperature... -
Page 21: Audio Connections
The transformer-balanced outputs, commonly used in radio and TV engineering, can also be fitted retrospectively upon request. The BEHRINGER transformer OT-1 is designed to the highest exacting standards and is available as an accessory. -
Page 22: Specifications
10 kg BEHRINGER is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may be made from time to time to existing products without prior notice. Specifications and appearance may differ from those listed or shown. -
Page 23: Warranty
(user included) will void the warranty. this warranty as described under § 3 and 4, BEHRINGER shall, at its discretion, either replace or repair the product using suitable 6. If an inspection of the product by BEHRINGER shows that the new or reconditioned parts.
