Reynolds Building Systems the Easton Assembly Manual page 8

12'x 20'

Advertisement

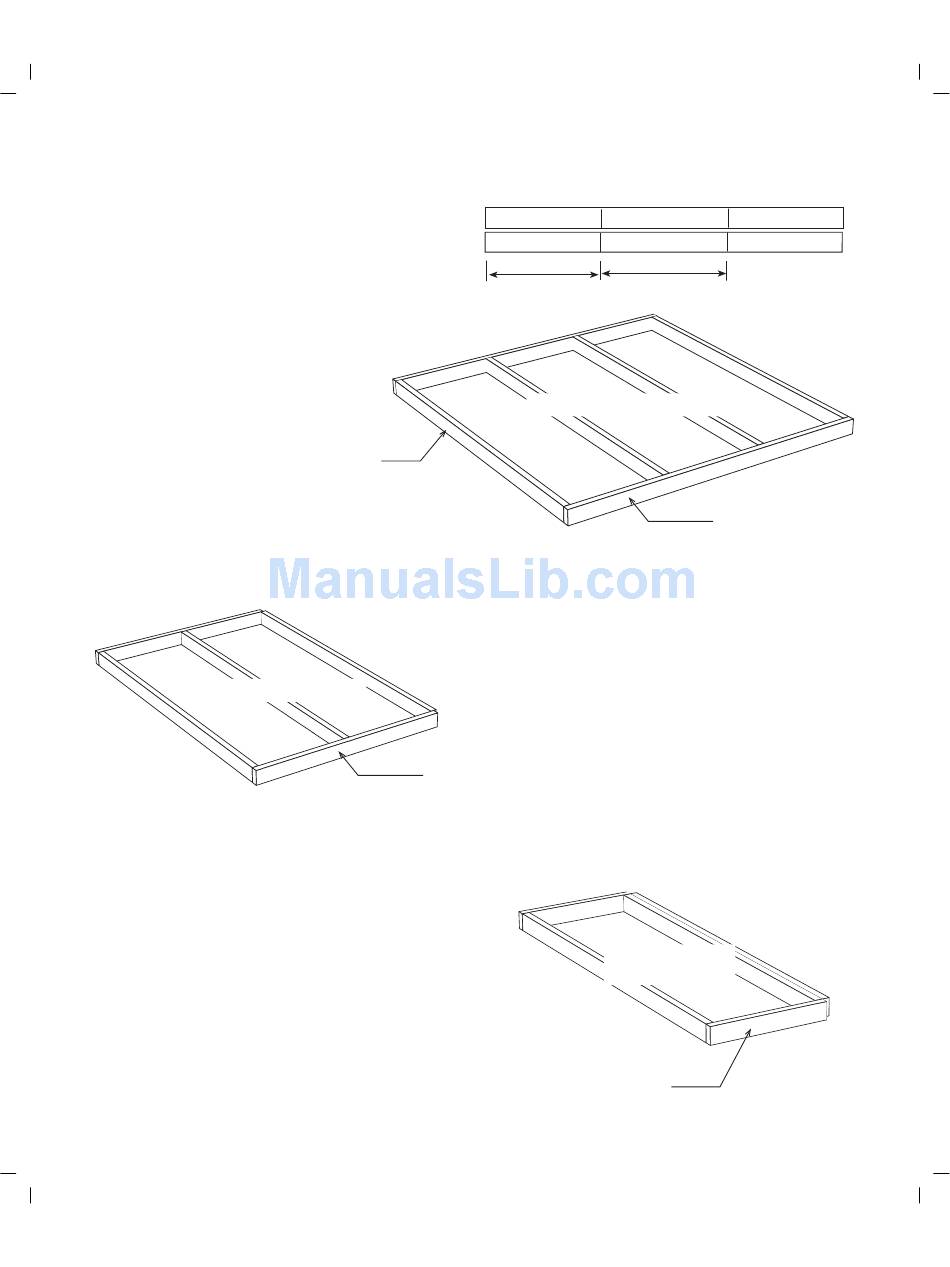

Step 5
Assemble Back & Front Wall Frames
1. Position (2) two 2x4-72" boards together
and indicate with 'X' marks, where the
wall studs will be located.
2. Install (4) four 72" long wall studs
between the wall plates
72" Wall Stud
3. Repeat process to assemble (3) three
more 72" long wall frames.
Make (2) Two Frames
6. Install (2) two 2x4-72" wall studs between (2) two 24" long 2x4s.
7. Repeat to make (1) one more 24" frames.
X
X
X
X
23-1/4"
Make (4) Four Frames
4. Install (3) three 2x4-72" wall studs between
(2) two 48" long 2x4s. Install the stud in the
center of the wall frame.
5. Repeat to make (1) one more 48" frame.
48" Wall Plate
24" Wall Plate
72" Wall Plate
X
X
24"
72" Wall Plate
Make (2) Two
Frames
X
X
