LaserPerformance SUNFISH Rigging Manual page 5

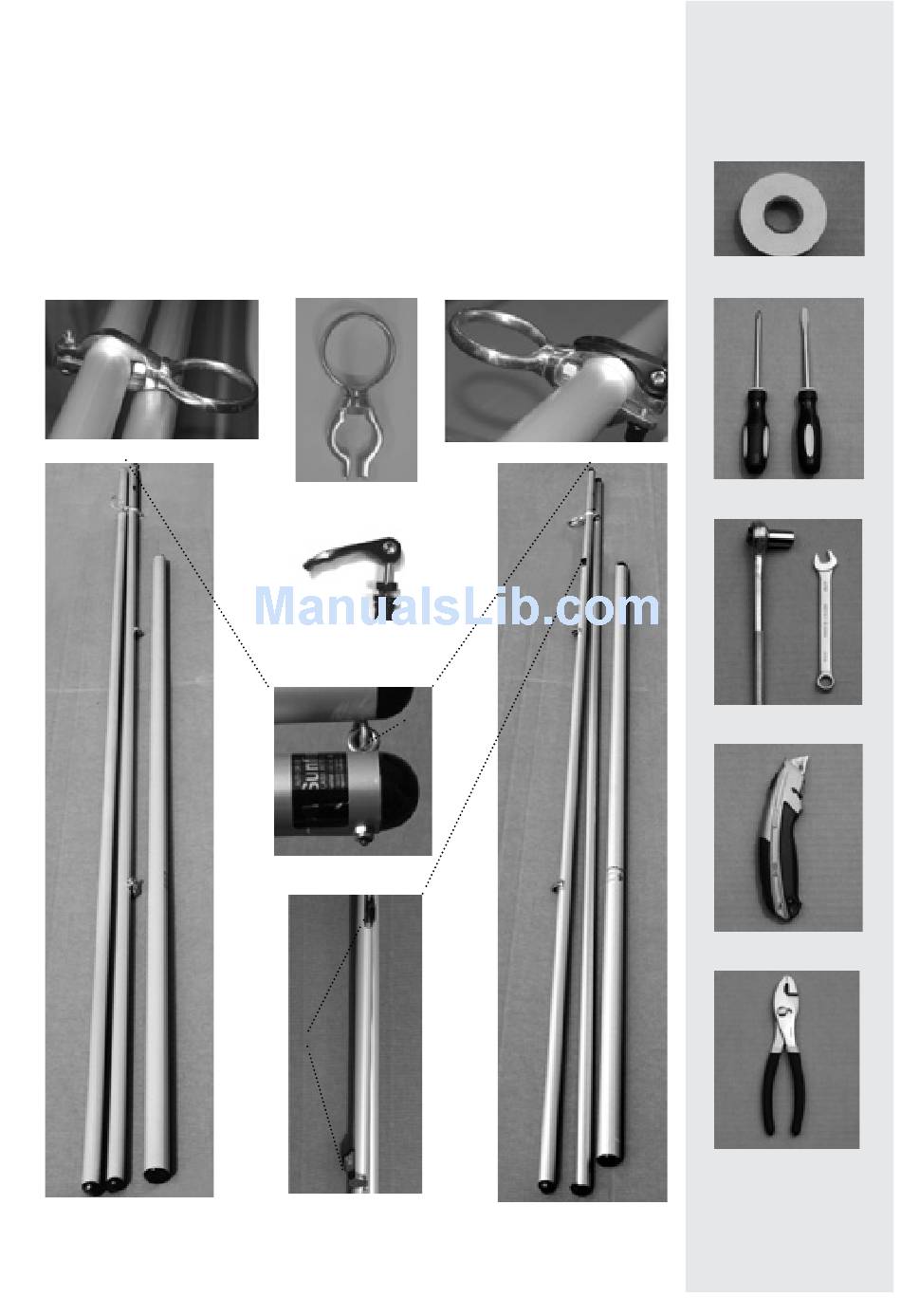

3. Sunfish Mast Kit
Locate the mast, upper and lower boom. The upper and lower boom will be connected at
one end with two interlocking eye bolts (figure 3). The gooseneck (figure 4) will come as-
sembled on the lower boom. Depending on the model that you purchased, the gooseneck
bolt may differ in appearance. On the Sunfish Race model the gooseneck comes equipped
with a quick adjust lever (figure 5). This lever can easily be released in order to adjust the
positioning of the gooseneck on the lower boom. Also located on the Sunfish Race lower
boom are two outhaul clam cleats (figure 6).
Sunfish Mast Kit Standard
STANDARD MAST AND BOOM SET
Be sure to remove any bubble wrap and plastic coating before rigging.
figure 4
figure 5
INTERLOCKING
EYE BOLTS
figure 3
CLEATS
figure 6
Sunfish Mast Kit Race
RACE MAST AND BOOM SET
Here is a list
of tools needed
to assemble your
new Sunfish:
ELECTRICAL TAPE
SCREWDRIVERS
WRENCHES
UTILITY KNIFE
PLIERS
