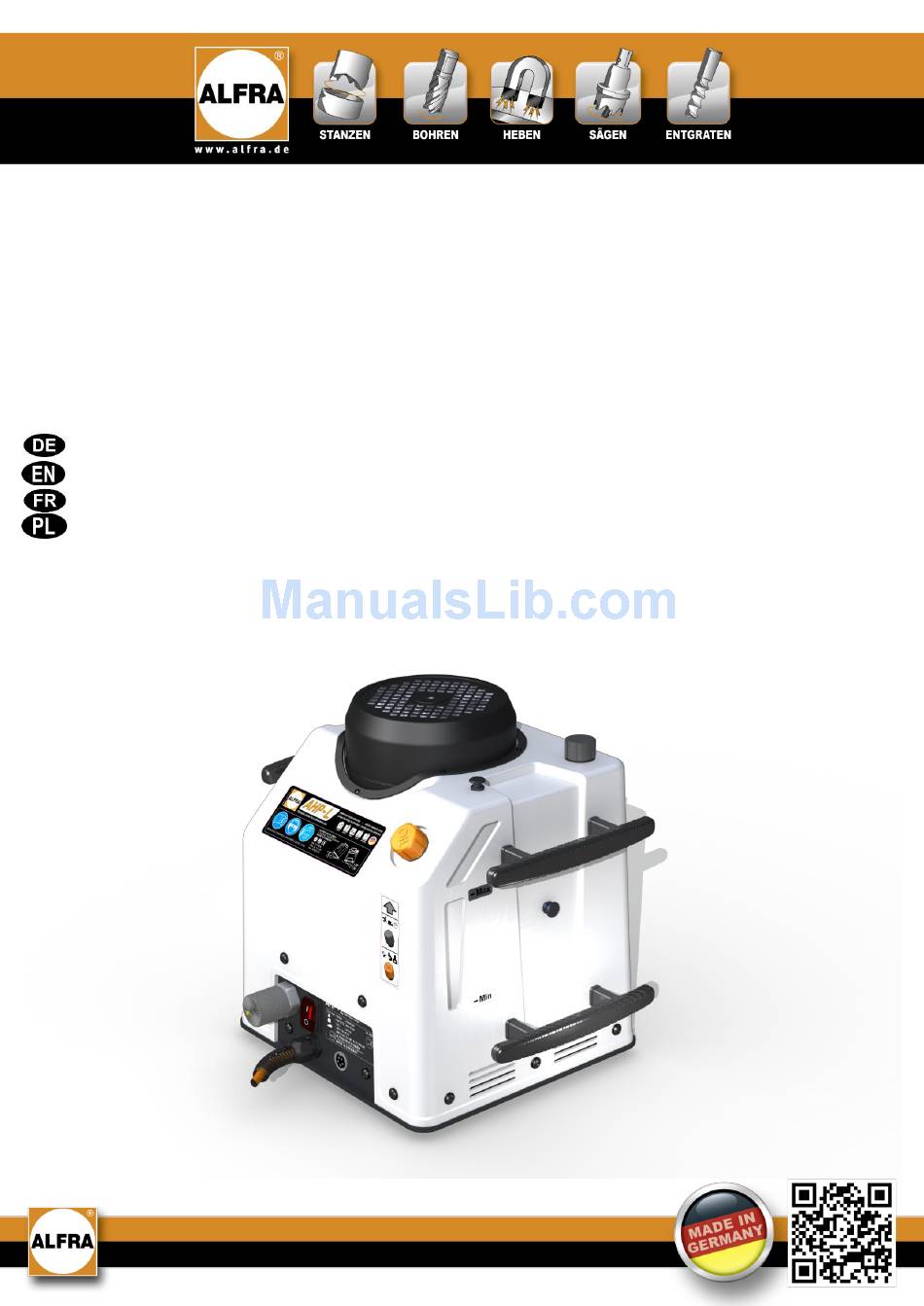

- Page 1 Bedienungsanleitung / Operation manual / Mode d‘emploi / Instrukcja obsługi - tłumaczenie ALFRA Hydraulikpumpe AHP-L Elektrische Hydraulikpumpe Electric Hydraulic Pump Pompe hydraulique électrique Elekrohydrauliczna pompa Art.-Nr. 23190 / Prod.-No. 23190 / N° de produit 23190 / Artykuł nr. 23190...
-
Page 2: Safety Instructions
Specified Conditions of Use The ALFRA AHP-L hydraulic pump is a single-acting radial piston pump and is destined to be used for single-acting hydraulic tools with automatic oil return and sufficient pressure stability. -
Page 3: Technical Data
Noise emission: 92 dB(A) @ 300 mm distance from the motor Vibration on the handle: AC=3.5 mm/s² and VC=3.2 mm/s AvailableAccessories Prod.-No. Extension hose On request ALFRA Service-Boy transport cart 23160 Hydraulic oil HLP 46 (5 l) 3000... - Page 4 Description The single-acting hydraulic pump ALFRA AHP-L is a radial piston pump equipped with a high performance electric motor (1) and achieves optimum delivery volume with three pump elements. Two stable carrying handles (2) can be found on both sides of the pump around which the electric feed lines can be wound if necessary.
- Page 5 Start-up You receive a completely assembled hydraulic pump and a detailed operating manual. Please check the condition of the goods on receipt for any transport damage, and make sure the delivery is complete. Otherwise contact the manufacturer or distributor immediately. Always read the operating manual before using this device for the first time! 1.
-
Page 6: Oil Change
Positioningthe Pump during Operation The tank of the AHP pump is closed by the ventilation screw and thus is not sealed. To prevent the hydraulic oil inside the tank from leaking or overflowing, the pump must not be used at a sharp slope. When the pump is used frequently, foam can occur on the oil surface which, when the pump is used in a highly sloped position, can flow out of the ventilation screw into the oil tank vent. -
Page 7: Maintenance And Inspection
"Max" if necessary Annually… perform a complete oil change with 3 liters of HPL46 hydraulic oil Only use original ALFRA spare parts. View our detailed spare parts list at the end of this operation manual. -
Page 8: Troubleshooting
Troubleshooting Maintenance, testing and repair work may only be carried out by qualified electricians according to the regulations valid in the respective country. Error Control Cause Repair The main switch does not Check the power supply The mains is not or not Have the electrical light up when the pump is and the mains. - Page 9 Is the tool in its final The capability of the pump Let the tool return to its position? to start against counter- starting position or reduce pressure is limited (appr. the pressure on the tool or Isthe tool under a high 200-300 bar).
- Page 10 EC Declaration of Conformity Herewith we, Alfra GmbH 2. Industriestr. 10 68766 Hockenheim declare that the hydraulic pump ALFRA AHP-L corresponds to the following directives: Machinery Directive: 2006/42/EC Low Voltage Directive: 2006/95/EC Electro-magnetic compatibility (EMC): 2004/108/EC RoHs Directive: 2011/65/EU Following directives or normative documents were applied:...
