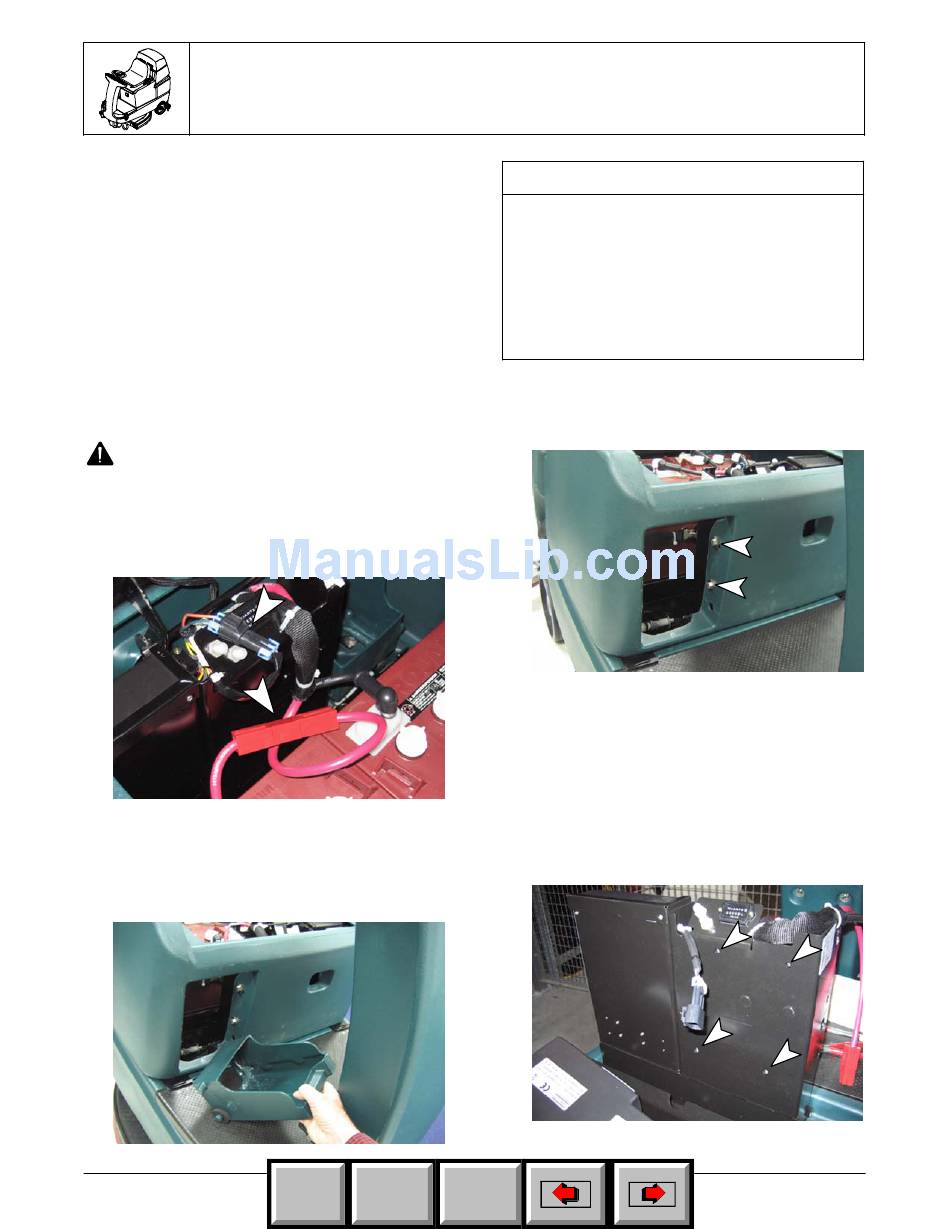

KIT NO. 9001994
Models: T7 / Speed Scrub Rider

INSTALLATION INSTRUCTIONS:

Installation Time: 2.5 Hours
TOOLS REQUIRED: 10mm, 13mm, 3/8", 7/16" &
1/2" Socket Wrenches, 6" Socket Wrench
Extension, 10mm Wrench, Power Drill with 7/32"
and 17/64" Drill Bits, Phillips Screwdriver and
Wire Cutters
1. Park the machine on a clean, level surface.
2. Turn off the machine and remove the key.
3. Unplug the positive battery cable at the red
connector (Figure 1).
WARNING: Electrical Shock Hazard.
Disconnect Battery Cables Before Servicing
Machine.
4. Disconnect the operator seat connector
from the main wire harness and lift the seat
from the machine (Figure 1).
Fig. 1
5. Remove the FaST detergent pack
(if equipped) and remove the FaST deter-
gent holder from the front of the battery
compartment shroud (Figure 2).
Fig. 2
9003027 Rev. 01 (07--07)
ON- -BOARD CHARGER KIT
Tennant Company
Home
Find... Go To..
KIT CONTENTS
P/N
DESCRIPTION
1031491
Charger, 24VDC, 25A, 115VAC
1031180
Bracket, Charger
15678
Screw, Hex, M6 x 1.0 x 16, SS
01684
Washer, Flat, 0.25, SS
08712
Nut, Hex, Lock, M6 x 1.0, SS, NL
230920.BK Hook, Cord
06933
Screw, Pan, M5 x 0.80 x 16
19066
Washer, Flat, #10
06549
Nut, Hex, Lock, M5 x 0.80, NL
130040
Tie, Cable, Nylon
6. Remove the two bolts that secure the
battery compartment shroud and lift the
shroud from the machine (Figure 3).
Fig. 3
7. Disconnect the battery cables, remove the
battery retaining strap, and remove the
batteries from the machine.
8. Note: Move to step #9 if mounting holes
already exist in the actuator support as
shown (Figure 4). Mark and drill (4) 17/64"
charger mounting holes into the actuator
support as shown in Figure 14.
Fig. 4
Customer Service: (800) 553--8033 or (763) 513--2850
Page 1 of 4
QTY.
1
2
4
4
4
2
4
4
4
5
