110V Radio Frequency Remote Control
For the LVC-IV Low Voltage Control Module

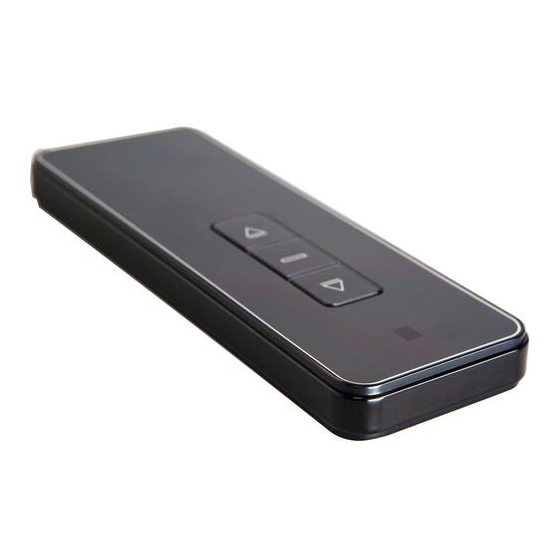

RF Transmitter
Part#: 121226
Operating range is 250 feet (open distance). Each time
the RF signal penetrates a wall, distance will fall off 50%.
Section 1 - Programming Radio Frequency (RF) Remote Control
The LVC-IV comes with built-in Radio Frequency Remote control capability (optional handheld transmitter NOT included).
To "Learn" a remote
1. Press receiver button on LVC-IV (see Fig. 2A).
2. Signal light will flash slowly.
3. Press transmitter's Up button within 10 seconds (see Fig. 2B).
4. Signal light flashes three times quickly.
To "Un-Learn" a remote
1. Press receiver button on LVC-IV (see Fig. 2A).
2. Signal light will flash slowly.
3. Press transmitter's Down button within 10 seconds (see Fig. 2C).
4. Signal light flashes three times quickly.
To "Un-Learn" all remotes
1. Press receiver button on LVC-IV until signal light flashes quickly,
then release.
2. Press receiver button once while signal light is flashing.
3. Signal light will stop flashing.
Please Note: Operating range is 250ft (76 meters) open distance.
RF Signal will degrade significantly with each wall
it is required to penetrate.
If RF signal strength is low, thread RF antenna through
one of the electrical cutouts for improved reception.
Receiver
Button
FUSE - 3.15 AMP
250 VAC 5x20mm
PLEASE NOTE:
1. RF receiver MUST NOT TOUCH METAL OBJECTS!
Maximum Distance of Transmitter will be affected negatively.
2. Disconnect the power supply before installing the RF receiver.
3. Avoid electrostatic interference:
Static electricity will damage the electronic components.
4. Ensure there is > 5' (1.52M) between RF receiver and ground.
5. Ensure there is > 1' (30.5cm) between RF receiver and ceiling.
6. Ensure there is > 1' (30.5cm) between RF receiver and transmitter.
7. Multiple receivers must be spaced > 8" (20cm) apart.

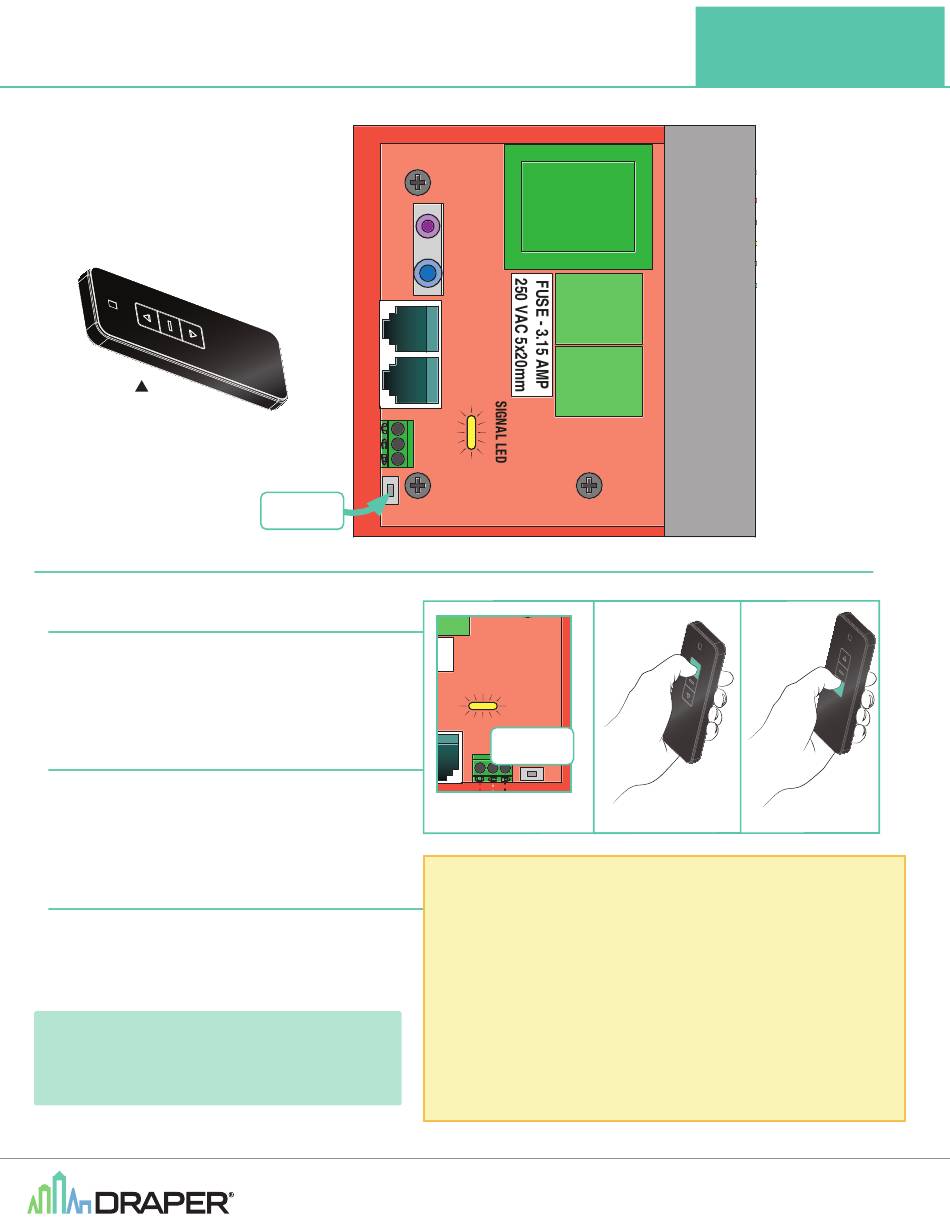

Figure 2
SIGNAL LED
Receiver
Button
.
A
© 2021 All Rights Reserved
WIRING
INSTRUCTIONS
LVC-IV
LVC-IV
B
C
If you encounter any difficulties installing or servicing
your RF Remote, call your dealer or contact Draper, Inc.
Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385
draperinc.com | 765.987.7999 | 800.238.7999
|
FORM: RF_remote_120V_Wiring21
DASHED WIRING BY EL
