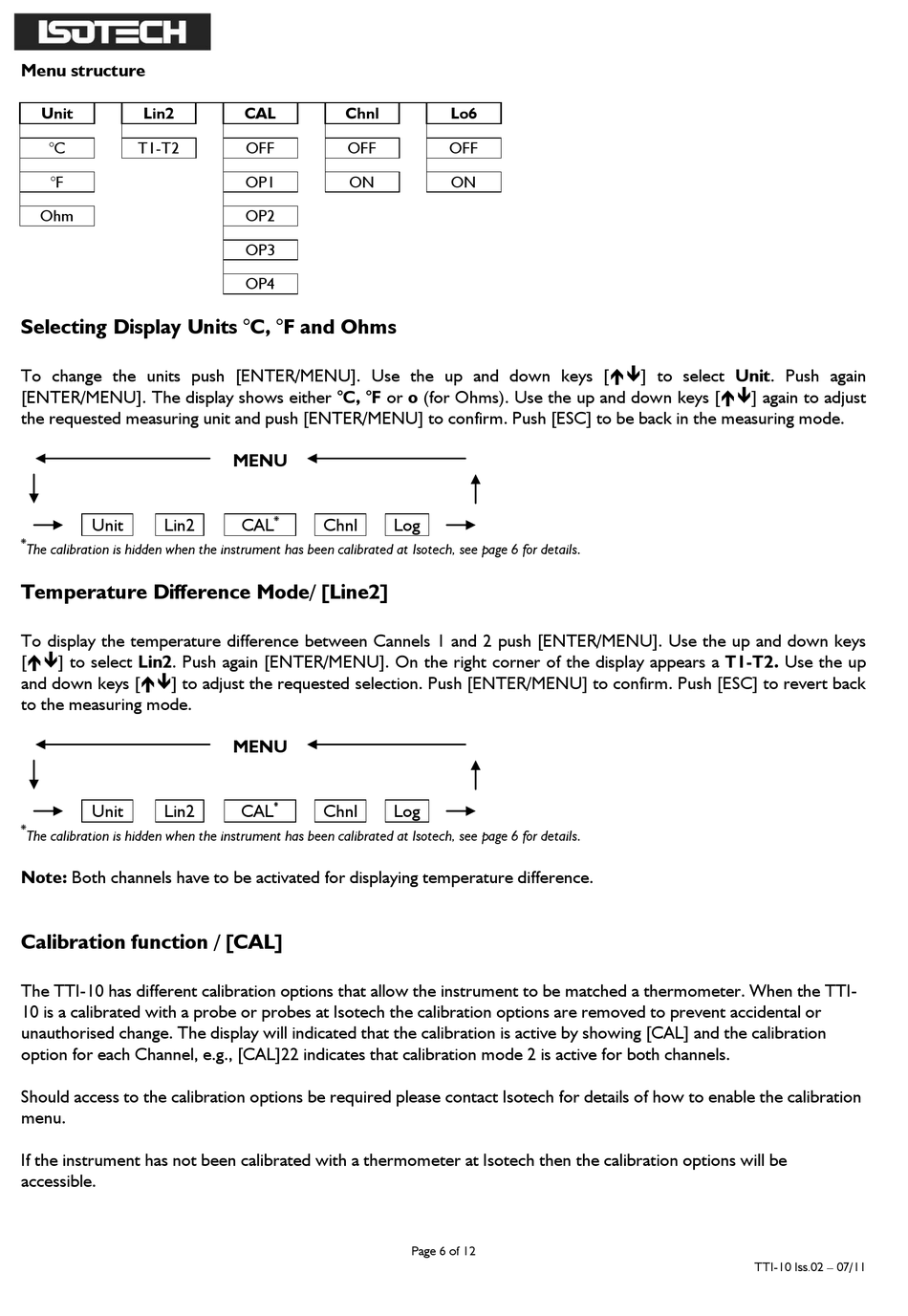

Menu structure
Unit
Lin2
°C
T1-T2
°F
Ohm
Selecting Display Units °C, °F and Ohms
To change the units push [ENTER/MENU]. Use the up and down keys [] to select Unit. Push again
[ENTER/MENU]. The display shows either °C, °F or o (for Ohms). Use the up and down keys [] again to adjust
the requested measuring unit and push [ENTER/MENU] to confirm. Push [ESC] to be back in the measuring mode.
Unit
Lin2
*
The calibration is hidden when the instrument has been calibrated at Isotech, see page 6 for details.
Temperature Difference Mode/ [Line2]
To display the temperature difference between Cannels 1 and 2 push [ENTER/MENU]. Use the up and down keys
[] to select Lin2. Push again [ENTER/MENU]. On the right corner of the display appears a T1-T2. Use the up
and down keys [] to adjust the requested selection. Push [ENTER/MENU] to confirm. Push [ESC] to revert back
to the measuring mode.
Unit
Lin2
*
The calibration is hidden when the instrument has been calibrated at Isotech, see page 6 for details.
Note: Both channels have to be activated for displaying temperature difference.
Calibration function / [CAL]
The TTI-10 has different calibration options that allow the instrument to be matched a thermometer. When the TTI-
10 is a calibrated with a probe or probes at Isotech the calibration options are removed to prevent accidental or
unauthorised change. The display will indicated that the calibration is active by showing [CAL] and the calibration
option for each Channel, e.g., [CAL]22 indicates that calibration mode 2 is active for both channels.
Should access to the calibration options be required please contact Isotech for details of how to enable the calibration
menu.
If the instrument has not been calibrated with a thermometer at Isotech then the calibration options will be
accessible.
CAL
Chnl
OFF
OFF
OP1
ON
OP2
OP3
OP4
MENU
CAL
*
Chnl
Log
MENU
CAL
*
Chnl
Log
Lo6
OFF
ON
Page 6 of 12
TTI-10 Iss.02 – 07/11
